Motorola DS9208 Product Reference Guide

4 - 30 DS9208 Product Reference Guide
Multicode Mode
Parameter # 677
Enable this parameter to allow multiple bar codes to decode upon one trigger event based on the programmed
multicode expression. The digital scanner reports a successful decode and provides user indication only if it
decodes all bar codes indicated by the multicode expression, otherwise the decode fails. Bar codes are
transmitted in the order defined in the multicode expression. Disable this to operate in normal decode mode.
When using this mode, always orient the digital scanner at the same distance and angle (perpendicular).
NOTES Enabling Multicode Mode disables Picklist Mode.
Multicode does not operate in presentation mode.
Do not use Multicode Mode if a trigger is set to Laser Preferred Decoding.
Do not use Multicode Mode if Continuous Bar Code Read is enabled.

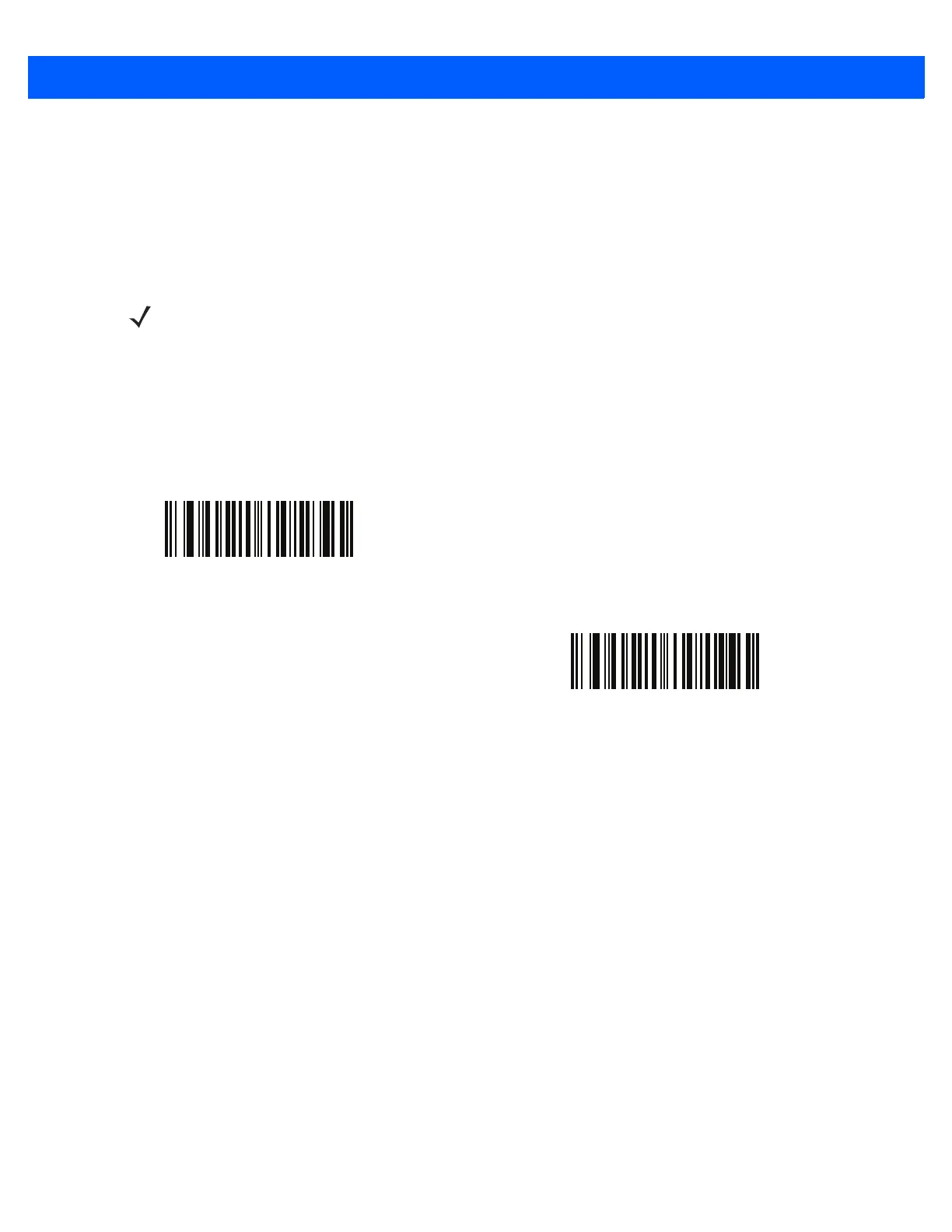

*Disable Multicode Mode
(0)
Enable Multicode Mode
(1)

Motorola DS9208 Specifications

General

Drop Specification	Withstands multiple 5 ft./1.5 m drops to concrete
Scanning Technology	Imager
Tilt Angle	± 65°
Skew Angle	± 60°
Connectivity	USB, RS232, Keyboard Wedge
Decode Capability	1D, 2D and PDF417
Light Source	650nm visible laser diode
Operating Temperature	32° to 104° F/0° to 40° C
Print Contrast	25% minimum reflectance
Pitch Angle	60°
Storage Temperature	-40° to 158° F (-40° to 70° C)
Humidity	5% to 95% relative humidity, non-condensing
Electrical Safety	UL
EMC	FCC Part 15 Class B
Cable Length	6 ft (1.8m)
Power Consumption	2.5 Watts (500mA @ 5V)
Scan Pattern	Omnidirectional
