Motorola DS9208 Product Reference Guide

Symbologies 10 - 25
Coupon Report
Parameter # 730
Traditional coupon symbols (old coupon symbols) are composed of two bar codes: UPC/EAN and Code128. A
new coupon symbol is composed of a single Databar Expanded bar code. The new coupon format offers more
options for purchase values (up to $999.99) and supports complex discount offers such as a second purchase
requirement.
An interim coupon symbol also exists that contains both types of bar codes: UPC/EAN and Databar Expanded.
This format accommodates both retailers that do not recognize or use the additional information included in the
new coupon symbol, as well as those who can process new coupon symbols.

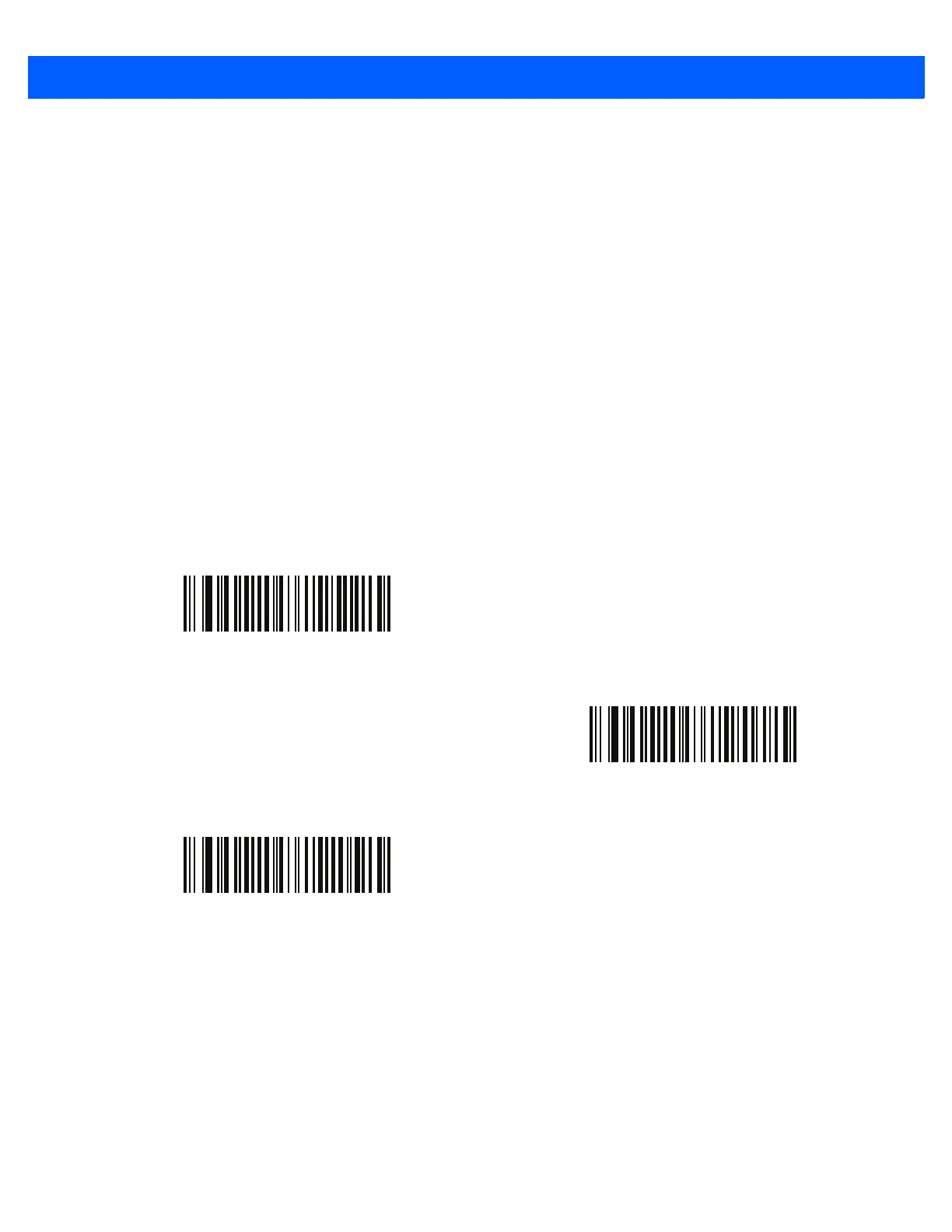

Scan a bar code below to select one of the following options for decoding coupon symbols:
• Old Coupon Symbols - Scanning an old coupon symbol reports both UPC and Code 128, scanning an
interim coupon symbol reports UPC, and scanning a new coupon symbol reports nothing (no decode).
• New Coupon Symbols - Scanning an old coupon symbol reports either UPC or Code 128, and scanning
an interim coupon symbol or a new coupon symbol reports Databar Expanded.
• Both Coupon Formats - Scanning an old coupon symbol reports both UPC and Code 128, and scanning
an interim coupon symbol or a new coupon symbol reports Databar Expanded.
Old Coupon Symbols
(0)
*New Coupon Symbols
(1)
Both Coupon Formats
(2)

Motorola DS9208 Specifications

General

Drop Specification	Withstands multiple 5 ft./1.5 m drops to concrete
Scanning Technology	Imager
Tilt Angle	± 65°
Skew Angle	± 60°
Connectivity	USB, RS232, Keyboard Wedge
Decode Capability	1D, 2D and PDF417
Light Source	650nm visible laser diode
Operating Temperature	32° to 104° F/0° to 40° C
Print Contrast	25% minimum reflectance
Pitch Angle	60°
Storage Temperature	-40° to 158° F (-40° to 70° C)
Humidity	5% to 95% relative humidity, non-condensing
Electrical Safety	UL
EMC	FCC Part 15 Class B
Cable Length	6 ft (1.8m)
Power Consumption	2.5 Watts (500mA @ 5V)
Scan Pattern	Omnidirectional
