1 - 4 DS9208 Product Reference Guide
Mounting the Digital Scanner
Wall Mount Bracket
An optional wall mount bracket is available for mounting the scanner to a wall or other vertical surface. For a
template that facilitates screw placement, see Mounting Templates on page 1-9.
To mount the DS9208:
1. Place the bracket in its desired location on the wall, and insert two #8 screws through each screw hole in
the bracket.

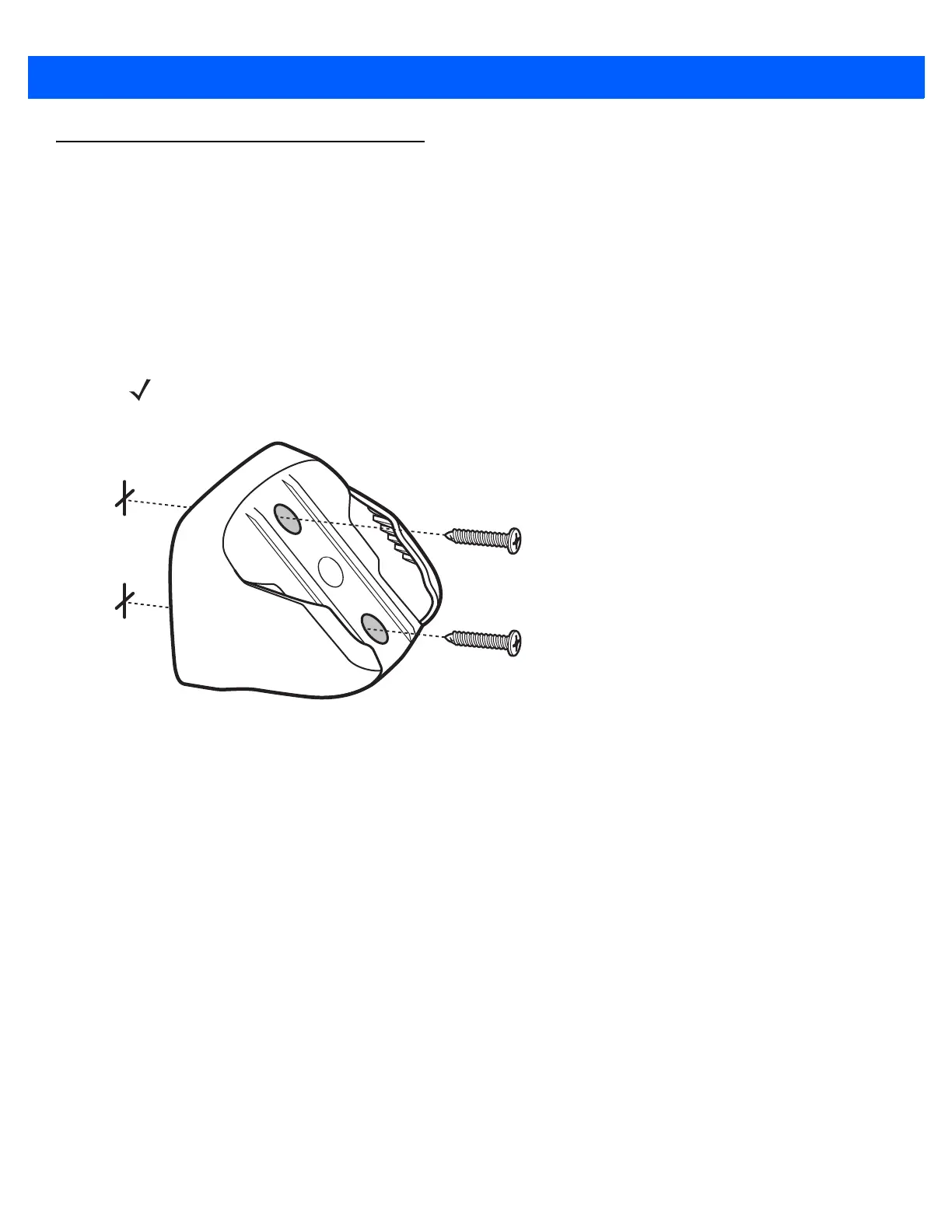

Figure 1-3
Installing the Wall Mount Bracket
2. Tighten the screws to secure the bracket to the wall.
NOTE Select a screw type and length appropriate for the wall material.

Table of Contents

Other manuals for Motorola DS9208

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Motorola DS9208 and is the answer not in the manual?

Motorola DS9208 Specifications

General IconGeneral
Drop SpecificationWithstands multiple 5 ft./1.5 m drops to concrete
Scanning TechnologyImager
Tilt Angle± 65°
Skew Angle± 60°
ConnectivityUSB, RS232, Keyboard Wedge
Decode Capability1D, 2D and PDF417
Light Source650nm visible laser diode
Operating Temperature32° to 104° F/0° to 40° C
Print Contrast25% minimum reflectance
Pitch Angle60°
Storage Temperature-40° to 158° F (-40° to 70° C)
Humidity5% to 95% relative humidity, non-condensing
Electrical SafetyUL
EMCFCC Part 15 Class B
Cable Length6 ft (1.8m)
Power Consumption2.5 Watts (500mA @ 5V)
Scan PatternOmnidirectional
