Motorola DS9208 Product Reference Guide

1 - 6 DS9208 Product Reference Guide
Locking Mount Bracket
An optional locking mount bracket is available for "locking" the scanner into position on a horizontal (or vertical)
surface. This option is recommended for applications where it is desirable to affix the scanner to a counter or
desktop. For a template that facilitates screw placement, see Mounting Templates on page 1-9.
To mount the DS9208:
1. Place the bracket in its desired location on the counter or desktop. Make sure that the indicator on the
bracket is consistent with the direction that the scanner will face. Insert four #8 screws through each screw
hole in the bracket.

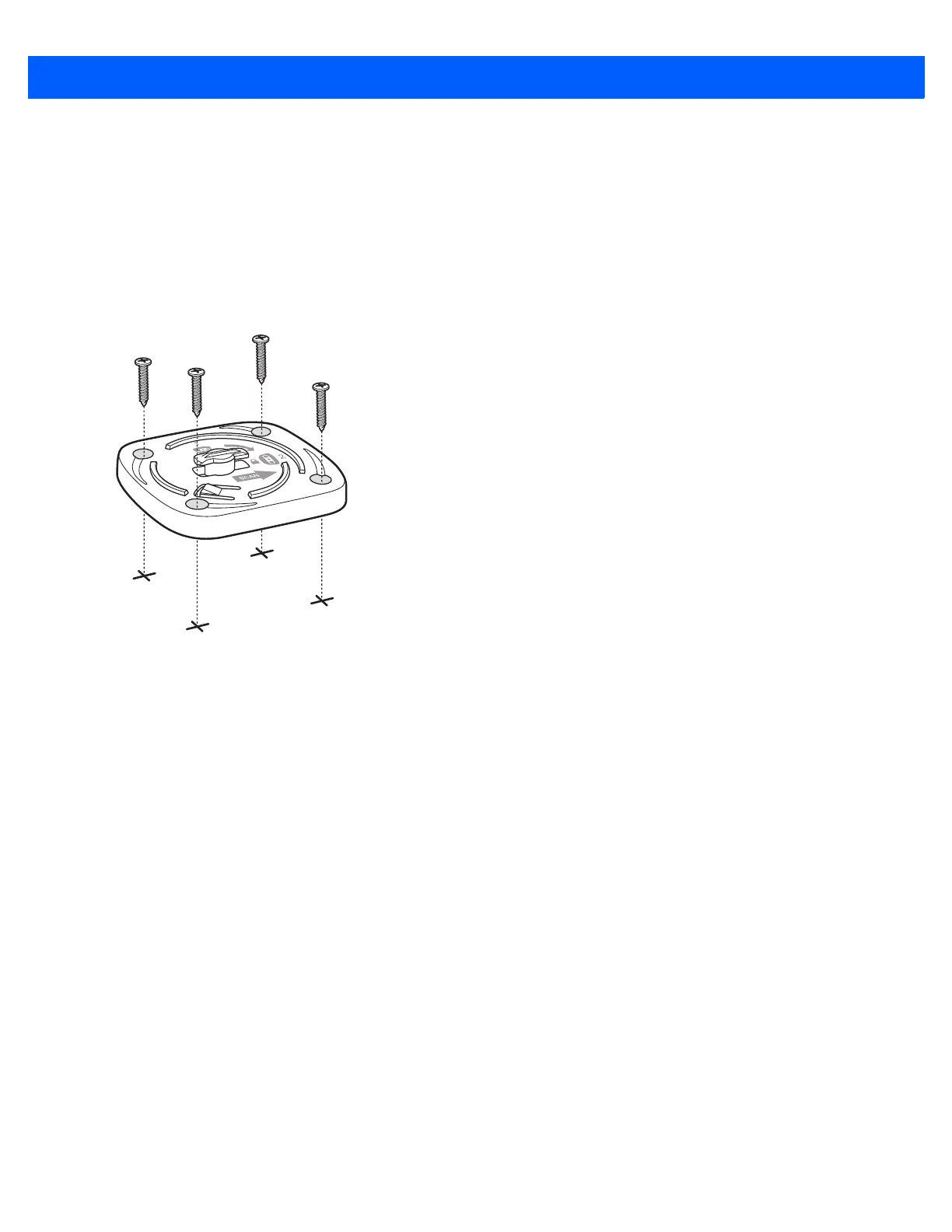

Figure 1-5 Figure 1-4 Installing the Locking Mount Bracket
2. Tighten the screws to secure the bracket to the counter or desktop.

Motorola DS9208 Specifications

General

Drop Specification	Withstands multiple 5 ft./1.5 m drops to concrete
Scanning Technology	Imager
Tilt Angle	± 65°
Skew Angle	± 60°
Connectivity	USB, RS232, Keyboard Wedge
Decode Capability	1D, 2D and PDF417
Light Source	650nm visible laser diode
Operating Temperature	32° to 104° F/0° to 40° C
Print Contrast	25% minimum reflectance
Pitch Angle	60°
Storage Temperature	-40° to 158° F (-40° to 70° C)
Humidity	5% to 95% relative humidity, non-condensing
Electrical Safety	UL
EMC	FCC Part 15 Class B
Cable Length	6 ft (1.8m)
Power Consumption	2.5 Watts (500mA @ 5V)
Scan Pattern	Omnidirectional
