Motorola DS9208 Product Reference Guide

User Preferences & Miscellaneous Options 4 - 43
FN1 Substitution Values
Key Category Parameter # 103
Decimal Value Parameter # 109
The wedge and USB HID keyboard hosts support a FN1 Substitution feature. Enabling this substitutes any
FN1 character (0x1b) in an EAN128 bar code with a value. This value defaults to 7013 (Enter key).
When using host commands to set the FN1 substitution value, set the key category parameter to 1, then set
the 3-digit keystroke value. See the ASCII character set table for the current host interface for the desired
value.
To select a FN1 substitution value via bar code menus:
1. Scan the bar code below.
2. Locate the keystroke desired for FN1 substitution in the ASCII character set table in the appropriate host
interface chapter. Enter the 4-digit ASCII value by scanning each digit in Appendix G, Numeric Bar Codes.
To correct an error or change the selection, scan Cancel on page G-2.
See USB Keyboard FN 1 Substitution on page 6-12 to enable FN1 substitution for the USB HID keyboard.

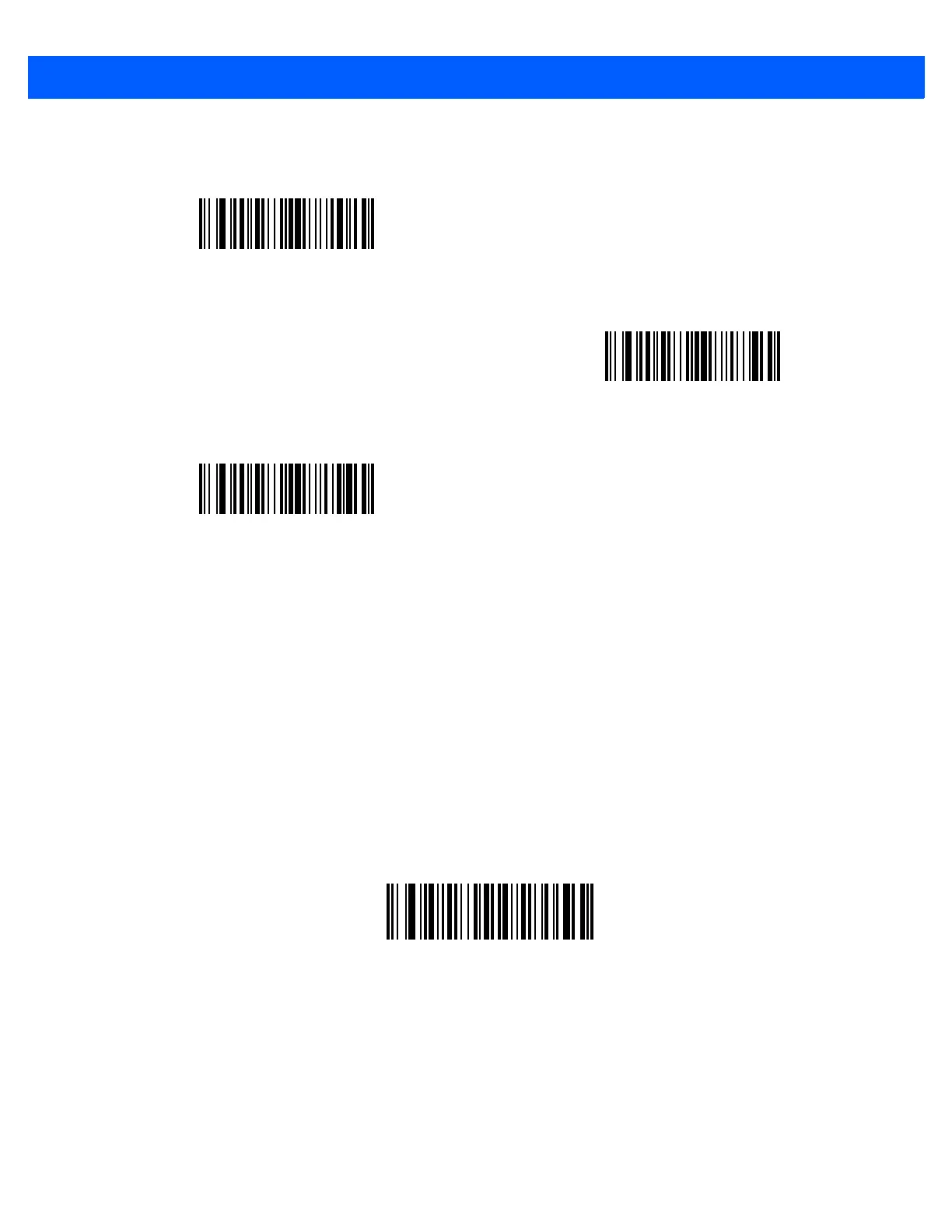

Scan Data Transmission Format (continued)
<PREFIX> <DATA> <SUFFIX 1>
(5)
<PREFIX> <DATA> <SUFFIX 2>
(6)
<PREFIX> <DATA> <SUFFIX 1> <SUFFIX 2>
(7)
Set FN1 Substitution Value

Motorola DS9208 Specifications

General

Drop Specification	Withstands multiple 5 ft./1.5 m drops to concrete
Scanning Technology	Imager
Tilt Angle	± 65°
Skew Angle	± 60°
Connectivity	USB, RS232, Keyboard Wedge
Decode Capability	1D, 2D and PDF417
Light Source	650nm visible laser diode
Operating Temperature	32° to 104° F/0° to 40° C
Print Contrast	25% minimum reflectance
Pitch Angle	60°
Storage Temperature	-40° to 158° F (-40° to 70° C)
Humidity	5% to 95% relative humidity, non-condensing
Electrical Safety	UL
EMC	FCC Part 15 Class B
Cable Length	6 ft (1.8m)
Power Consumption	2.5 Watts (500mA @ 5V)
Scan Pattern	Omnidirectional
