Motorola DS9208 - Codabar (NW - 7); Enable;Disable Codabar

Motorola DS9208

440 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

Symbologies 10 - 57

Codabar (NW - 7)

Enable/Disable Codabar

Parameter # 7

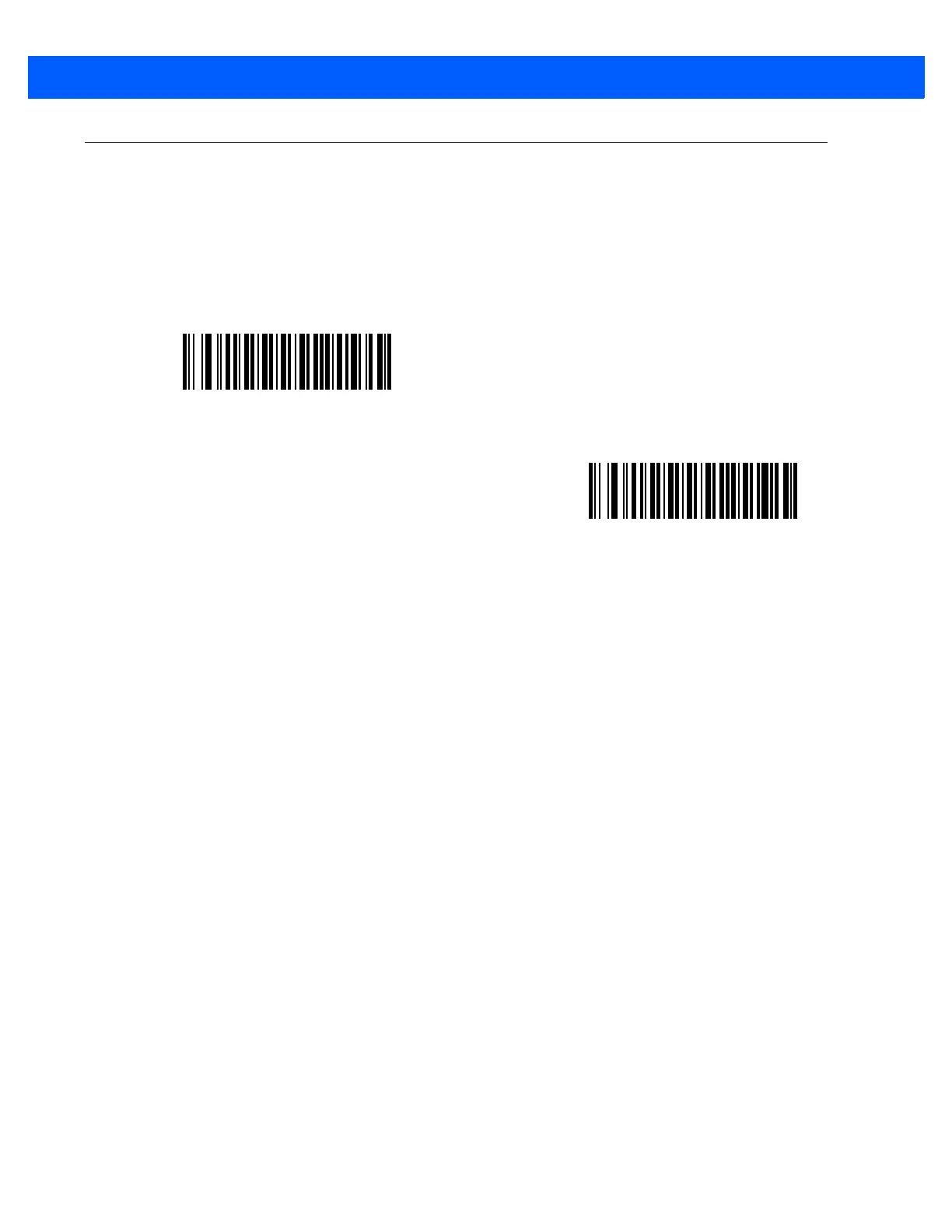

To enable or disable Codabar, scan the appropriate bar code below.

Enable Codabar

(1)

*Disable Codabar

(0)
