9 - 2 DS9208 Product Reference Guide
Connecting a Keyboard Wedge Interface

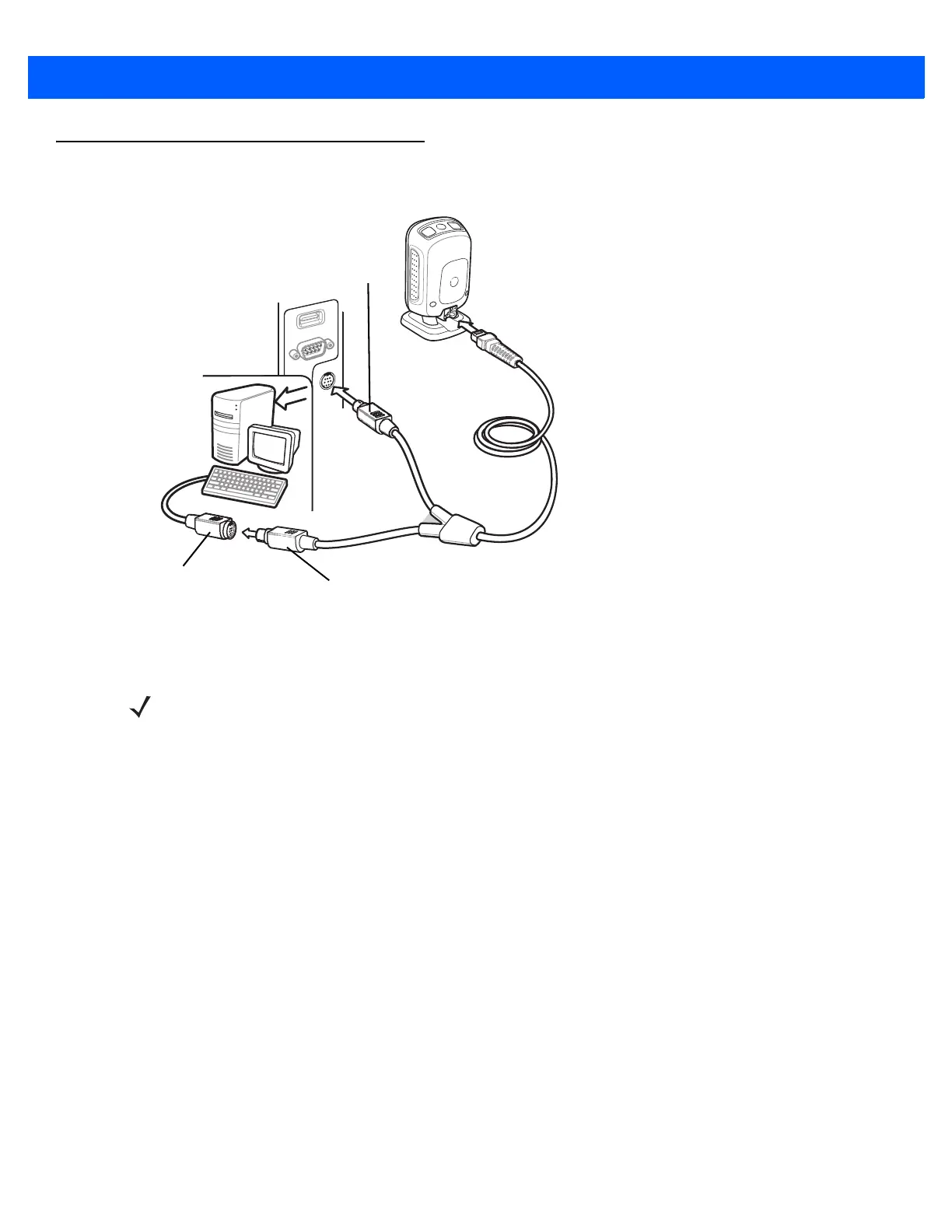

Figure 9-1
Keyboard Wedge Connection with Y-cable
To connect the Keyboard Wedge interface Y-cable:
1. Turn off the host and unplug the keyboard connector.
2. Attach the modular connector of the Y-cable to the cable interface port on the digital scanner. See Installing
the Interface Cable on page 1-3.
3. Connect the round male DIN host connector of the Y-cable to the keyboard port on the host device.
4. Connect the round female DIN keyboard connector of the Y-cable to the keyboard connector.
5. If needed, attach the optional power supply to the connector in the middle of the Y-cable.
6. Ensure that all connections are secure.
7. Turn on the host system.
8. Select the Keyboard Wedge host type by scanning the appropriate bar code from Keyboard Wedge Host
Types on page 9-4.
9. To modify any other parameter options, scan the appropriate bar codes in this chapter.
Male DIN Connector
Female DIN ConnectorKeyboard Connector
NOTE Interface cables vary depending on configuration. The connectors illustrated in Figure 9-1 are examples
only. The connectors may be different than those illustrated, but the steps to connect the digital scanner
are the same.

Table of Contents

Other manuals for Motorola DS9208

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Motorola DS9208 and is the answer not in the manual?

Motorola DS9208 Specifications

General IconGeneral
Drop SpecificationWithstands multiple 5 ft./1.5 m drops to concrete
Scanning TechnologyImager
Tilt Angle± 65°
Skew Angle± 60°
ConnectivityUSB, RS232, Keyboard Wedge
Decode Capability1D, 2D and PDF417
Light Source650nm visible laser diode
Operating Temperature32° to 104° F/0° to 40° C
Print Contrast25% minimum reflectance
Pitch Angle60°
Storage Temperature-40° to 158° F (-40° to 70° C)
Humidity5% to 95% relative humidity, non-condensing
Electrical SafetyUL
EMCFCC Part 15 Class B
Cable Length6 ft (1.8m)
Power Consumption2.5 Watts (500mA @ 5V)
Scan PatternOmnidirectional
