9.1.6.4 Fault - Extraction status menu
The extraction status menu also indicates the fault. There may be a problem within the oil itself (debris
or dirt) or in the air hose system (leak) that is not identifiable as oil contamination in the unit or the
device’s protective hood. The red mark in the following figure highlights the area where the fault mes-
sages are displayed in the event of a fault.

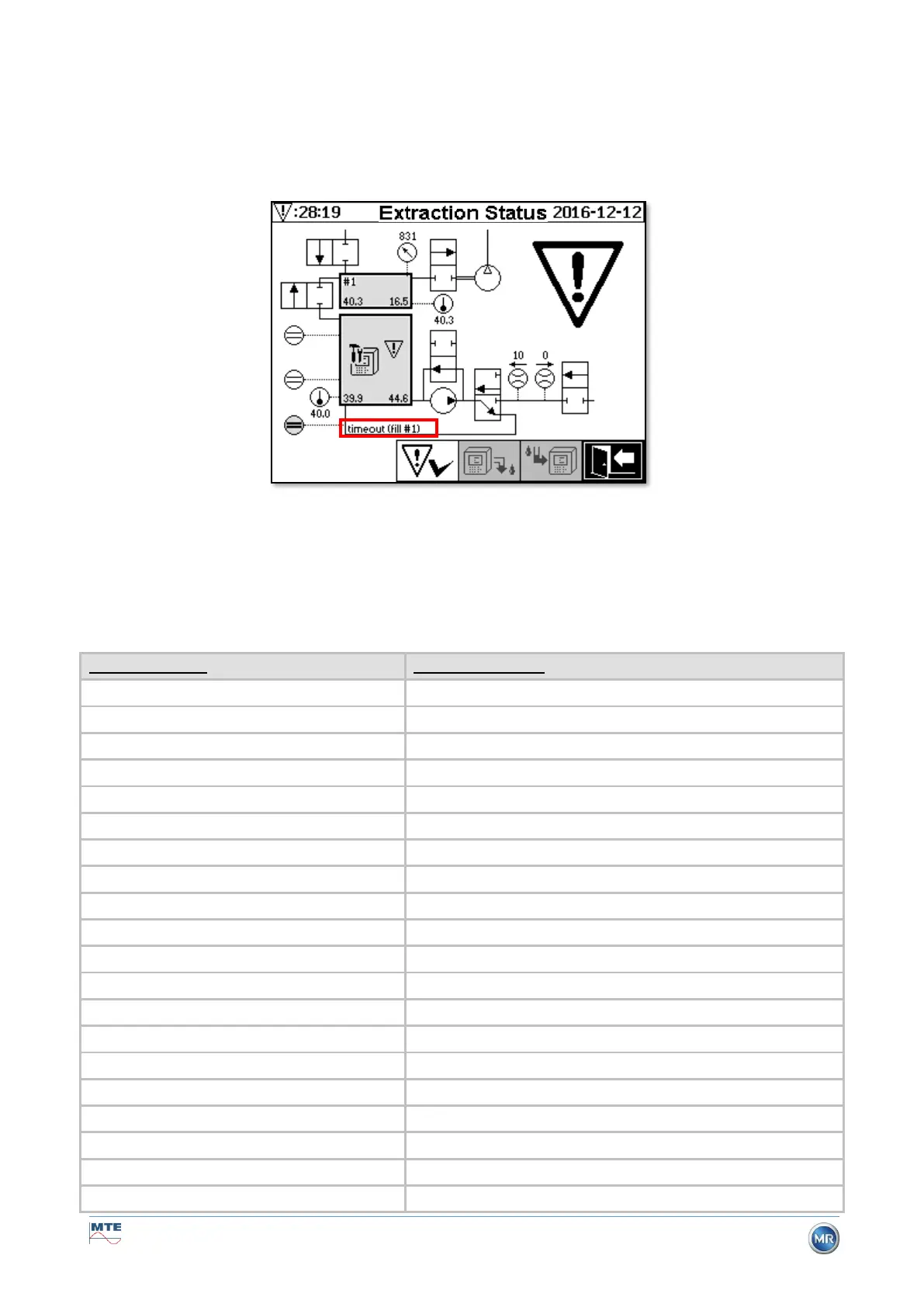

Extraction status menu with fault message
The area designated for the fault message is too small to display the possible cause of the fault in text
form. The fault message is shown in short form. The following table reveals the possible reasons for
the occurrence of a fault. Given that numerous components are involved in the extraction cycle, an
analysis of the fault cycle's cache data for the purpose of fault detection is inevitable.
Fault message
Possible reason
fill sensor x short
Hardware failure
fill sensor x open
Hardware failure
fill level cascade
Hardware failure
fill level x bad
Hardware failure
flow stuck
Pump P1, oil hoses, valves, flow measurement
flow leak
Oil hoses and valves
m-chamber offline
Measurement cell hardware fault
no depression (drain/flush)
Air hoses, valves and compressor
level timeout (drain/flush)
Whole system
depress. timeout (fill)
All hoses, valves and compressor
depress. pressure stuck (fill)
All hoses and compressors
depress. timeout (circ)
All hoses, valves and compressor
depress. pressure stuck (circ)
All hoses, valves and compressor
depress. lost (circ)
All hoses and valves
depress. change
All hoses and valves
no pressure rise (fill #x)
All hoses and valves
timeout (fill #x)
All hoses and valves
detect overall timeout
All hoses and valves
detect amb. pres. timeout
Air hoses, valves and measurement cell
detect depres. pres. stuck
Air hoses and valves
