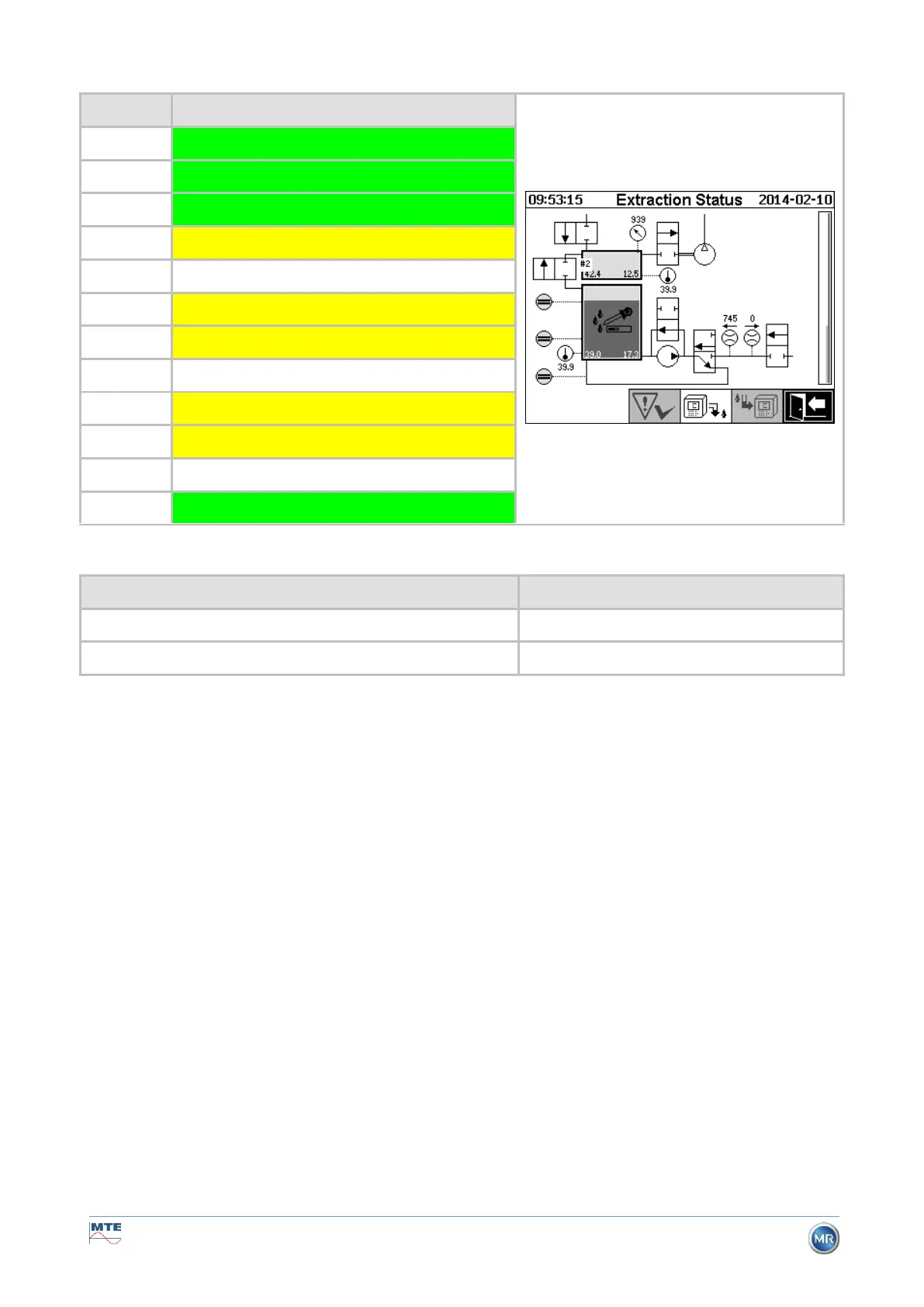

6.2.7 Gas measurement
In this process step, the gas contents of the air in the measurement cell are measured.
Legend
Condition of components
[1]
Filling level L0 “reached”
[2]
Filling level L1 “reached”
[3]
Filling level L2 “reached”
[4]
Valve V9 “closed”
[5]
Flow F1 “not available”
[6]
Valve V1 “degassing”
[7]
Valve V3/ V7 “closed”
[8]
Compressor K1 "standstill”
[9]
Valve V4/ V8 “closed”
[10]
Valve V2 “closed”
[11]
Pump P1 "standstill”
[12]
Valve V5 “open”
Safety functions and fault detection Gas measurement
Monitored components
Detectable errors
Filling sensors zero acknowledgement, low and high
Filling level L0, L1 or L2 reached
Measurement cell
Measurement cell offline
