• Optional: RS232 communication interface (internal RS232 or USB to RS232 adapter)
9.1.7.3 Sequence diagnostics – Data read
To read out service data using the MSET DGA Service Tool, proceed as follows.
9.1.7.3.1 Connection and start
The device from the MSENSE® DGA family must be connected to the network interface via a network
cable or via a serial cable to the PC’s free COM interface. Next, the MSET DGA Service Tool will be
opened via the start file:
MSENSE DGA Service Tool.exe
9.1.7.3.2 Interface selection
MSENSE® DGA devices can be connected via an Ethernet or serial interface. The key in the upper
left corner serves as a toggle switch for the following two interface selections:
• If Ethernet is enabled, the IP Address: and Port Number: must be entered.
• The IP address depends on the network settings (fixed IP address / DHCP).
• The port number is determined by the MSENSE® DGA Ethernet device settings.

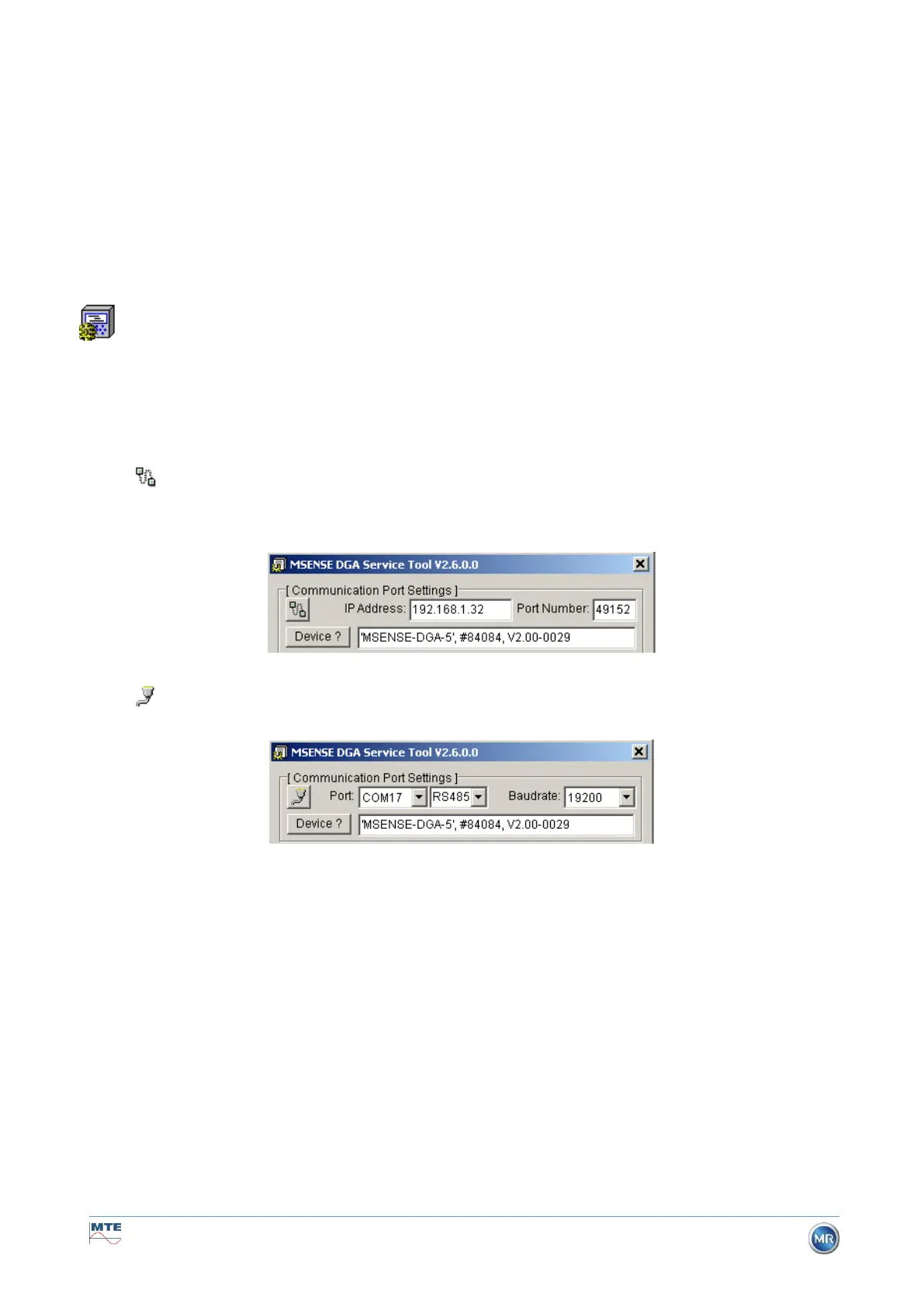

Figure: Ethernet interface selection
• If a serial connection is enabled, the COM Port and Baud Rate are set via the corresponding
selection fields.
Figure: Serial interface selection (COM Port)
9.1.7.3.3 Device detection
Before you can work with the connected device, the device must be first be detected.
The following screenshots show the connection setup via a serial connection. Establishing an Ethernet
connection follows a similar path.
In order to start the device detection process, the PC COM Port (Communication Port Settings) – to
which the device is connected – must be selected.
Remark: The standard baud rate of 19200 must only be changed if a different baud rate has been set
on the device.
When the Device? key is pressed, the detection cycle starts.
• Select COM Port and Baud Rate
