6.10.3.1 Create new alarm

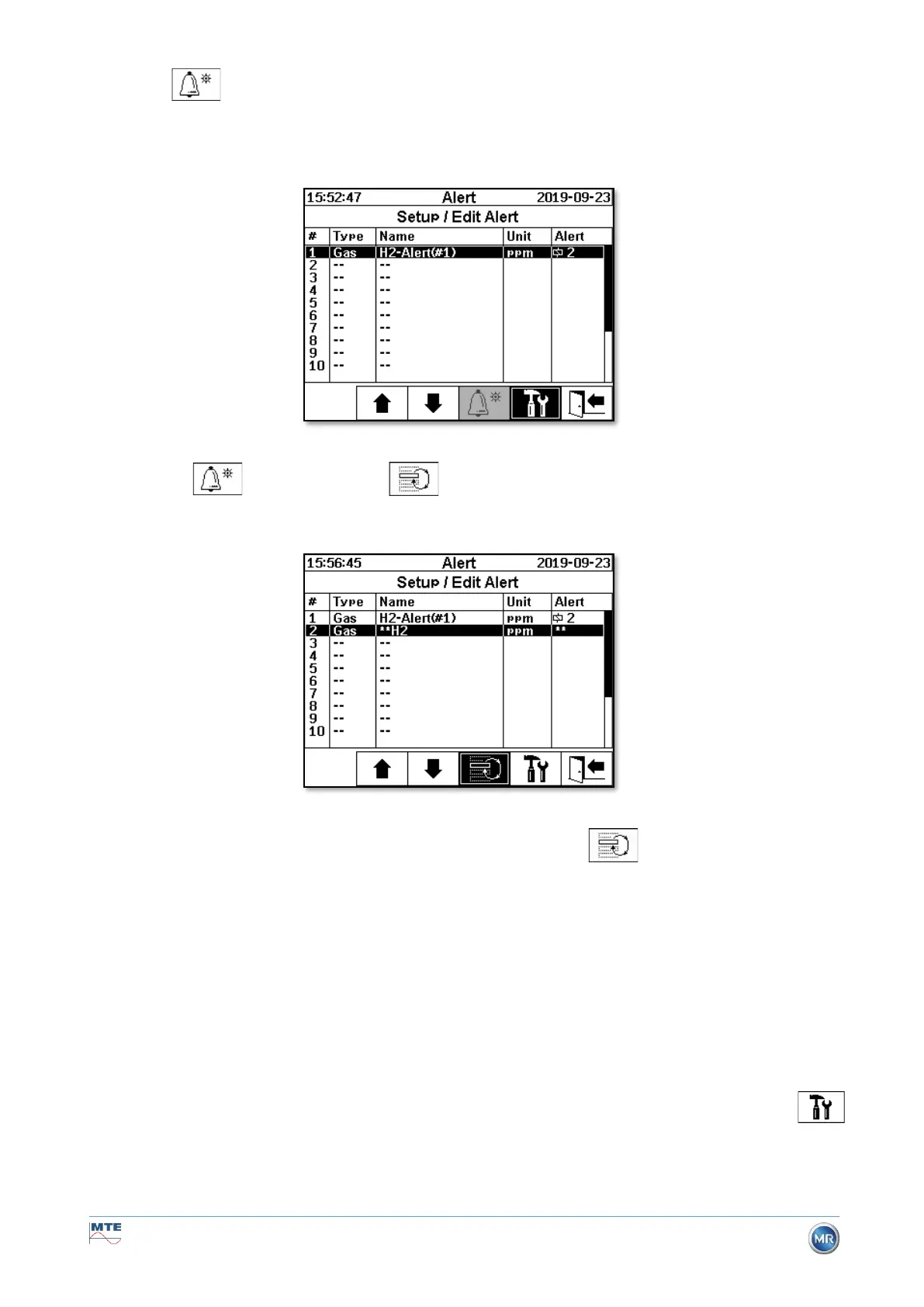

To create a new alarm, use the arrow keys to select the desired free alarm number:
As soon as the key is pressed, the key appears in its place and the desired measurement
variable can be selected by pressing it several times.
The following measurement variables are available by pressing the key several times:
• Gas H
2
- C
2
H
2
- C
2
H
4
- CO - CO
2
- C
2
H
6
- CH
4
- O
2
concentration
• -- TDCG concentration
• Temp. T1 (ϑ1 gas temperature measurement cell)
T2 (ϑ2 oil temperature extraction chamber)
• Hum. Moisture in oil H
2
O– concentration
• Trend H
2
O Daily trend
• Trend H
2
- C
2
H
2
- C
2
H
4
- CO - CO
2
- C
2
H
6
- CH
4
– O
2
Daily trend
• Trend H
2
- C
2
H
2
- C
2
H
4
- CO - CO
2
- C
2
H
6
- CH
4
– O
2
Weekly trend
Once you have selected the desired measurement variable, use the arrow key to switch to the
key.
