5. Hardware components

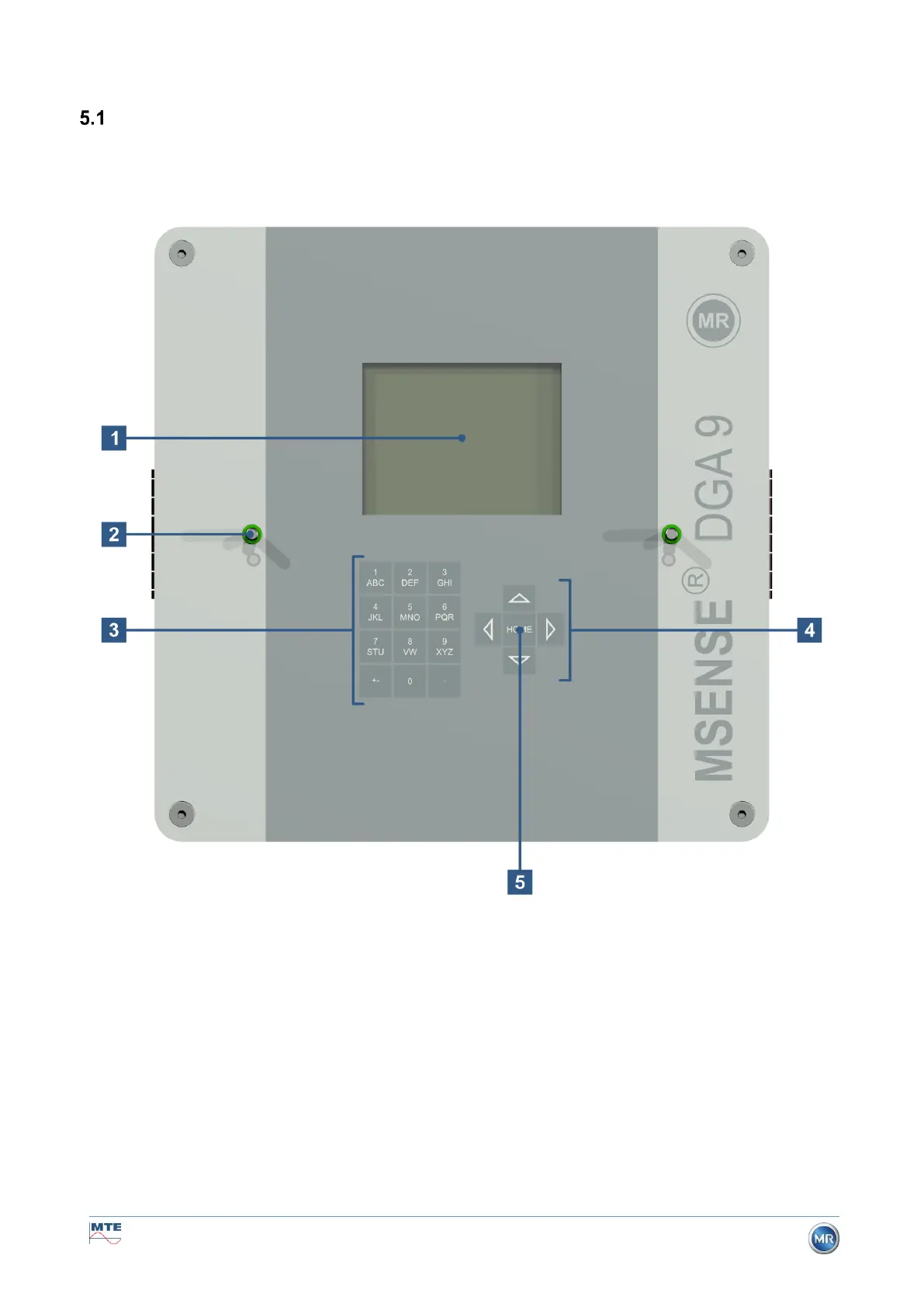

Internal front view with controls
After removing the housing's protective hood, the inner front section and its operating elements become
visible. This comprises the following components:
[1]
LCD-Display with 320 x 240 pixels
[2]
Threaded bolt for the attachment of the device protective cap
[3]
Alphanumeric keypad for entering numbers and text
[4]
Arrow keys for navigation in menus and data entry
[5]
Enter key to activate and confirm functions and data entry
