4.4.2 Electrical connection
Note!
There must be a 10A overcurrent protective device available
in the installation
Note!
A disconnecting device must be available for the device, easy to reach
for the user and identifiable as a disconnecting device for this device.
Use reinforced pipes as protection for all cables and connect these to the respective connections in
the device. All the cables must be provided by the customer.

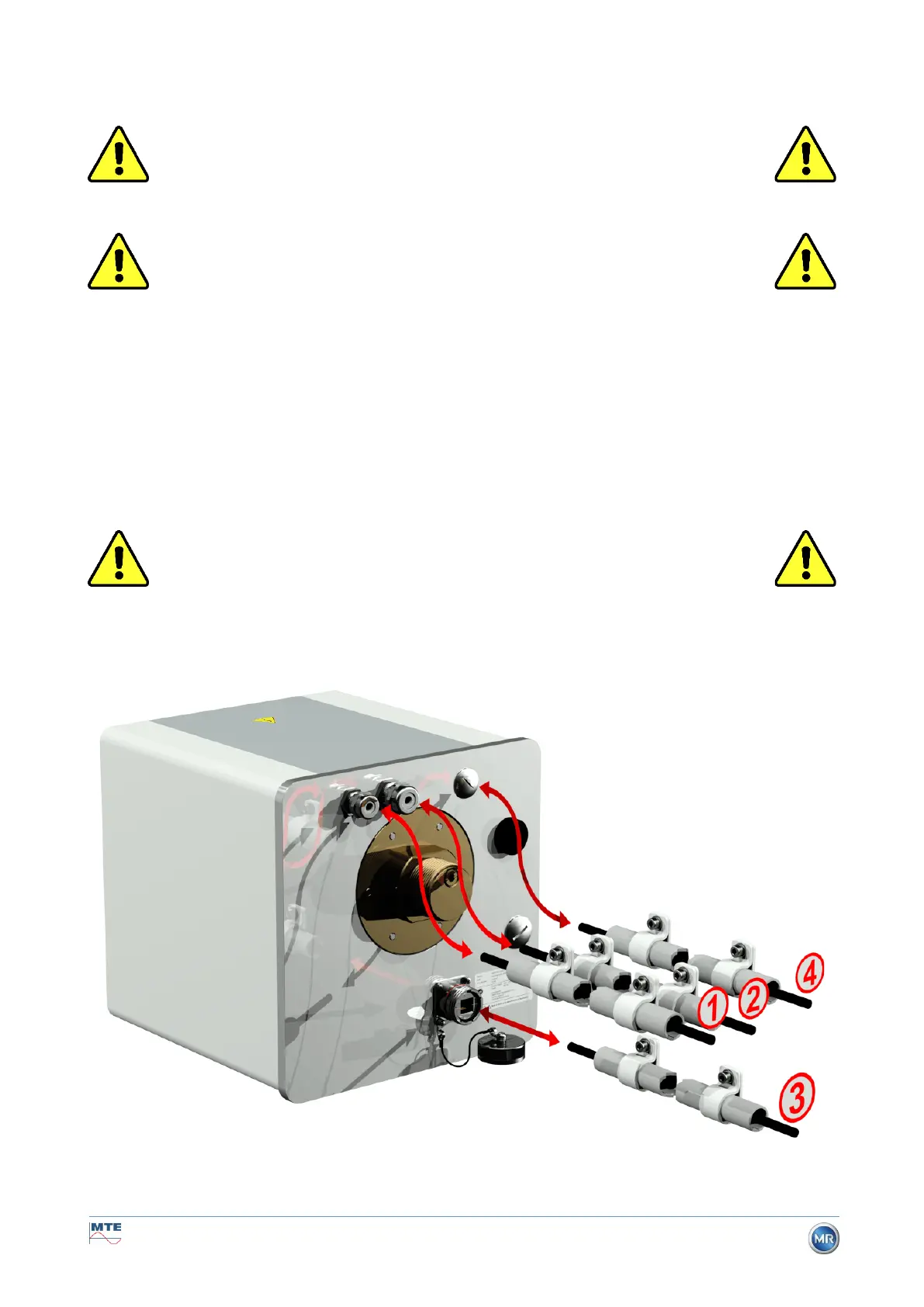

The following versions are available for the electrical connections:
1 x M16 SKINTOP
®
threaded joint (clamping range 4.5 ... 10.0 mm
2 x M20 SKINTOP
®
threaded joint (clamping range 7.0 ... 13.0 mm
1 x M25 SKINTOP
®
threaded joint (clamping range 9.0 ... 17.0 mm)
Note!!!
Where smaller cable diameters are involved, appropriate reducing seal
inserts must be used to guarantee clamping and tightness of the cable
gland!
Remark: The MSENSE
®
DGA 9 is delivered with 2 SKINTOP
®
threaded joints M16 and M20 from the
factory! The four remaining ducts are sealed with blind plugs M20 and M25.
Mains connection:
