MSENSE
®
DGA 9 7045899/02 EN – 11.2020 Page 38
4.4.1.2 Indirect mounting
In the case of indirect mounting, the MSENSE® DGA 9 is fixed in place by screwing the union nut on
the threaded joint. A flat gasket is used as a thread seal here.
Note!!!
Do not remove the protective cap (by turning it slowly) until
you are ready to install the MSENSE
®
DGA 9 at the connecting valve/gate
valve!

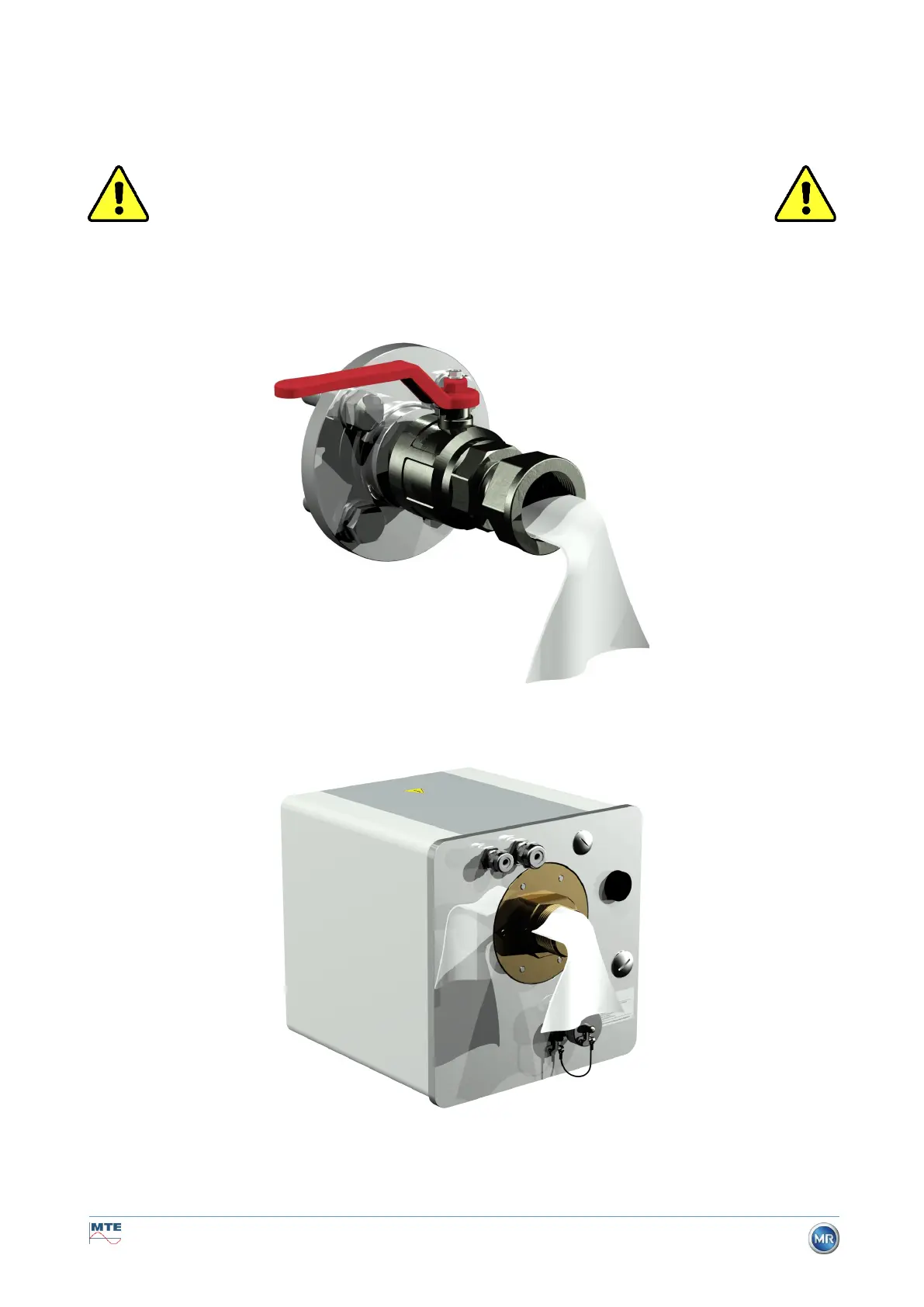

• Use a dry cloth / paper towel to clean the inside of the union nut.
• Use a dry cloth / paper towel to clean the external thread of the connecting unit. Completely
remove any soiling from the external thread with a brass brush.
• Place the MSENSE® DGA 9 horizontally onto the threaded joint. Make sure the device does
not twist.
