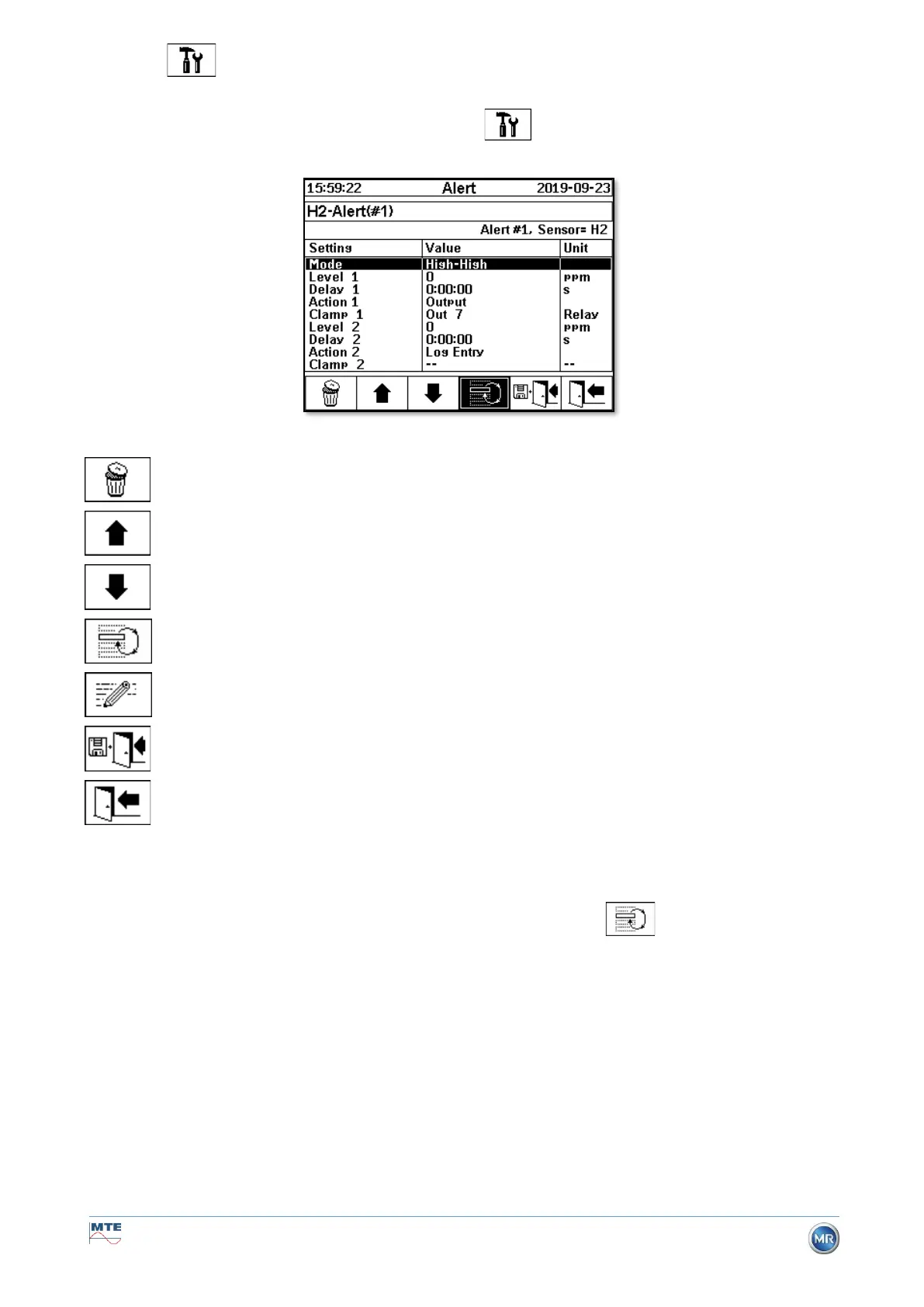

6.10.3.2 Alarm settings
After creating a new alarm and by selecting it with the key, the following functions are available:
Delete alarm
Highlight upwards
Highlight downwards
Switches between the existing selections in the lines:
Mode, action 1/2 and output 1/2 (if an output was selected during the action)
Activates the entry from the alphanumeric keypad for the lines:
Threshold value 1/2 and delay 1/2
Save and exit menu
Exit menu
6.10.3.2.1 Alarm setting – Mode
In the line mode, the following selection can be made by pressing the key:
• High: An alarm is triggered when threshold 1 is exceeded.
• High - High: A two-level alarm is triggered. The first stage of the alarm is triggered after thresh-
old 1 has been exceeded, while the second stage is triggered when threshold 2 has been ex-
ceeded.
• Low: An alarm is triggered when threshold 1 is undershot.
• Low - low: A two-level alarm is triggered. The first stage of the alarm is triggered after threshold
1 has been undershot, while the second stage is triggered when threshold 2 has been under-
shot.
• Low - High: A two-level alarm is triggered if the measured value is outside the range. The first
stage of the alarm is triggered after threshold 1 has been undershot, while the second stage is
triggered when threshold 2 has been exceeded.
