6.10.3.2.2 Alarm settings – Threshold
The alarm settings can be edited using the key, the arrow keys and the alphanumeric keypad.
The unit is defined by the measurement variable:
• ppm Gas Gas concentration H
2
- C
2
H
2
- C
2
H
4
- CO - CO
2
- C
2
H
6
- CH
4
– O
2
• °C Temp. Temperatures T1 - T2
• ppm Moisture in oil Concentration H
2
O
• ppm/d Trend Gas concentration – Daily trend H
2
- C
2
H
2
- C
2
H
4
- CO - CO
2
- C
2
H
6
- CH
4
– O
2
• ppm/w Trend Gas concentration – Weekly trend H
2
- C
2
H
2
- C
2
H
4
- CO - CO
2
- C
2
H
6
- CH
4
–O
2
The alarm limits (threshold 1/2) must be within the respective measurement ranges. These are:
• 0 ... 5,000 ppm Gas concentration CH
4
• 0 ... 10,000 ppm Gas concentration H
2
- C
2
H
2
- C
2
H
4
- CO - C
2
H
6
• 0 ... 20,000 ppm Gas concentration CO
2
• 0 ... 50,000 ppm Gas concentration O
2
• 0 ... 100 ppm Moisture in oil H
2
O
• -20 ... 100 ° C temperature T1, T2
6.10.3.2.3 Alarm settings – Delay
The delays are used to suppress the alarm that has been triggered in situations where the threshold is
briefly exceeded or undershot.
The delay can be entered in seconds or in hours - minutes - seconds. To enter the colon, please use
the "dot" key. After confirming the data using the Enter key, the input value is displayed in the format
[Hours]: [Minutes]: [Seconds].

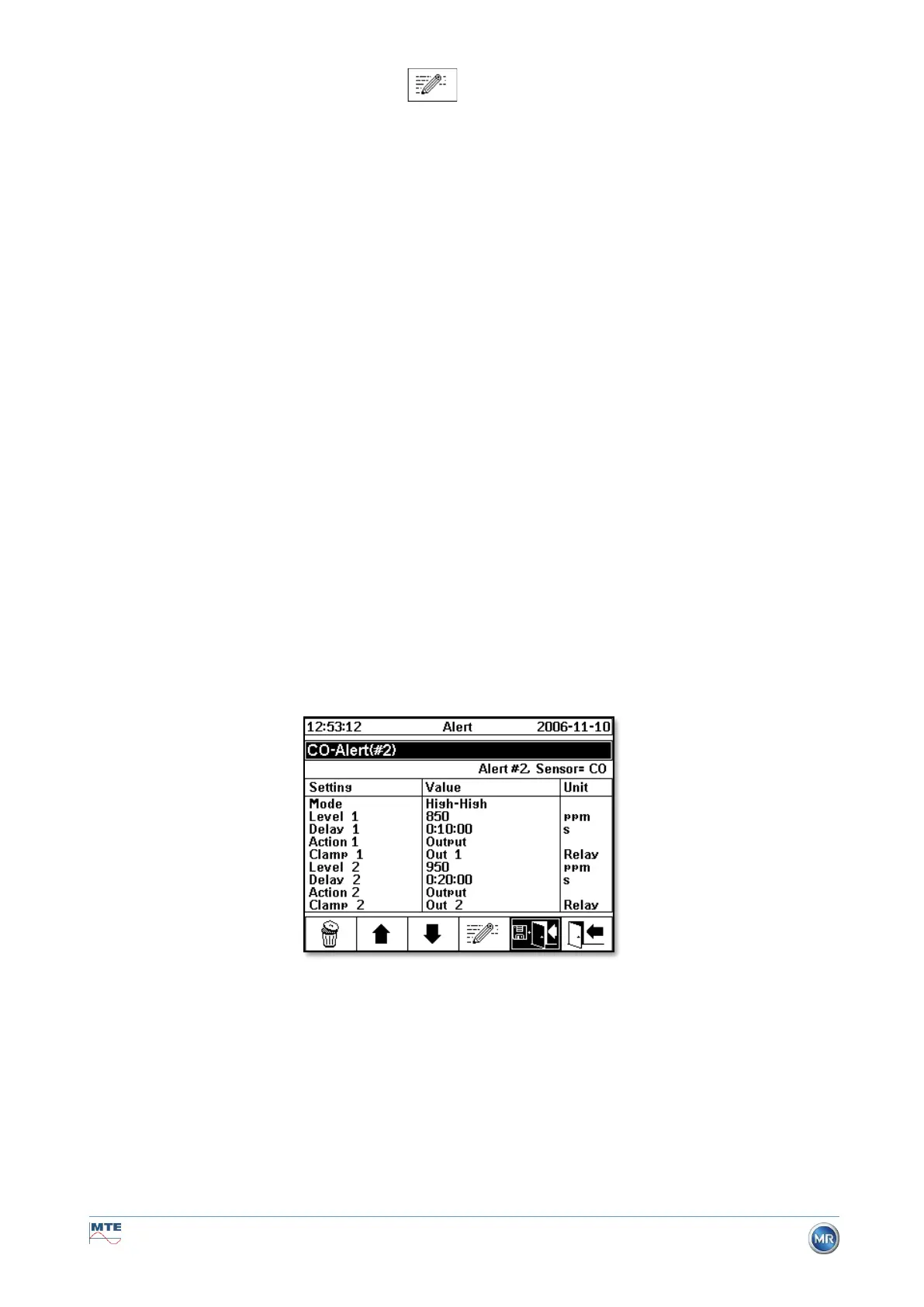

Example: CO alarm is set as follows:
If the threshold is exceeded, the following sequence of events occurs:
