Activate / initialise device under extraction status

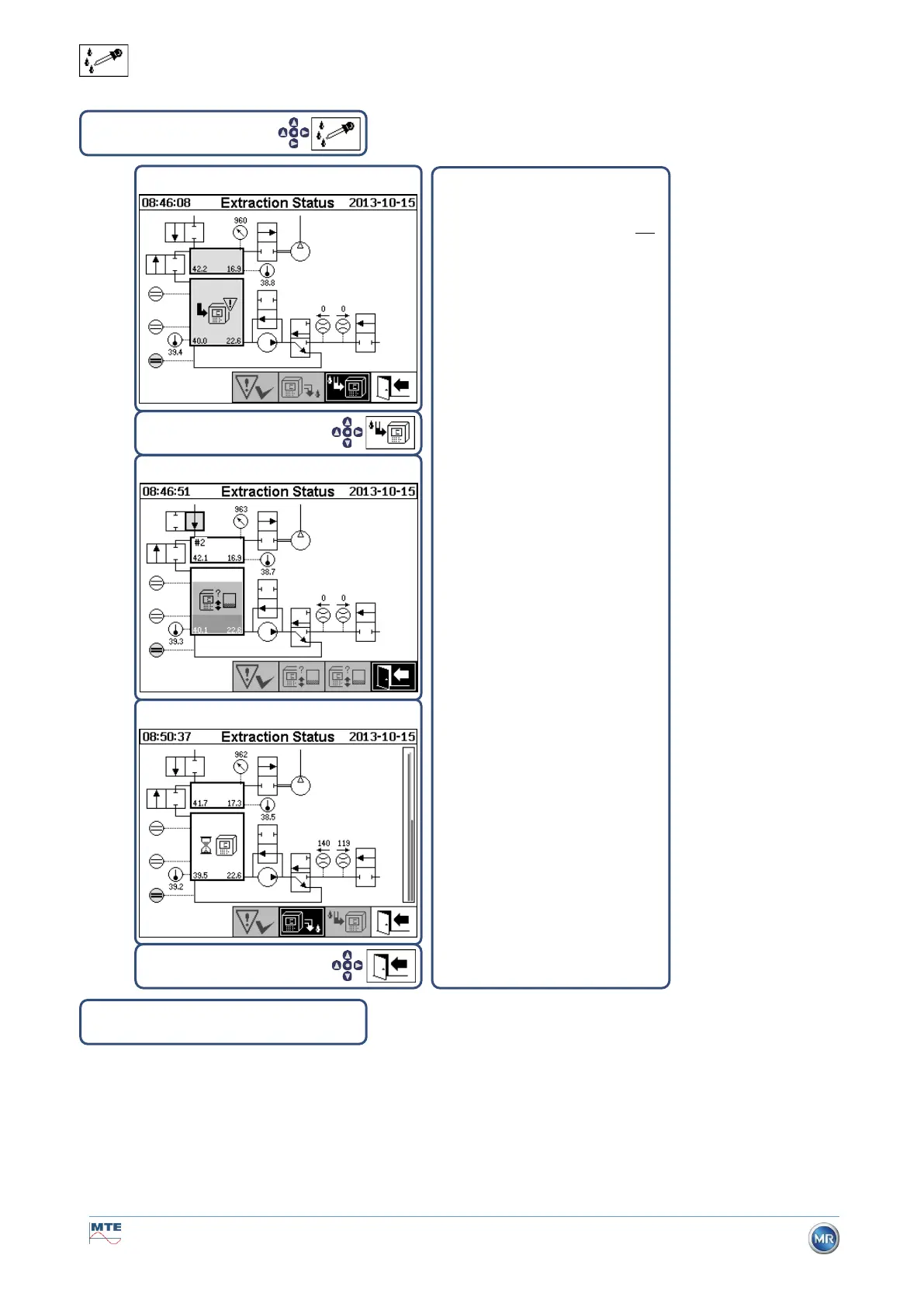

To enter the sub-menu “Extraction status”, please select the following sub-menu symbols.
• If the function is correct, you can reinstall the protective hood and fix it with the two knurled
screws.
• Every 20 minutes, a measurement is started. A measuring cycle lasts at least 15 .... 18 minutes.
Note: Activation / initialisation of the MSENSE® DGA 9 device typically uses the term “mount”.
The MSENSE® DGA 9 does not
automatically start the measure-
ment cycle after installation and
the application of the supply volt-
age (exception: after a power fail-
ure while the device is running). A
warning symbol in the picture indi-
cates this status. The activation
must be done explicitly by the op-
erator!
Device activation
The initialisation cycle detects the
device’s current state and estab-
lishes a defined state of the sys-
tem.
Following successful initialisation,
the device’s state changes to the
“Wait” process step until the next
measuring cycle is started.
