[2]

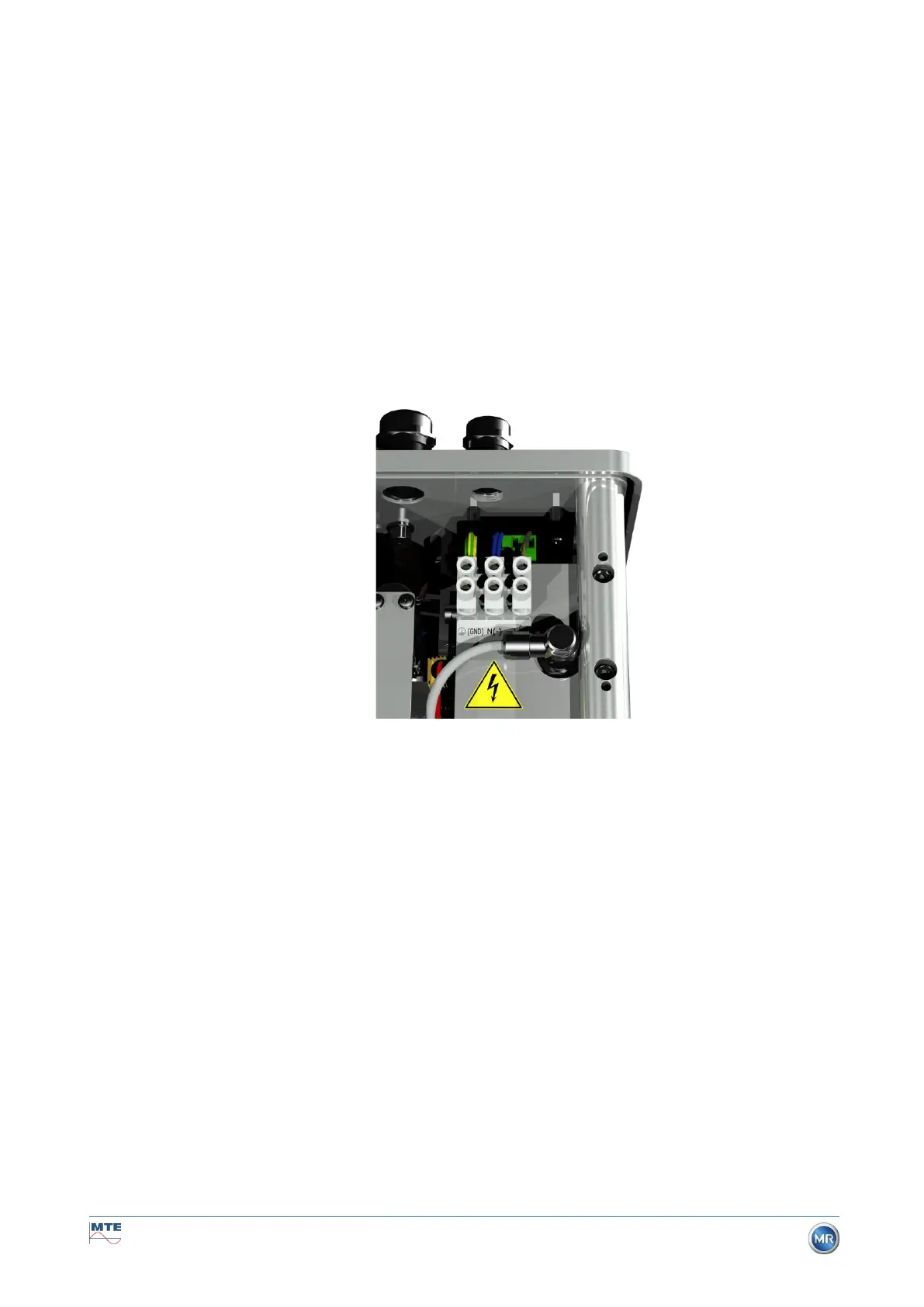

Mains connection with SKINTOP
®
threaded joint M16
Nominal voltages: 120 V -20% +15% AC 50/60Hz
1)
or
230 V -20% +15% AC 50/60Hz
1)
or
120 V -20% +15% DC
1)
or
230 V -20% +15% DC
1)
Other nominal voltages upon request
Power consumption: max. 600 VA
Fuse for 120V: T6, 3 A
Fuse for 230V: T3, 15 A
Connect the power cable as follows:
AC version DC version
Phase: L Plus conductor: +
Neutral conductor: N Minus conductor: –
Protective earth: PE Protective earth:
PE
Remark
1)
:
120 V  120 V -20% = 96 V
min
120 V +15% = 138 V
max
230 V  230 V -20% = 184 V
min
230 V +15% = 264 V
max
[3]
System connection with SKINTOP
®
threaded joint M20
Communication / alarms and additional sensors:
[4]
Implementation with SKINTOP
®
blind threaded joint M20
-
[5]
Implementation with SKINTOP
®
blind threaded joint M25
-
[6]
ETHERNET communication port with RJ45 socket (RJF TV Type: 2)
Communication interface ETHERNET 10/100 Mbit for copper cable
[7]
Vent opening
Used as an output for the vacuum compressor (gas/air mixture of the measurement cell)
