DGA 9 7045899/02 EN – 11.2020 Page 61

[12]

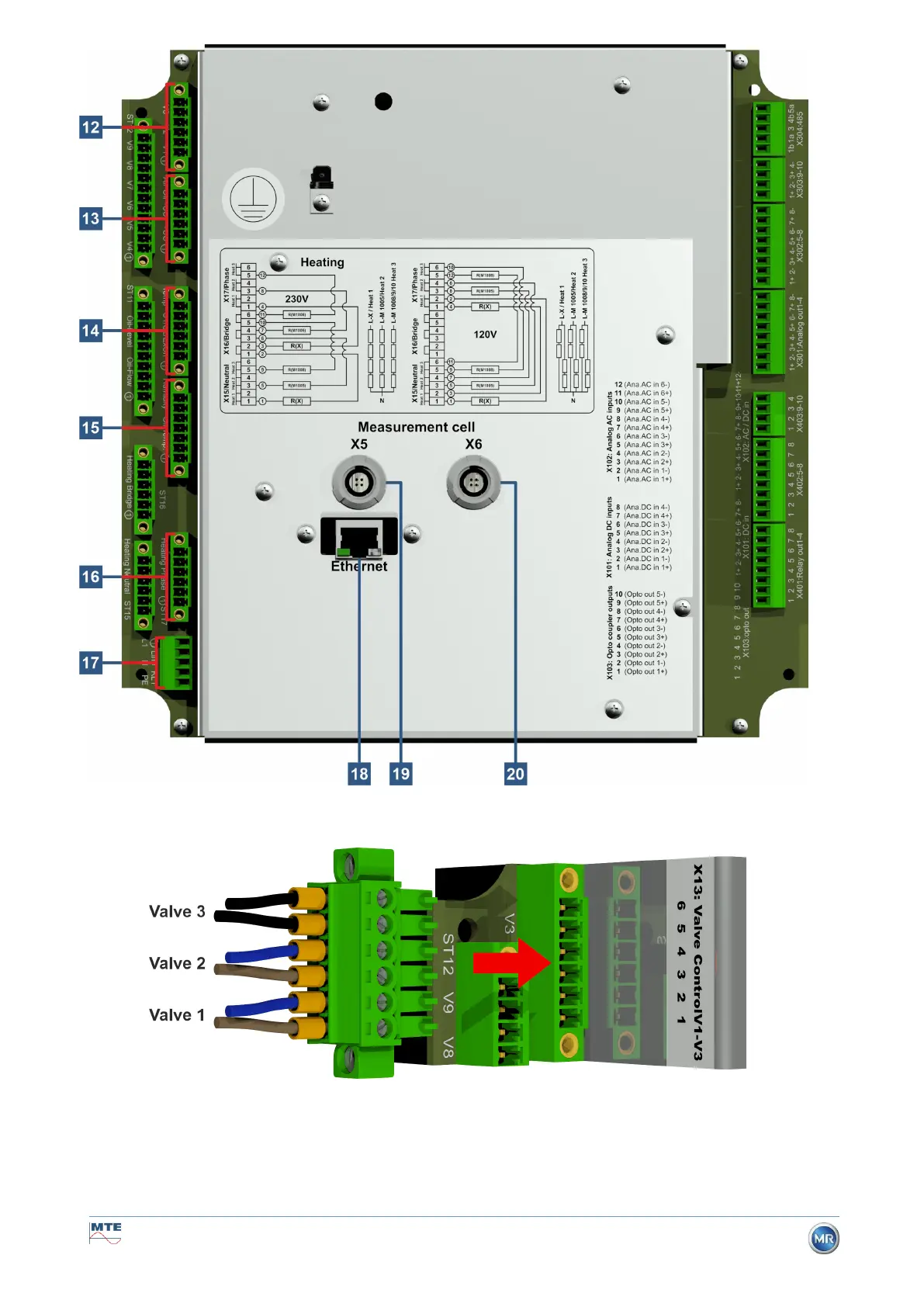

Connector plug X13: Valve control V1 ... V3 [Valve Control V1-V3]

Connection for degassing, measurement cell separation and vacuum MZ1 - valve
