X17:6  N  Heating measurement cell 2
X17:5  N  Heating measurement cell 2
X17:4  N  Heating measurement cell 1
X17:3  N  Heating measurement cell 1
X17:2  N  Heating extraction chamber
X17:1  N  Heating extraction chamber

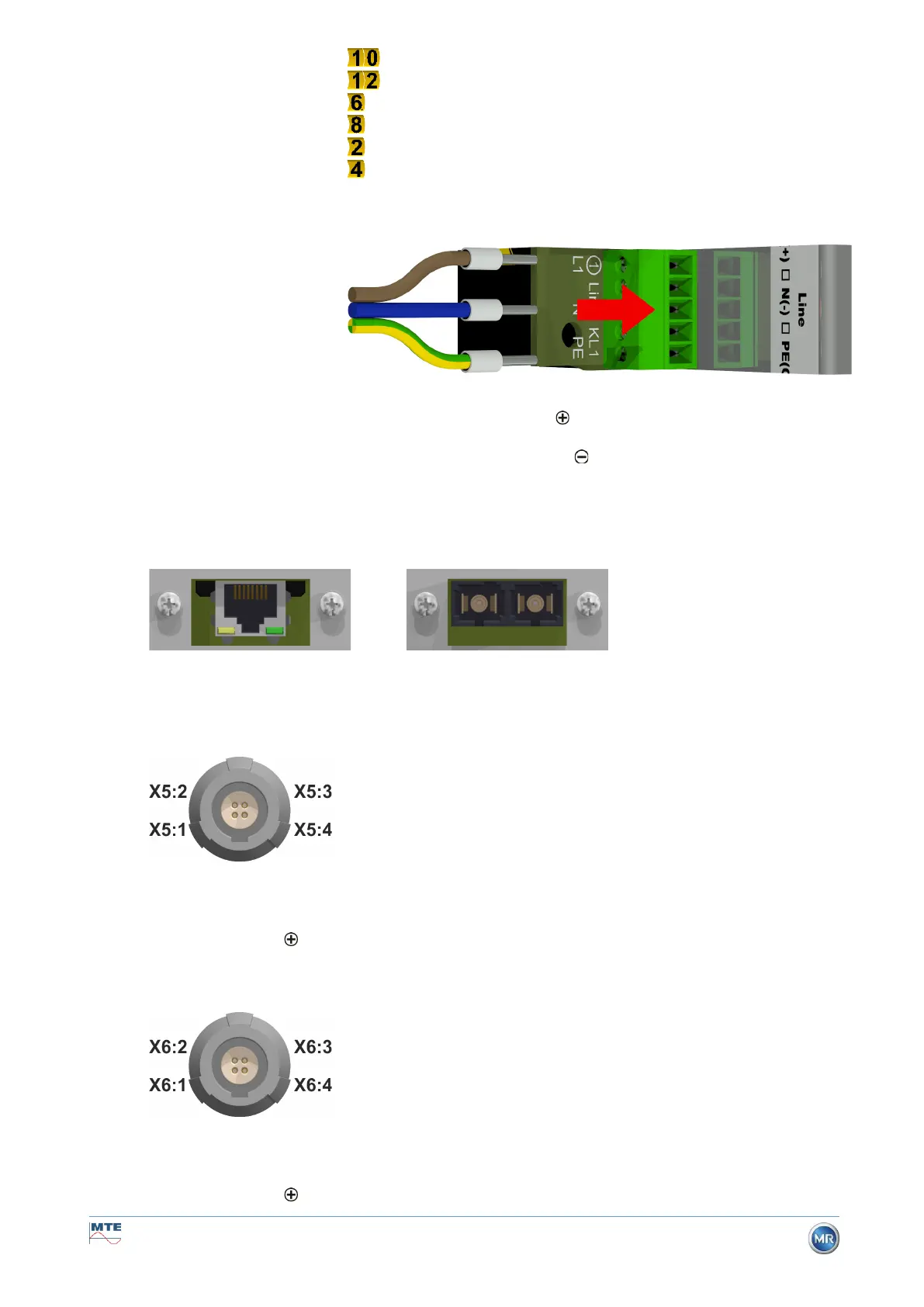

Connection power supply
Connector X1: 1 is connected to the fuse carrier supplied by the main connector.
X1:1  L  Phase AC / Plus conductor DC
X1:2  -
X1:3  N  Neutral AC / Minus conductor DC
X1:4  -
X1:5  PE  Protective earth / Protective earth
[18]
Connection ETHERNET communication [Ethernet]
Communication port via Ethernet
Copper cable or fibre optic cable
(RJ45) (SC-Duplex)
[19]
Connection socket X5: Measurement cell 1 [Measurement cell 1 1005 / X5]
Connection for the measurement cell 1 via REDEL panel jack 4-pole 0° coded
X5:4  Tx
SENS
 Measurement cell 1 transmission signal
X5:3  Rx
SENS
 Measurement cell 1 reception signal
X5:2  GND  8 Volt supply
X5:1  8V  8 Volt supply
[20]
Connection socket X6: Measurement cell 2 [Measurement cell 2 1009 / X6]
Connection for the measurement cell 2 via REDEL panel jack 4-pole 0° coded
X6:4  Tx
SENS
 Measurement cell 2 transmission signal
X6:3  Rx
SENS
 Measurement cell 2 reception signal
X6:2  GND  8 Volt supply
X6:1  8V  8 Volt supply
[17]
Connection terminals X1: Power supply
