DGA 9 7045899/02 EN – 11.2020 Page 66

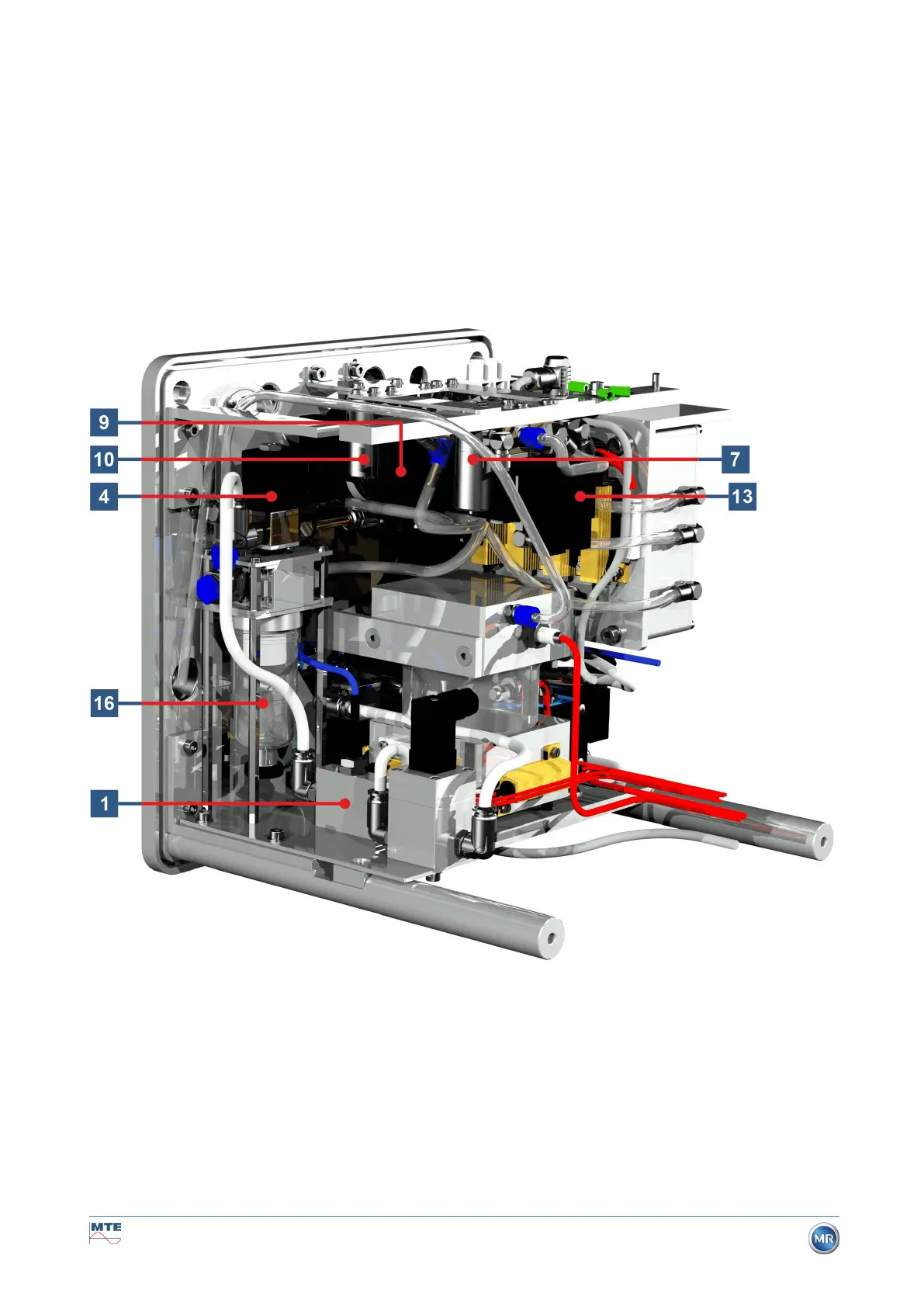

[10]
Valve V4 (ventilation MZ1)
[11]
Valve V8 (ventilation MZ2)
[12]
Valve V2 (measurement cell separation, oil from gas)
[13]
Valve V6 (switching between MZ1 and MZ2)
[14]
Oil pump P1
[15]
Valve V5 (bypass filling)
[16]
Oil separator
[17]
Oil-moisture extraction chamber
[18]
Oil temperature extraction chamber
