⇨ Card holder will be unlatched:
4. Raise the card holder. The card holder can be raised on the right hand side where the casing is
rounded. The card holder is held in place by hinges on the other side.

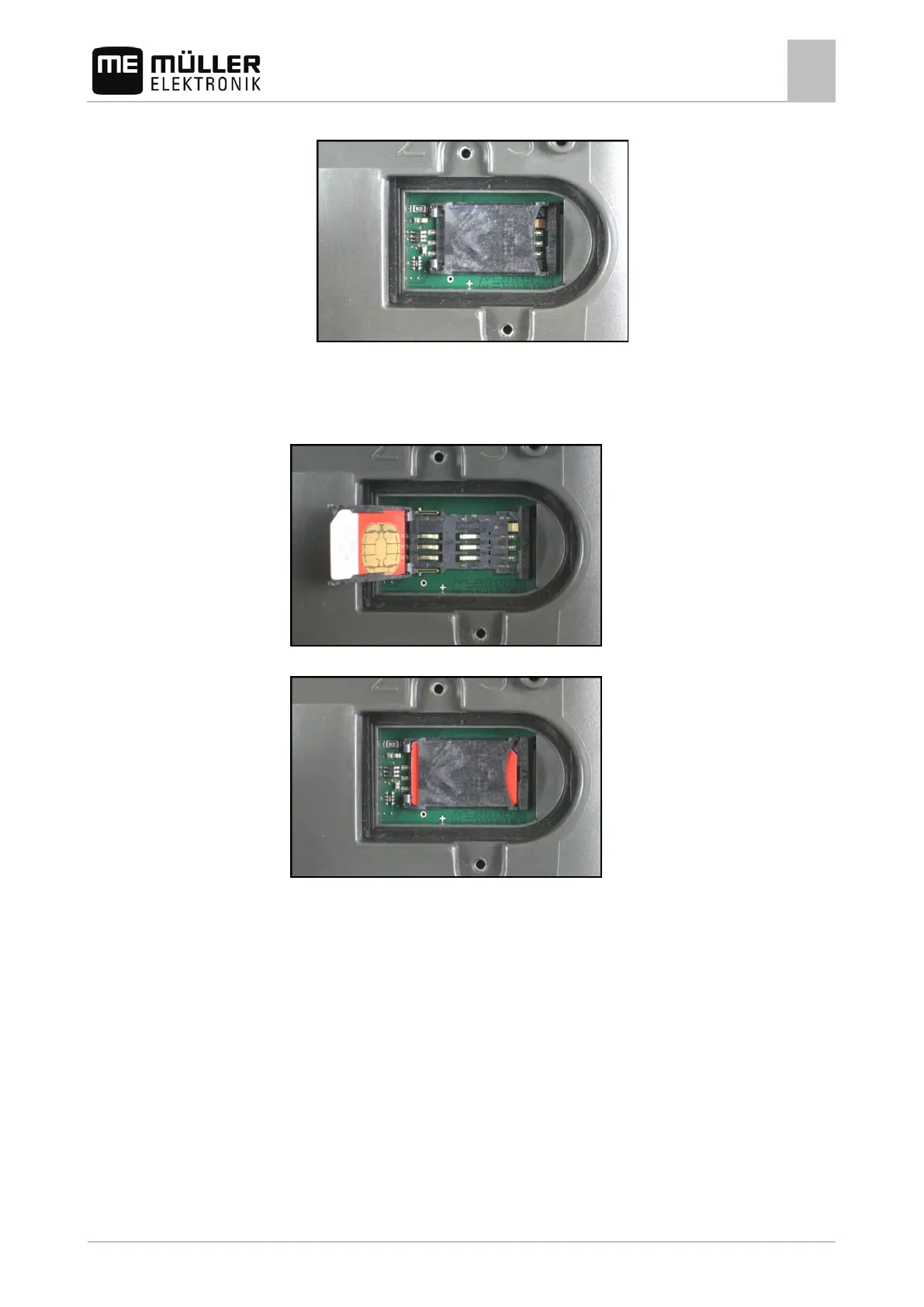

5. Slide the SIM card into the card holder. Following installation, the chip on the card must be in
contact with the circuit board. The card must be positioned as shown in the picture.
6. Shut the card holder.
7. Press the card holder lightly onto the circuit board, until it clicks into place on the right hand side.
8. CAUTION! Tighten the screws, but not too tight, otherwise the cover might be damaged.
9. Screw the cover back on. Make sure that the rubber seal is positioned between the cover and
the casing.
Connecting the ISO printer to the terminal
The ISO printer is used to print out information from an ISO-XML task.
