Configuring the terminal in the Service application
Activating an external LightBar
7
30302710-02-EN V7.20141016 39
6. Position the tractor on a ground surface that is known to be level.
7. Click on the line "Null point calibration".
⇨ The position of the tilt module on level ground is being calibrated.
⇨ After calibration, the angle 0 will appear on the "Angle" line. The displayed angle will change
with any tilt of the tractor.
8. Reconnect all of the additional devices that you had disconnected for the configuration.
Activating an external LightBar
If you connected an external LightBar to the terminal, you must activate it.
To activate the external LightBar, you must first activate its driver.
You can order the external LightBar from Müller-Elektronik with the following item number: 30302490.

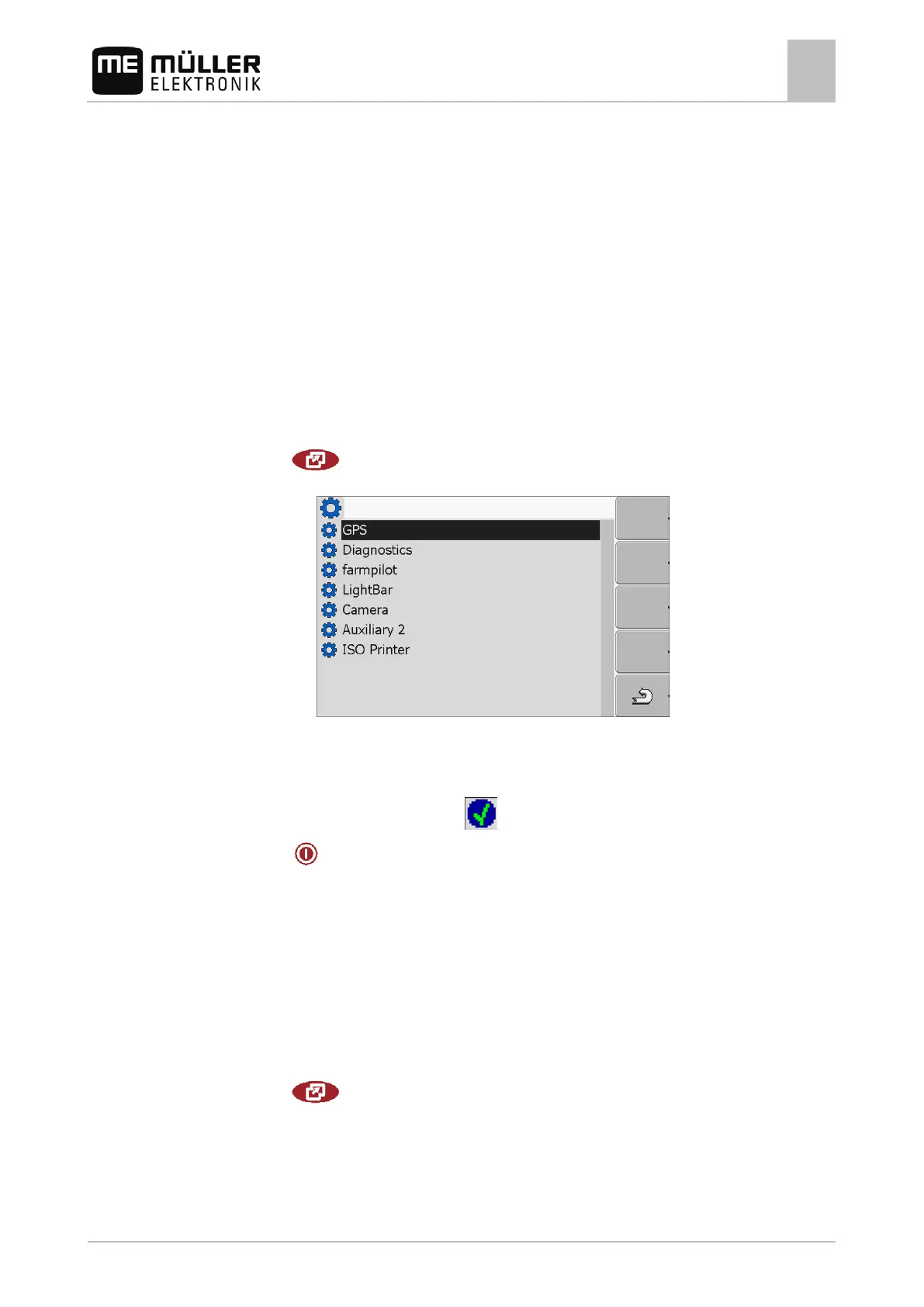

1. Switch to screen "Driver":
| Service | Driver
⇨ The following screen will appear:
2. Click on "LightBar".
⇨ The installed drivers will appear.
3. Click on the "Lightbar" driver.
⇨ Next to the driver the icon
will appear.
4.
- Restart terminal.
⇨ You have activated the external LightBar.
Camera
Activating a camera
In order to activate a camera, you must activate its driver.
1. Switch to the "Driver" screen:
| Service | Driver
Procedure
