Mounting and installation
Connecting the camera to the terminal
4
30302710-02-EN V7.20141016 19
Adapter cable by hardware version
Hardware ver-
sion of the
Adapter cable Connection Item num-
ber
From 3.0.0 3-pole plug Adapter cable, 9-pole bushing to 3-
31302499
Adapter cable, 9-pole socket to 3-pole
You can also connect the terminal to the signal socket.
Cable to the signal socket
Hardware ver-
sion of the
Connections Connection Item num-
ber
From 3.0.0 7-pole to 9-pole socket Cable direct to the signal socket
Transfers the speed, PTO revolution,
30322548
All 3-pole (from the adapter
cable, dependent on the
hardware version) to 7-
Cable to the signal socket
Only transfers the working position.
313008

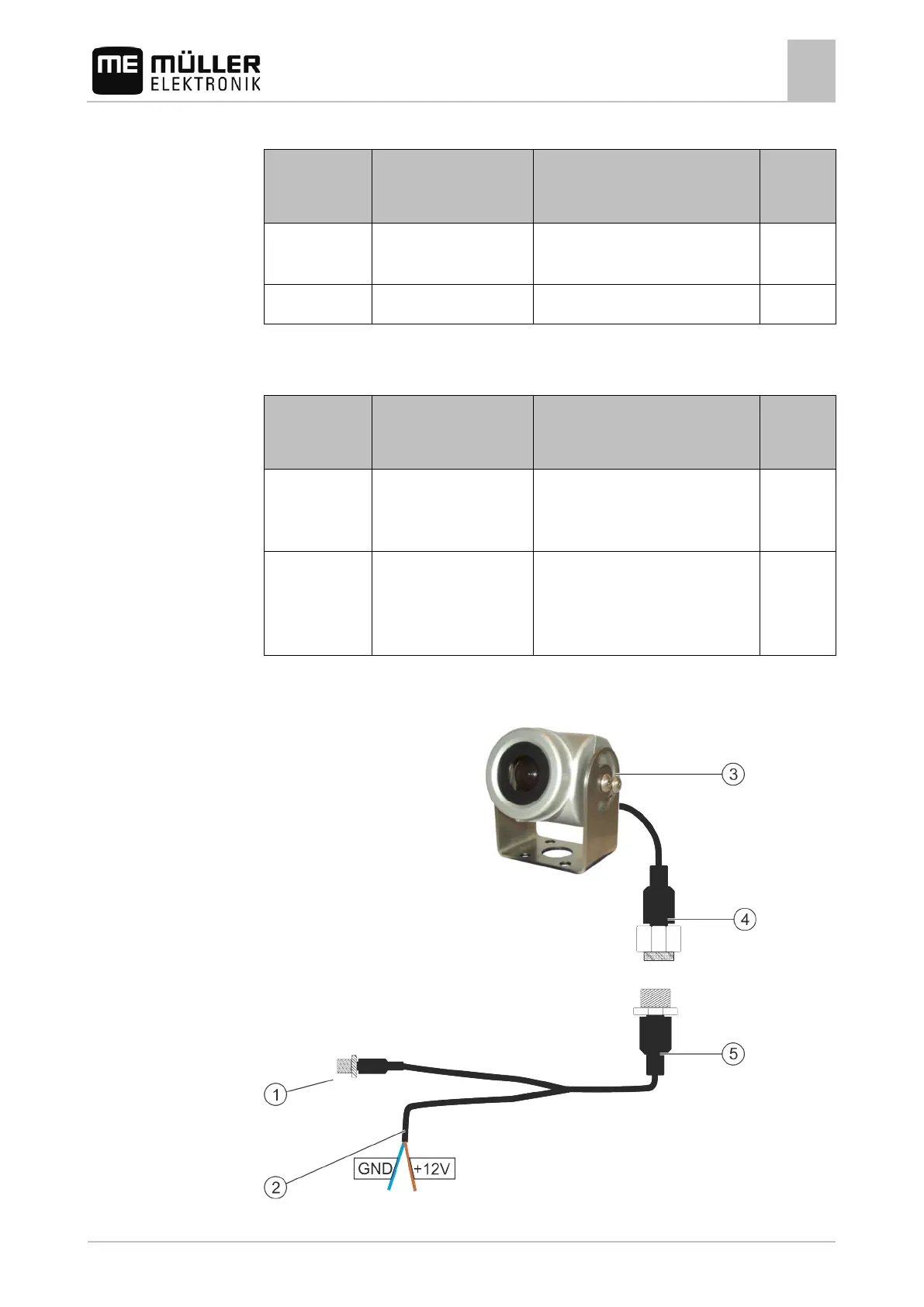

Connecting the camera to the terminal
Camera with cable harness
