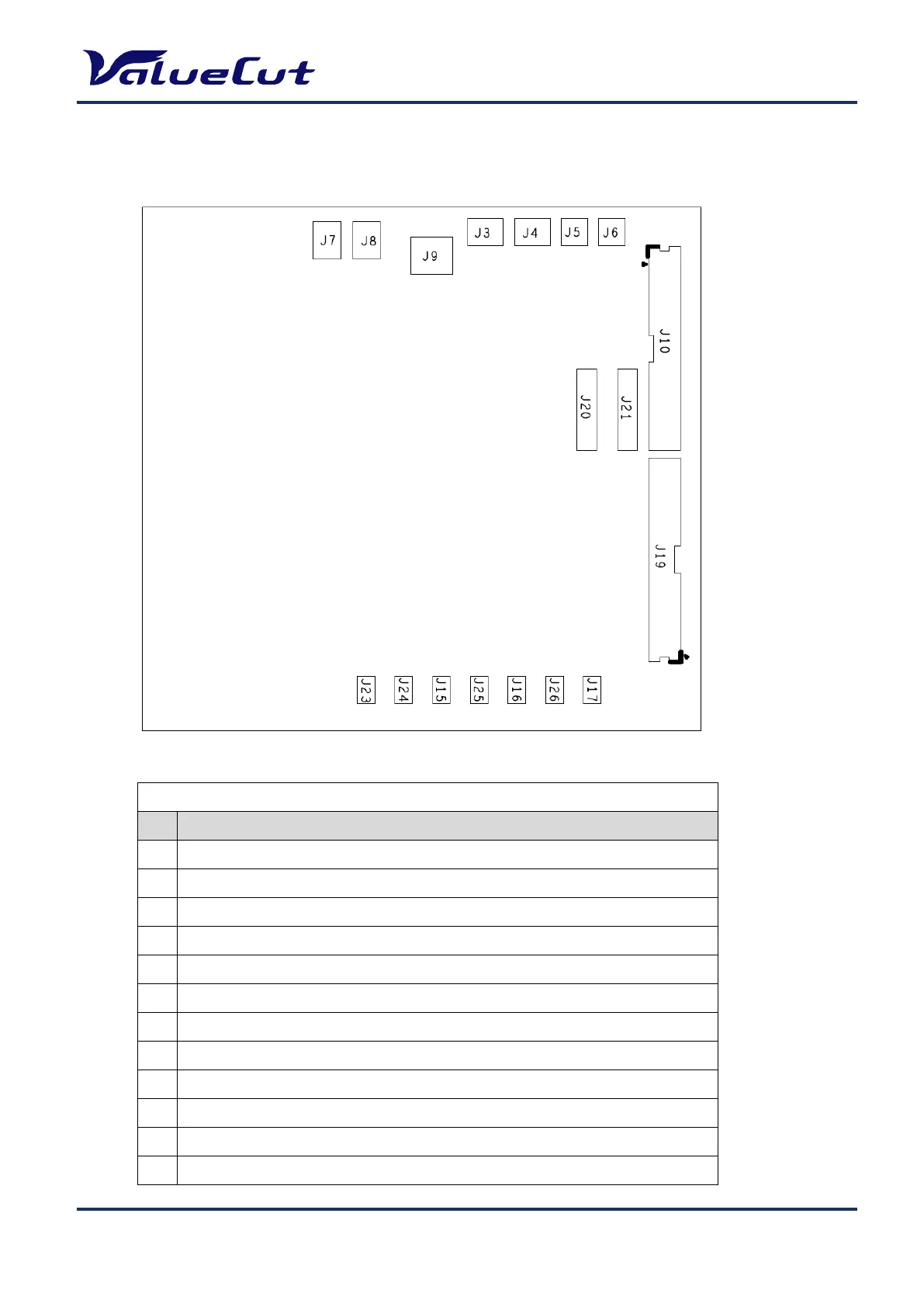

Wiring Diagram - Driver Board
Driver board
Port
Connected to
J3
X Motor encoder
J4
Y Motor encoder
J5
Rear paper sensor
J6
Front paper sensor
J7
X Motor power
J8
Y Motor power
J9
DC Power input
J10
20x2 Ribbon Cable connect to Main Board J8
J19
20x2 Ribbon Cable connect to Main Board J41
J21
Flat cable connect to Flat cable 9 pin to 8 pin PCB Assembly
J23
DC FAN
J24
DC FAN
