MUTOH ValueCut VC2-1300 - Width Sensor Test

MAINTENANCE MANUAL
VC2E-MM-00
49

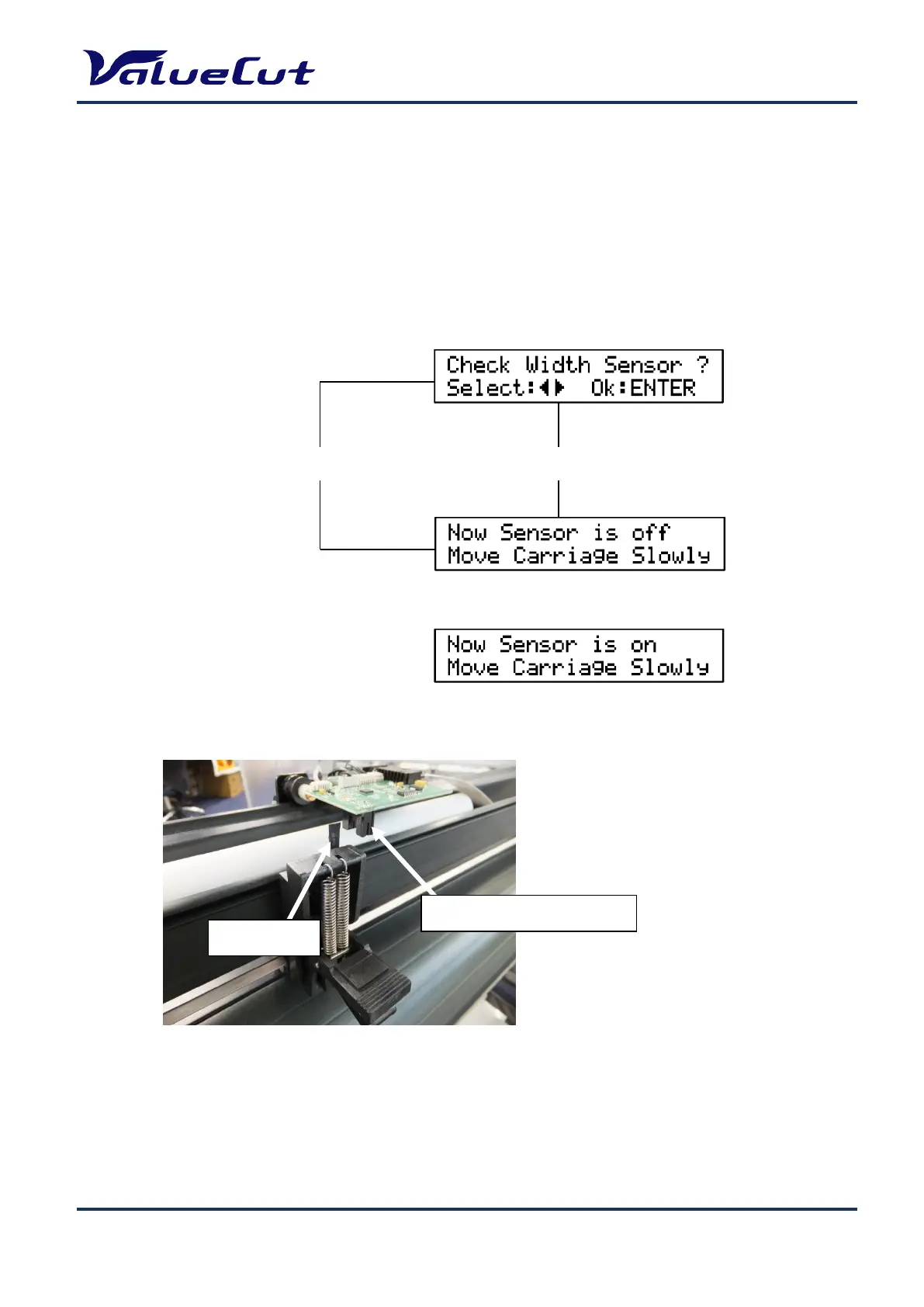

Diagnostic Test for Width Sensor
It diagnoses the width sensor. If the sensor is faulty, the cutting plotter cannot detect the media width
correctly. You can check the sensor by moving the tool carriage to the left and right. When moving the tool
carriage close to the pinch roller, the message on the LCD changes quickly to on and off. For replacement,
please refer to the maintenance chapter.
or
ENTER key
ON/OFF LINE key
Width detection sensor
Sensor Flag
