MUTOH ValueCut VC2-1300 - Serious Error Handling

MAINTENANCE MANUAL
VC2E-MM-00
60

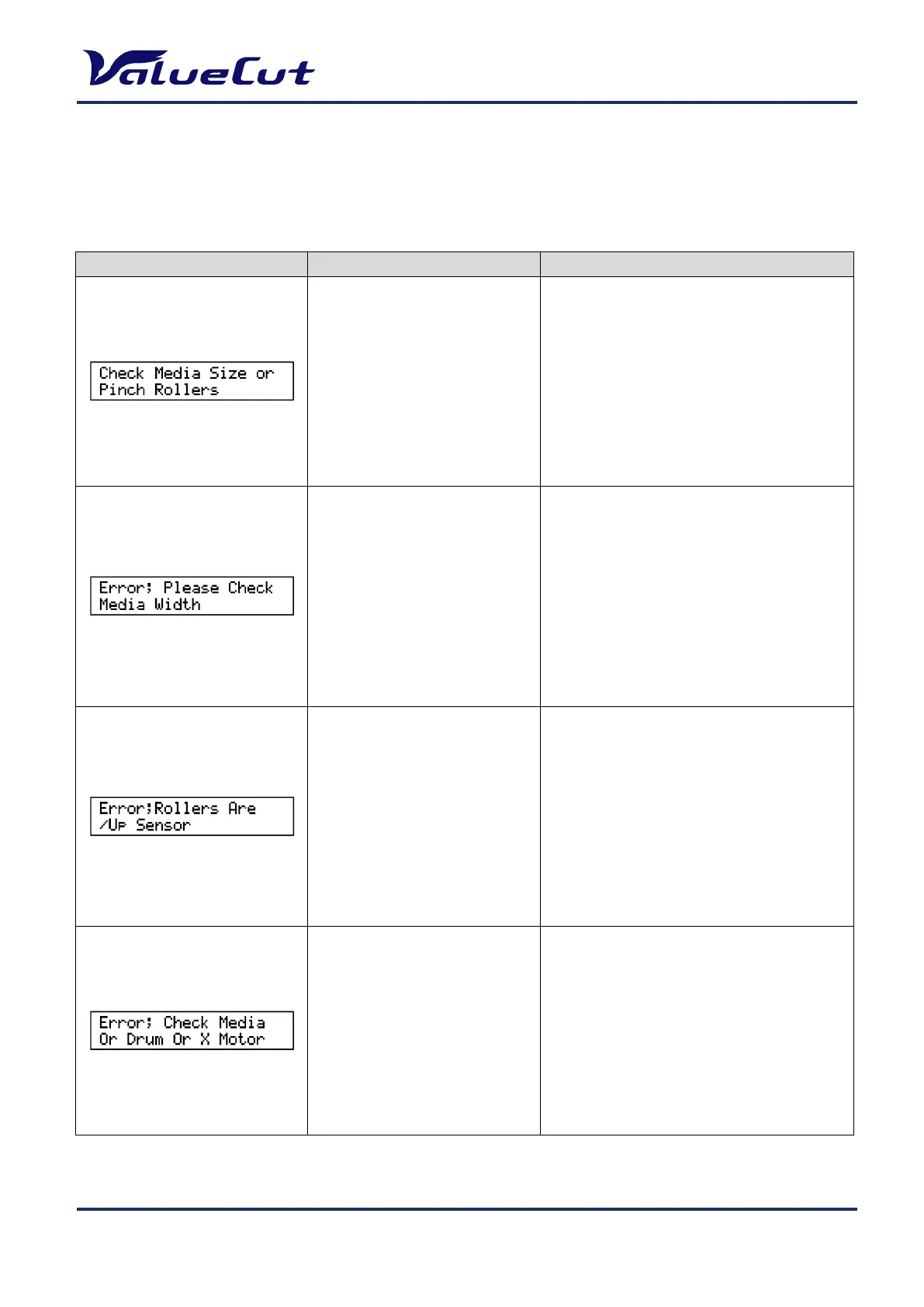

Error Message and Handling
Serious Error
This section describes the contents of reboot-required errors as well as the check items and recovery
actions.
Error
Event/Symptom
Troubleshooting
Media detection failed
Are Pinch Rollers installed correctly?
Check the width sensor in self-diagnosis.
<Parts may be broken>
 AASII carriage board Assy
 Watch dog-Interface converter board Assy
 Main board Assy
 Flat cable Assy
Media detection failed
Are Pinch Rollers installed correctly?
Check the width sensor in self-diagnosis.
<Parts may be broken>
 AASII carriage board Assy
 Watch dog-Interface converter board Assy
 Main board Assy
 Flat cable Assy
Media detection failed
Are Pinch Rollers installed correctly?
Check the width sensor in self-diagnosis.
<Parts may be broken>
 AASII carriage board Assy
 Watch dog-Interface converter board Assy
 Main board Assy
 Flat cable Assy
Abnormal condition in PF motor
(X-axis)
Remove the obstacle that prevents the X-axis
operation.
Check if a media is jammed on the machine.
Check "X Encoder" and "Drum Movement" in
self-diagnosis.
<Parts may be broken>
 X-motor
 Main board Assy
