MUTOH ValueCut VC2-1300 - Media Sensors Test

MAINTENANCE MANUAL
VC2E-MM-00
48

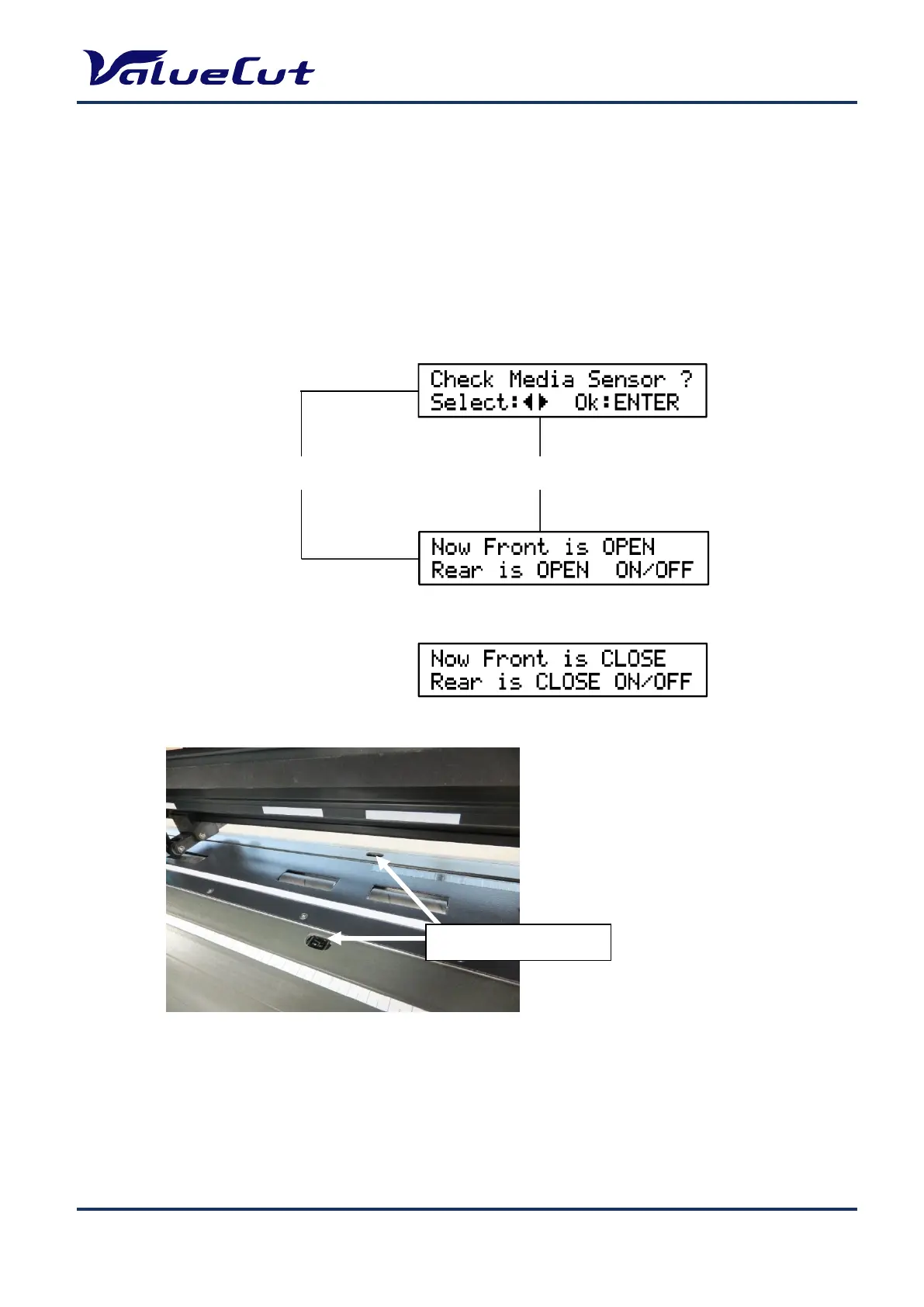

Diagnostic Test for Media Sensors
It diagnoses the media sensors. If they are faulty, the cutting plotter cannot detect the media length
correctly. The current condition of front and rear sensor will be displayed on the LCD. You can check if the
sensors are working correctly by turning it on or off.
or
ENTER key
ON/OFF LINE key
Paper sensor
