MAINTENANCE MANUAL
VC2E-MM-00
30

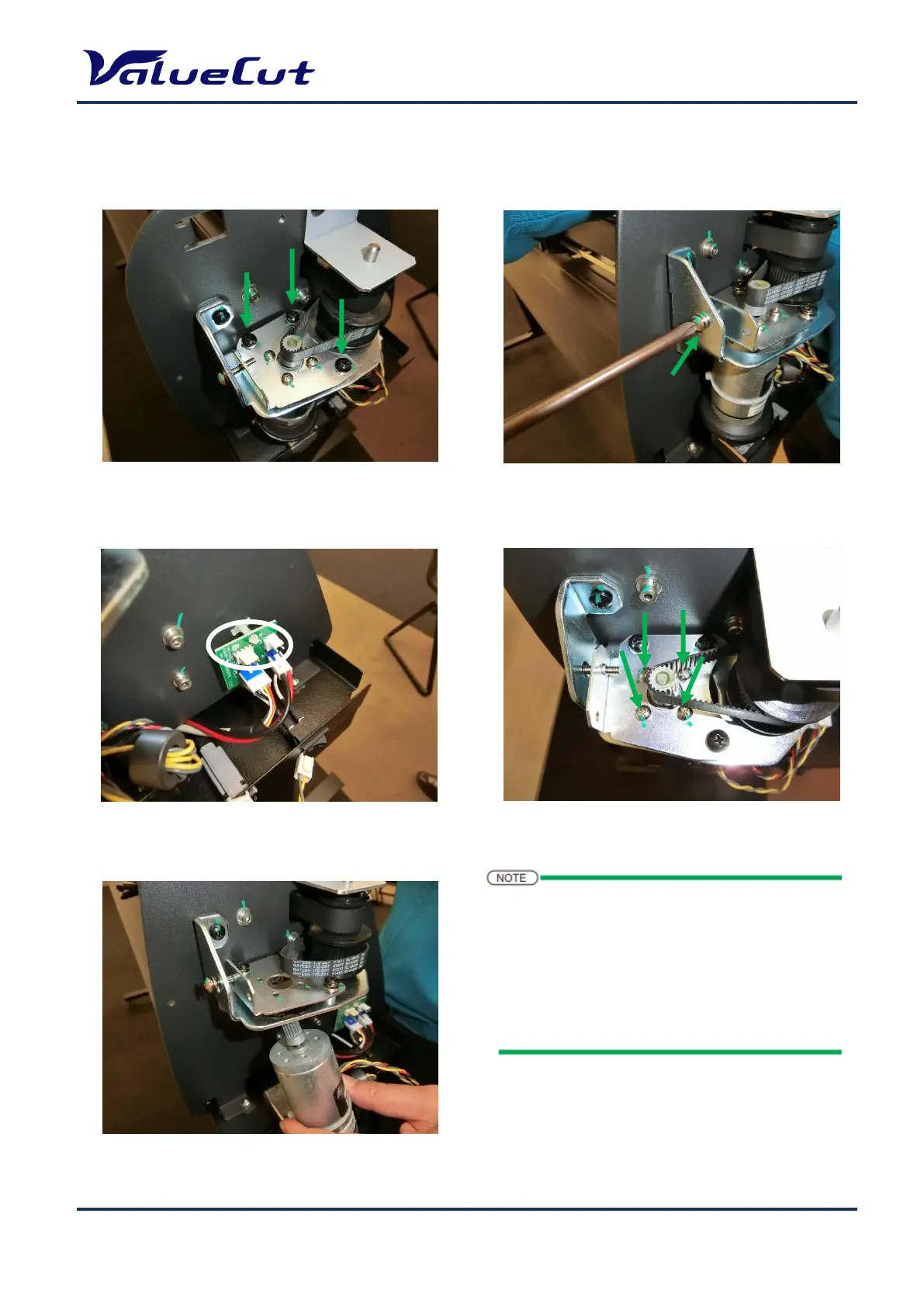

Replacing Y-Motor
Please follow the steps below to replace the Y-motor.
3. Disconnect the 2 cables connected to
the motor.
4. Remove the 4 screws securing the Y-motor.
1. Loosen the 3 retaining screws securing
the bracket. (No need to remove them)
2. Loosen the tension adjustment screw.
(No need to remove them)
1: Install the Y-motor in the reverse order of removal.
2: Belt tension adjustment is required after the
replacement.
For details, refer to “Belt Tension Adjustment”.
3: Please connect the cables to the Y-motor after the
belt tension adjustment is completed.
To Next Page
