MUTOH ValueCut VC2-1300 - Motor Encoder Tests

MAINTENANCE MANUAL
VC2E-MM-00
50
Diagnostic Test for Motor Encoder and Tool Holder Encoder
It diagnoses the X and Y motor encoder and tool holder encoder. If the encoder is defective, the cutting
plotter cannot work properly. To check if the encoder is bad or good, you can apply a slight force to the
tested part (such as a drum, tool carriage or tool holder) then examine the readings. If the encoder
reading changes dramatically or does not change at all, the encoder is bad. To replace the motor or tool
carriage, please refer to the maintenance chapter.

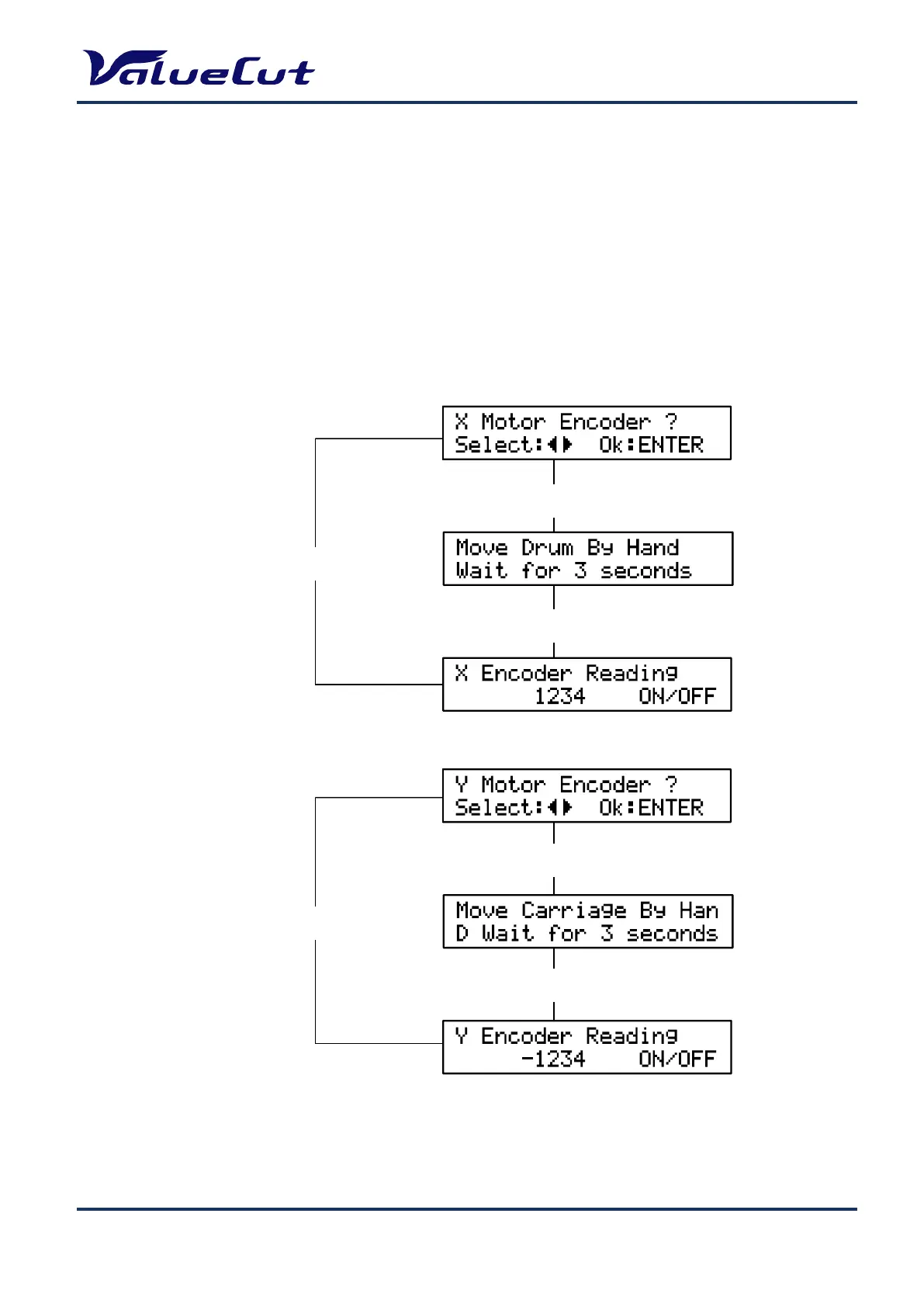

X Motor Encoder Test
Y Motor Encoder Test
ENTER key
ON/OFF LINE key
3 seconds later
ENTER key
ON/OFF LINE key
3 seconds later
