MUTOH ValueCut VC2-1300 - X Motor Belt Tension

MAINTENANCE MANUAL
VC2E-MM-00
43

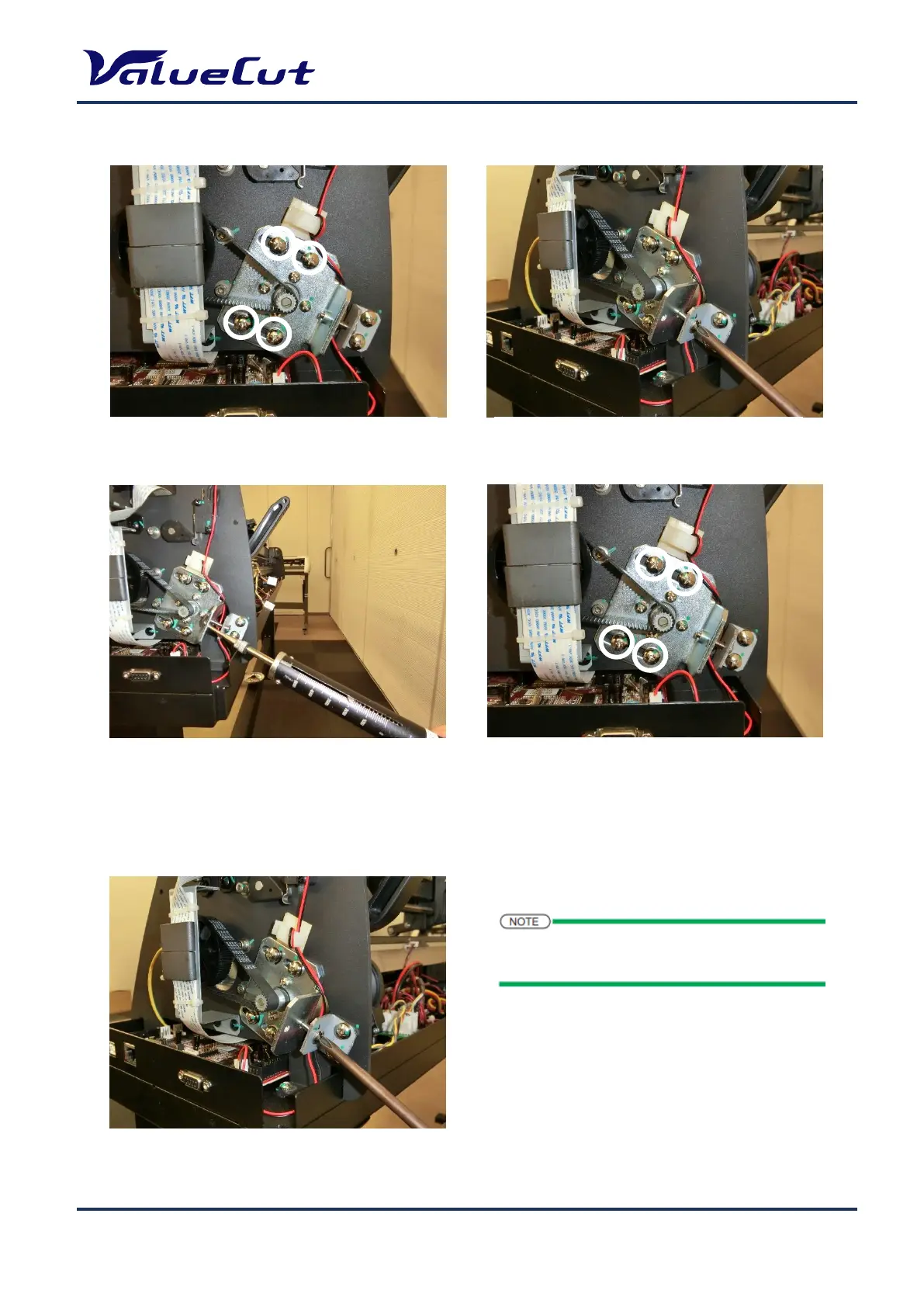

X Motor Belt
3. Hook the push-pull gauge into the hole of X
motor bracket, and pull toward yourself along
the direction parallel to the X-motor belt.
The pulling force is 2kgf.
1. Loosen the 4 retaining screws
securing the X-motor bracket.
4. Tighten the 4 retaining screws securing
the X-motor bracket.
5. Tighten the tension retaining screw.
2. Loosen the tension retaining screw
of X motor bracket.
The tension between the drum and X motor is 2 kgf.
