MUTOH ValueCut VC2-1300 - Y Motor Belt Tension

MAINTENANCE MANUAL
VC2E-MM-00
44

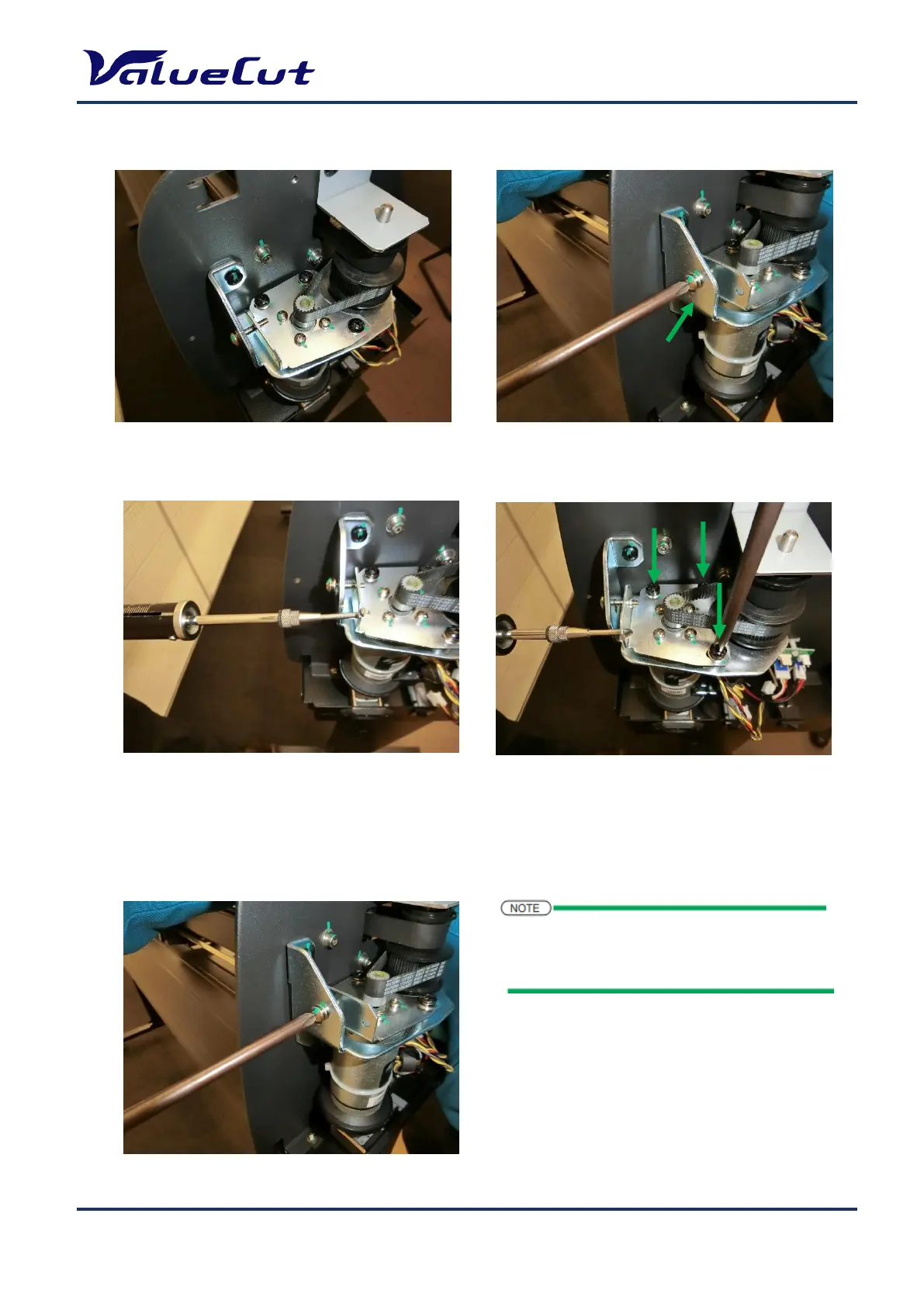

Y Motor Belt
4. Tighten the 3 retaining screws securing
the Y-motor bracket.
。
カーソルを外します。
3. Hook the push-pull gauge into the hole of
Y motor bracket, and pull toward yourself
along the direction parallel to the Y-motor
belt. The pulling force is 2kgf.
5. Tighten the tension retaining screw.
1. Loosen the 3 retaining screws securing
the bracket.
2. Loosen the tension retaining screw of
Y motor bracket.
The tension between the drive pulley and Y
motor is 2 kgf.
