MUTOH ValueCut VC2-1300 - Exploded View

MAINTENANCE MANUAL
VC2E-MM-00
8
Exploded View
Please use the following exploded view as a reference when selecting the parts.
The recommended service parts are circled in red. Please refer to the parts list at the end of this manual
for the parts number and parts names.

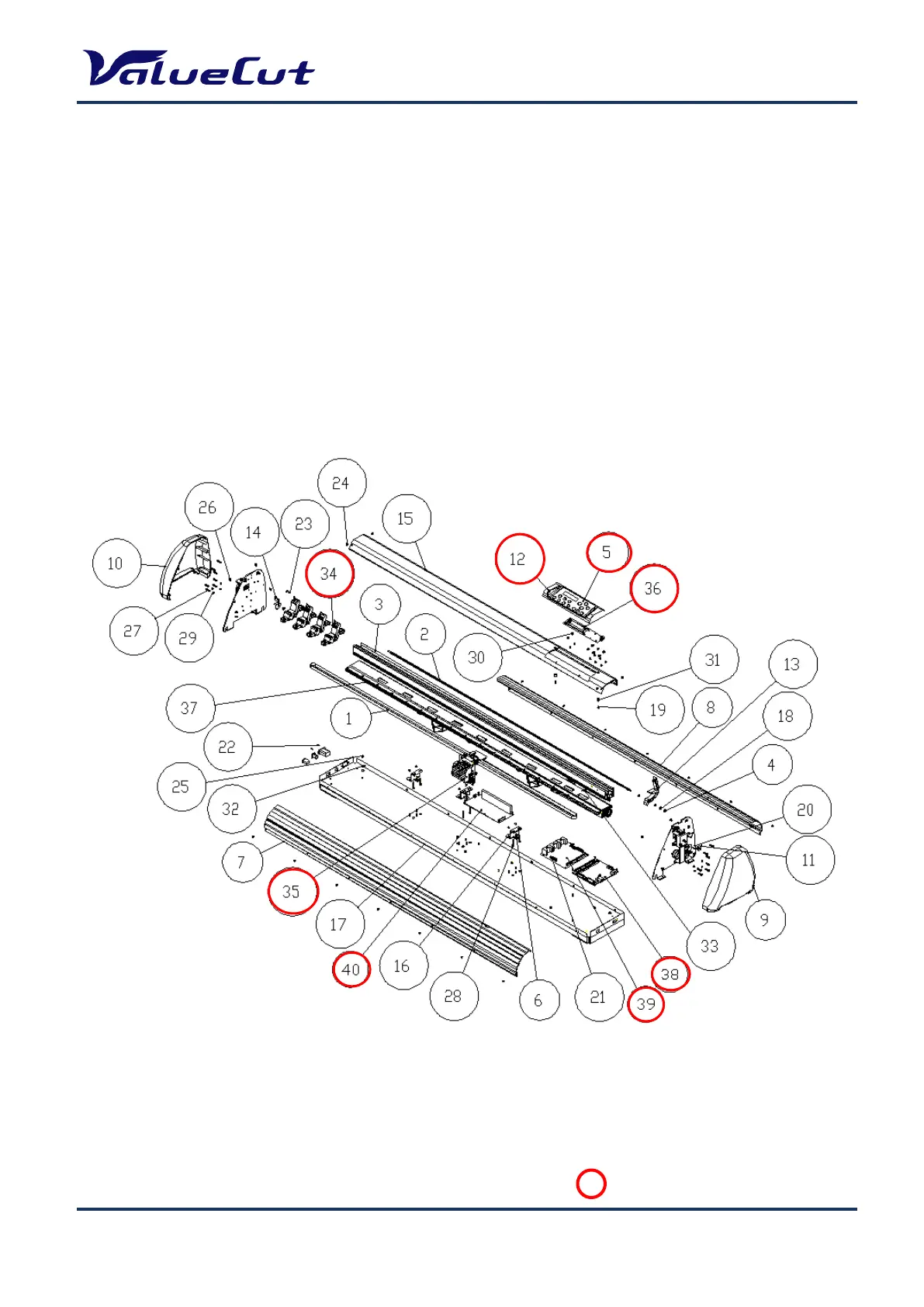

A. Main Unit Assembly
: Recommend Service Parts
