Belt Tension Adjustment
Tool Carriage Belt

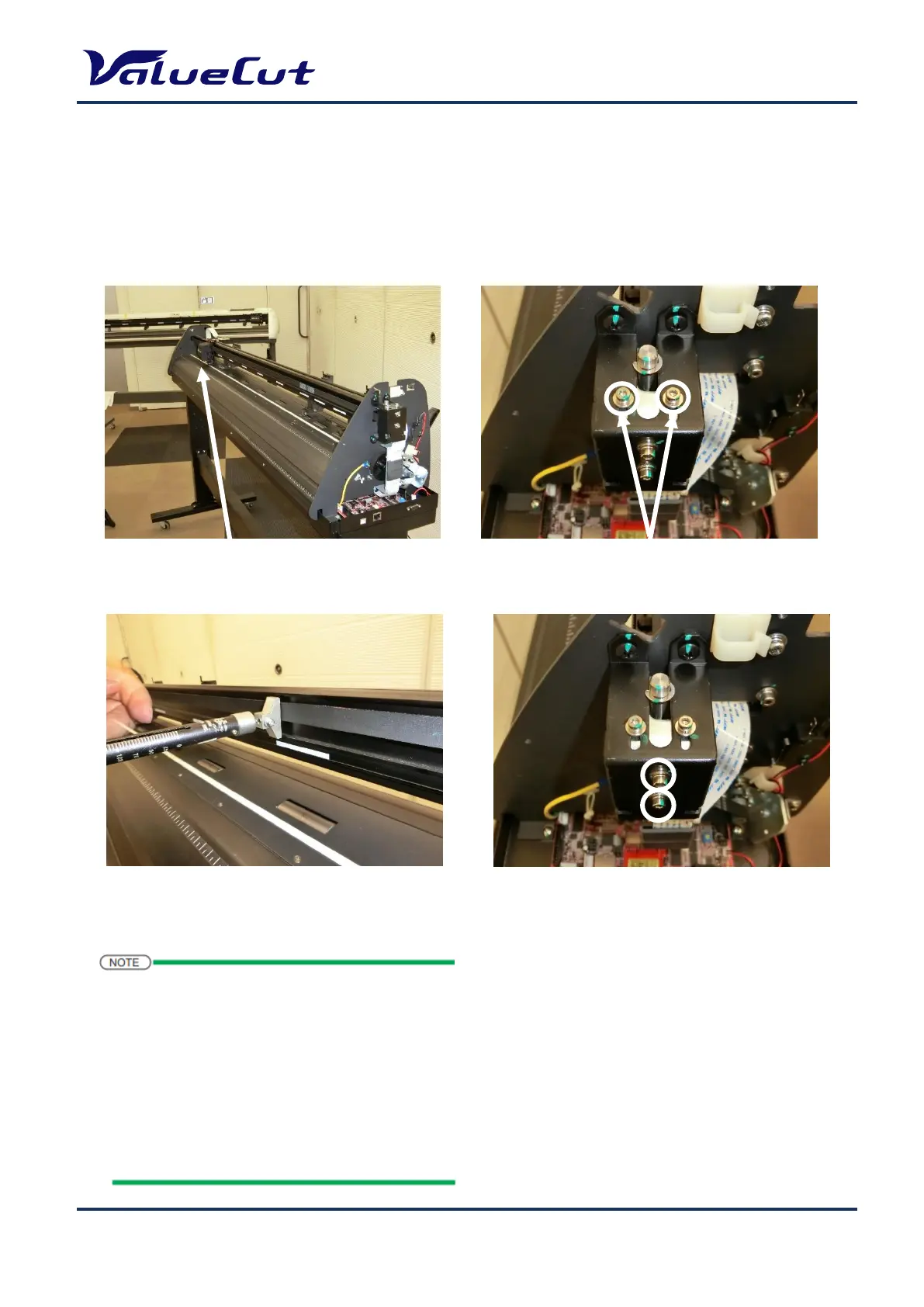

After replacing the tool carriage belt or belt itself, the belt adjustment is required. Please follow the
procedure below.
1. Move the tool carriage to the far left
end of the guide beam.
2. Loosen the 2 retaining screws on the top
of the carriage belt roller housing.
3. Place the belt tension gauge at the
center of the belt, and measure the belt
tension.
4. To adjust the belt tension, adjust the
screws on the side of the carriage belt
roller housing.
To tighten the tension, turn the screws
clockwise. To loosen the tension, turn
the screws anticlockwise.
1: The desirable tension is as follows:
VC2-600 650g - 850g
VC2-1300 220g - 320g
VC2-1800 180g - 200g
2: Tighten the upper and lower screws evenly to
secure the belt in the proper position.
3: Tighten the 2 retaining screws on the top of the
housing once the adjustment is made.
