MUTOH ValueCut VC2-1300 - Page 23

MAINTENANCE MANUAL
VC2E-MM-00
23

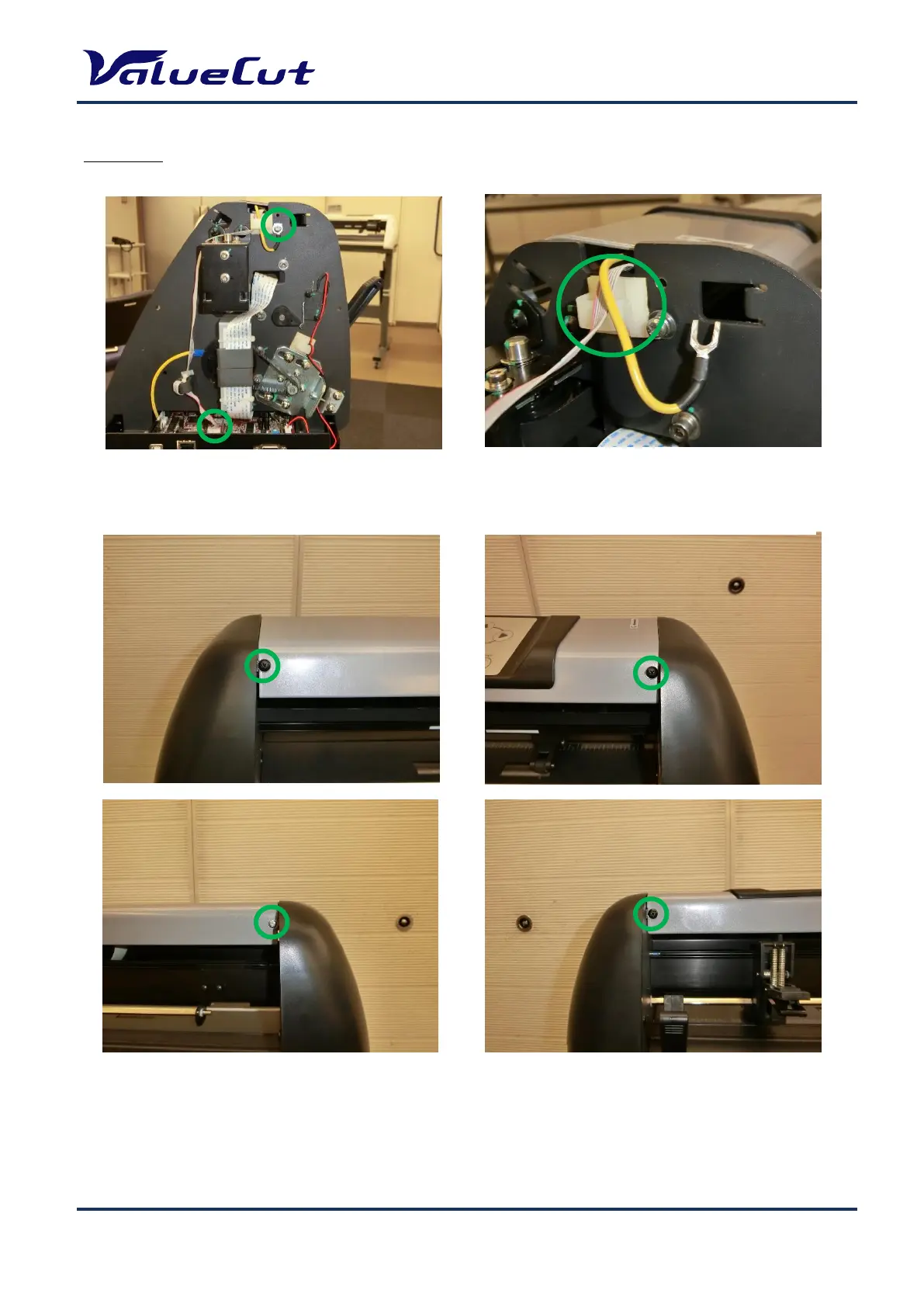

Top Cover:
3. Remove the 2 front cover screws and 2 back cover screws.
1. Disconnect the panel cable and FG cable.
(No need to remove the screws securing FG cable)
2. Remove the panel cable and FG cable from
the clamp.
