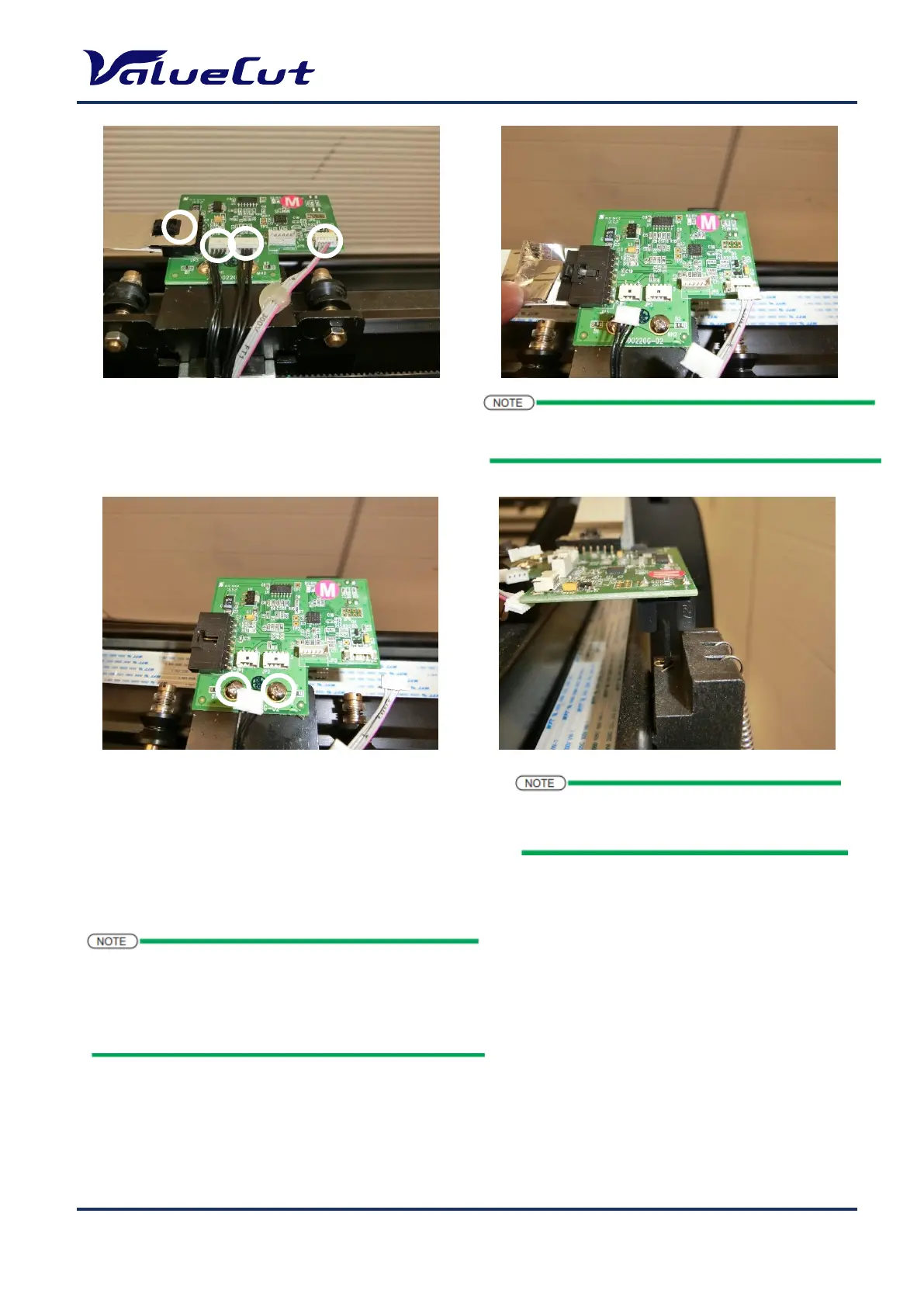

1: Install the carriage board in the reverse order of removal.
2: Need to replace the tool carriage or flat cable if the Pinch
Roller Sensor is still not effective after the replacement.
2. Disconnect the 4 cables connected to
the carriage board.
3. Remove the 2 screws securing the
carriage board.
Make sure to install the carriage board so that the
sensor-flag is in the middle of the sensor.
Be careful not to damage the aluminum tape as it is reused.
