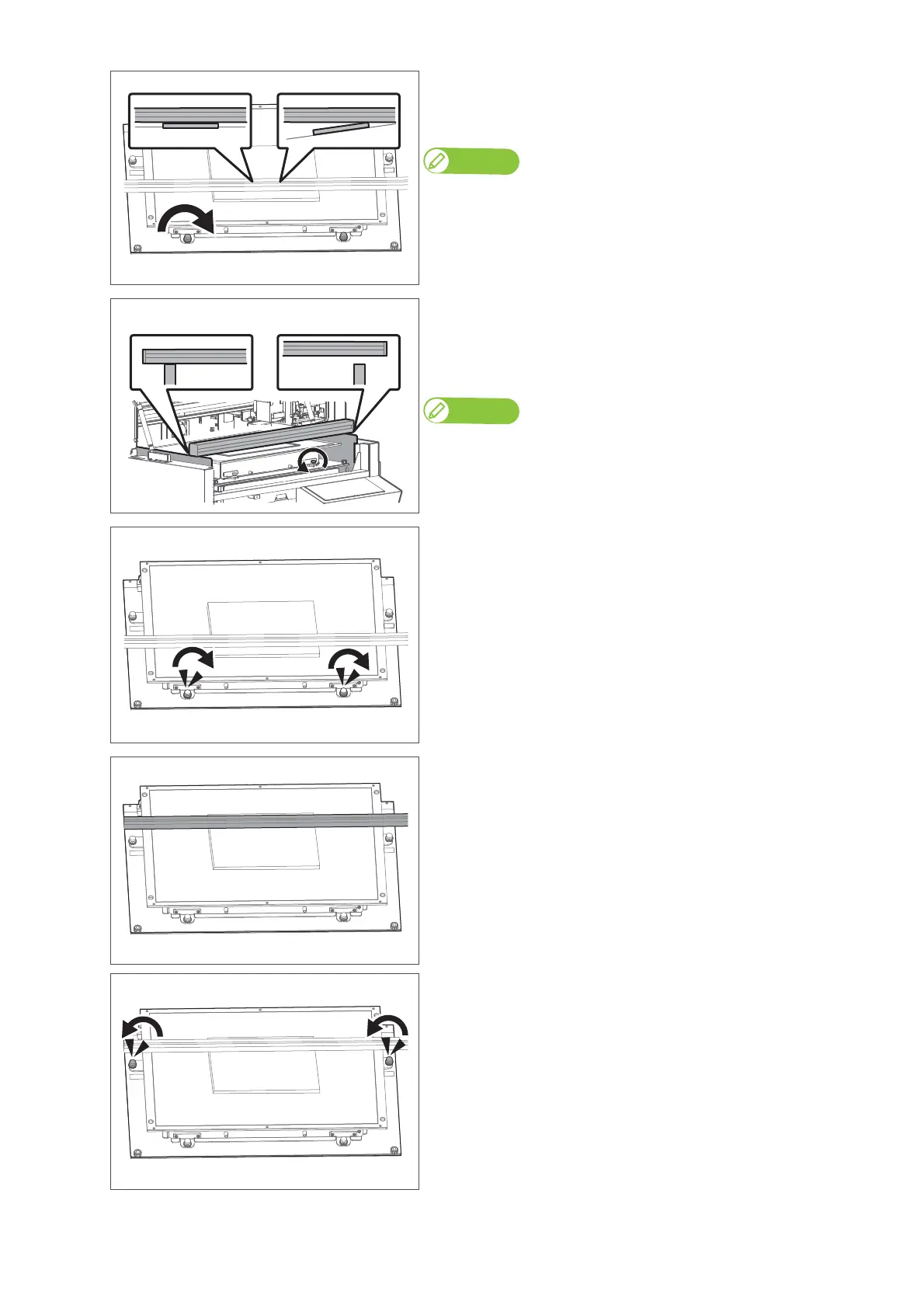

Rotate the thumb screw of the adjuster on the side with gap to raise the table.
• Rotate it clockwise.
• Raise the table until no gap is present in between.
Note
• In the "Not good" example on the left, use the adjuster on the left to level the table.
• If the table does not raise smoothly, try to loosen the thumb screws of the adjusters
on both sides (Once leveled, tighten the thumb screws).
• Be sure not to raise the table too high.
[4]
Check that no gap is present between the media height guide and side plates
on both sides.
• If gap exists, use the adjusters on the side where gap is present to lower the
table.
Note
• In the "Not good" example on the left, use the adjuster on the right to level the table.
• Rotate them anti-clockwise.
[5]
Tighten two adjuster nuts on the front side of the table.
• Turn the nuts clockwise to tighten.
• If the media sits on the front half of the table only, move to Step 10.
• If the media loaded covers more than half area of the table, move to Step 6
[6]
Place the media height guide on the side plates over the table.
• Make sure that the media height guide is placed on the side plates on both
sides.
[7]
Loosen the thumb screws with nuts securing the adjusters on both sides of
the table (one each).
• Rotate them anti-clockwise.
