hyperion - TECHNICAL MANUAL
0.5 Patient arm installation
Oncetheunitisxedtothebaseplateortothewall,itisnecessarytoinstallthepatientarm.

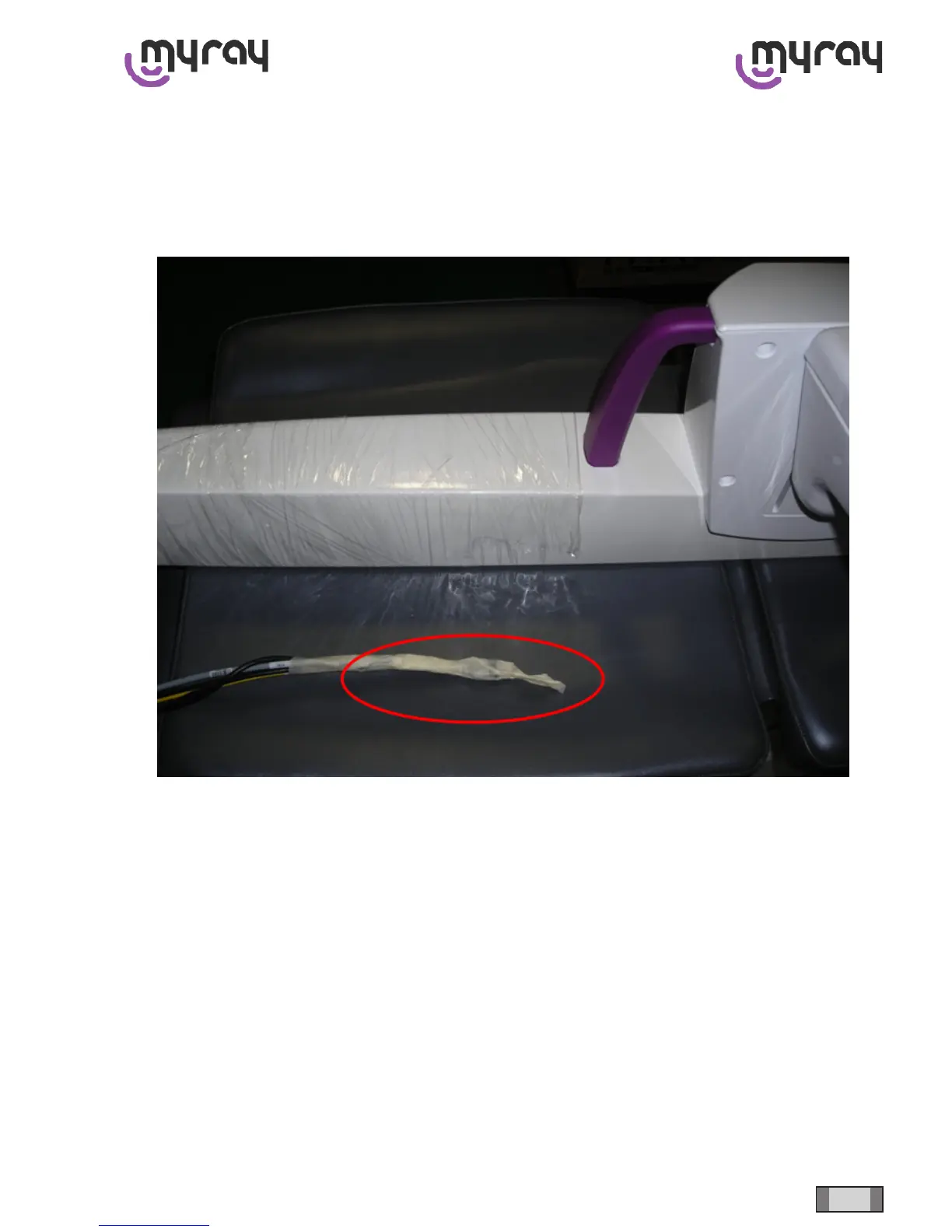

Before proceeding with the installation, prepare the cables for the column passage by tying them one to each other,
using scotch tape and aligning them in order to reduce as much as possible their dimension.
WARNING: do not use the handles on the console side to lift and move the arm during the installation procedure.
Always grab the arm by the metal frame.
