0.7 CBCT panel installation

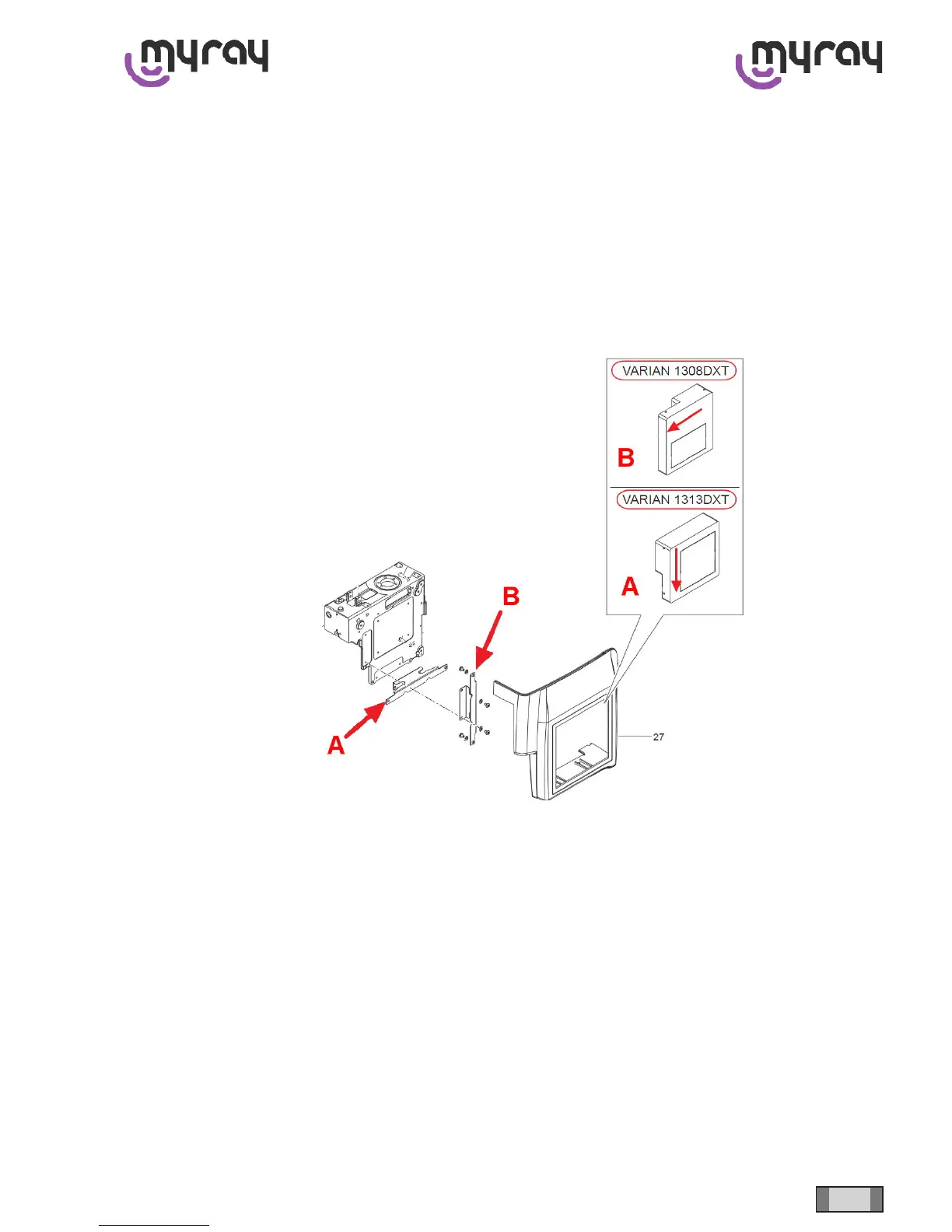

The position in which to mount the panel depends on the size of the sensor. Both models have the same external di-
mensions.
Thepanelwithsensor13X13(A)(cod.70870150-maximumeldofview11X8)isinstalledwiththeinput/outputcon-
nectorsfacingtheoor.
Thepanelwithsensor13X8(B)(cod.70870151-maximumeldofview11X5)isinstalledwiththeconnectorsfacing
horizontally towards the lead through-slots on the support plate.
