0.1 Transport with fork-lift (COD. 96600536)

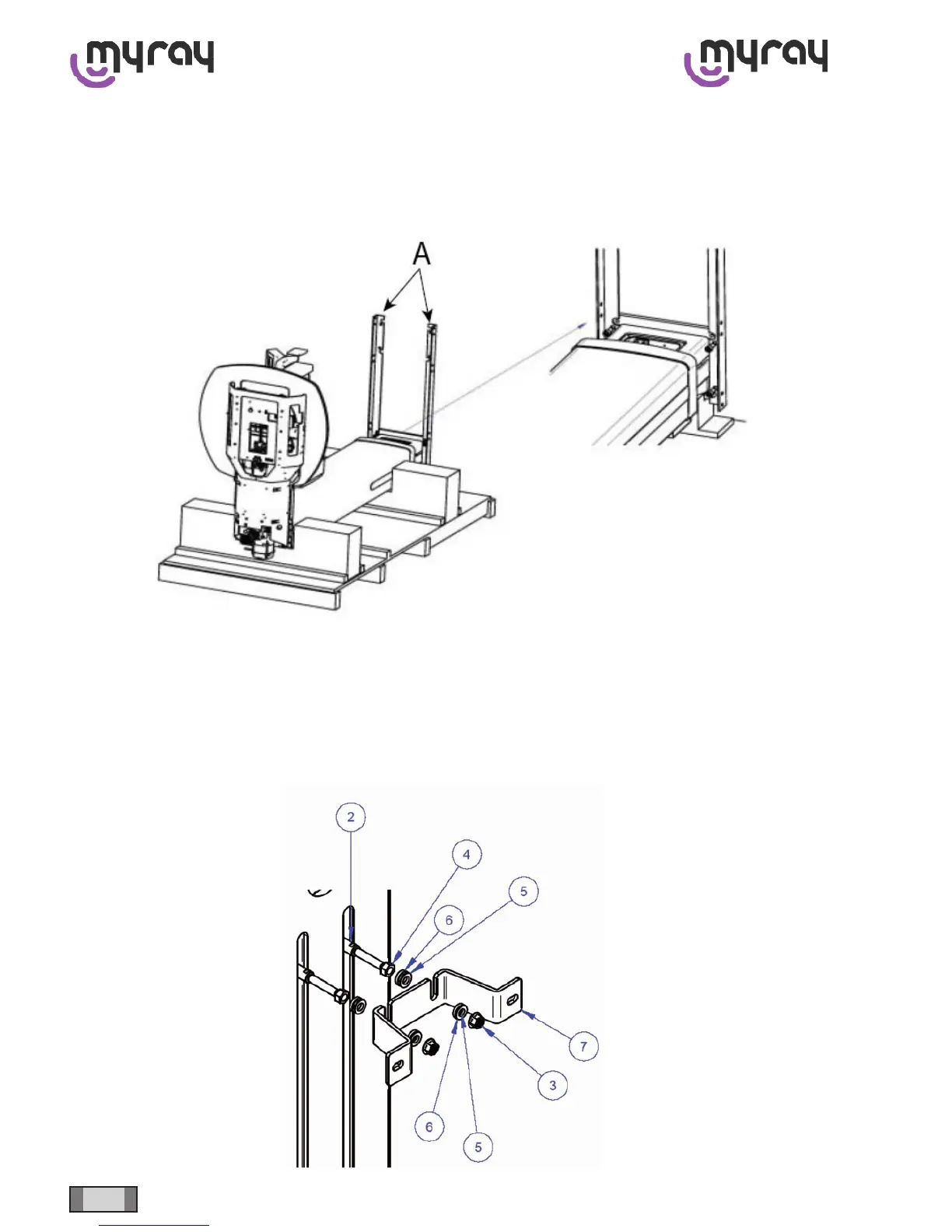

Open the package and take out the box that contains the covers and box. Cut the two straps that secure hyperion to
the wooden pallet. Screw on the feet (if the apparatus is installed without the base); secure the hand truck’s brackets
(A) to the base of the x-ray unit with the screws provided.
Mount the brackets on the base of hyperion screwing them onto the metal support.
The brackets are to be secured by screwing two bolts in holes “B”. The feet or bolts for securing the additional mounting
plate can be placed in holes “C”. In this case, slots C” allow the bracket to be correctly installed with the bolts of the
plate still in place.
