hyperion - TECHNICAL MANUAL

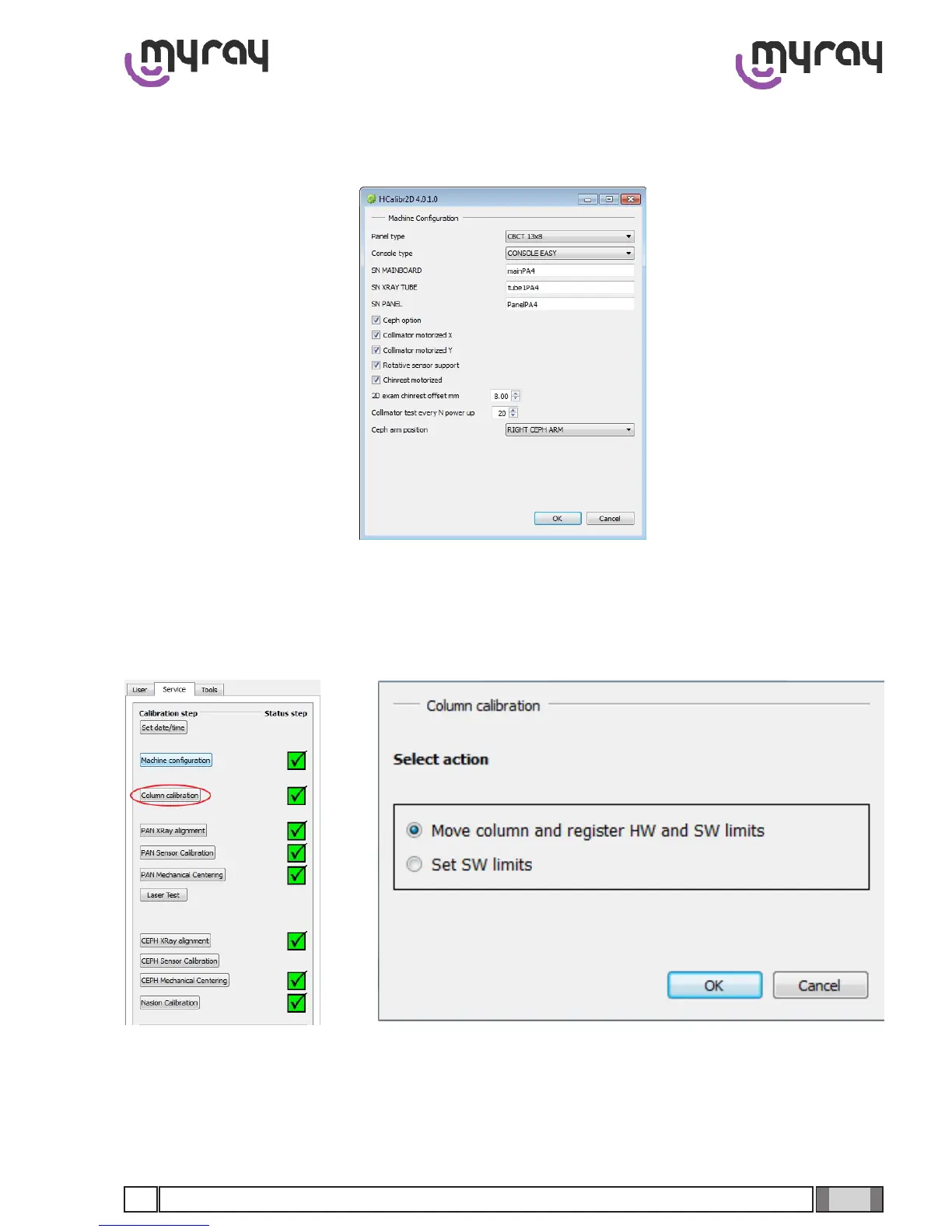

Thiswindowshowsthedeviceconguration.Checkifcurrentsettingarecorrect.OncedonesavebyselectingOK.
2.3.2 Column calibration
Click on “Column calibration” and select “Move column and register HW and SW limits”
Manually move the column all the way down,measure the height of the bite from the ground and insert it in the window-
