Remember to place the slide’s brackets on top of the post’s metal base. If they are mounted under the base, theY will
bebetweenthepostandoor,makingitimpossibletoremovethemoncetheslideislowered.
Lift the panoramic unit so that it is vertical, mount the two crossbars with wheels (B) and loosen the screws (C) to raise
hyperion’s base so that the slide is able to move. Be extremely careful when moving the equipment.

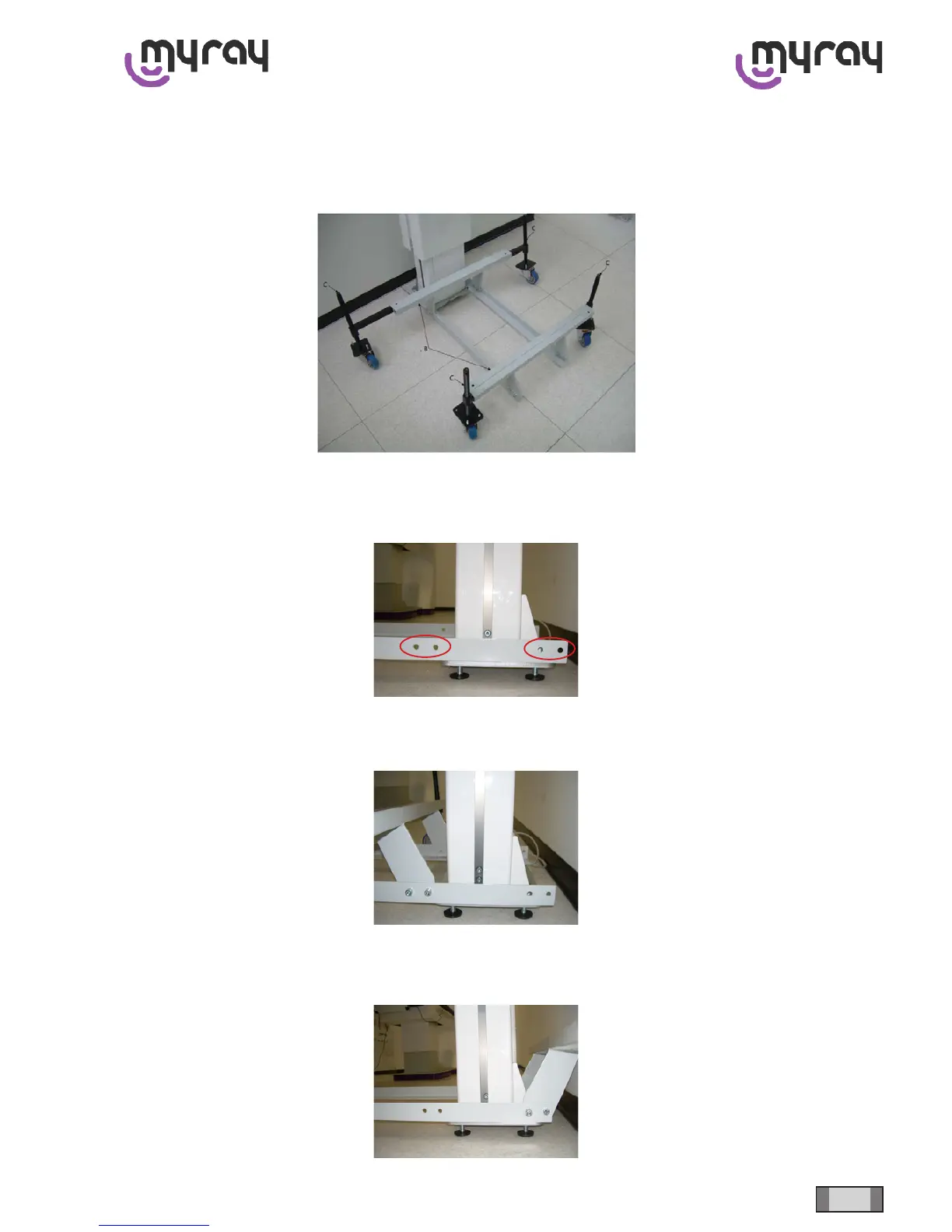

Thecrossbarswithwheelsnearthepostcanbeinstalledintwopositions:inthefrontorbackofthepost.Thegures
below illustrate the two positions of the holes and crossbar correctly installed.
Crossbar installed in the front
Crossbar installed in the back
