11
EN
hyperion - TECHNICAL MANUAL

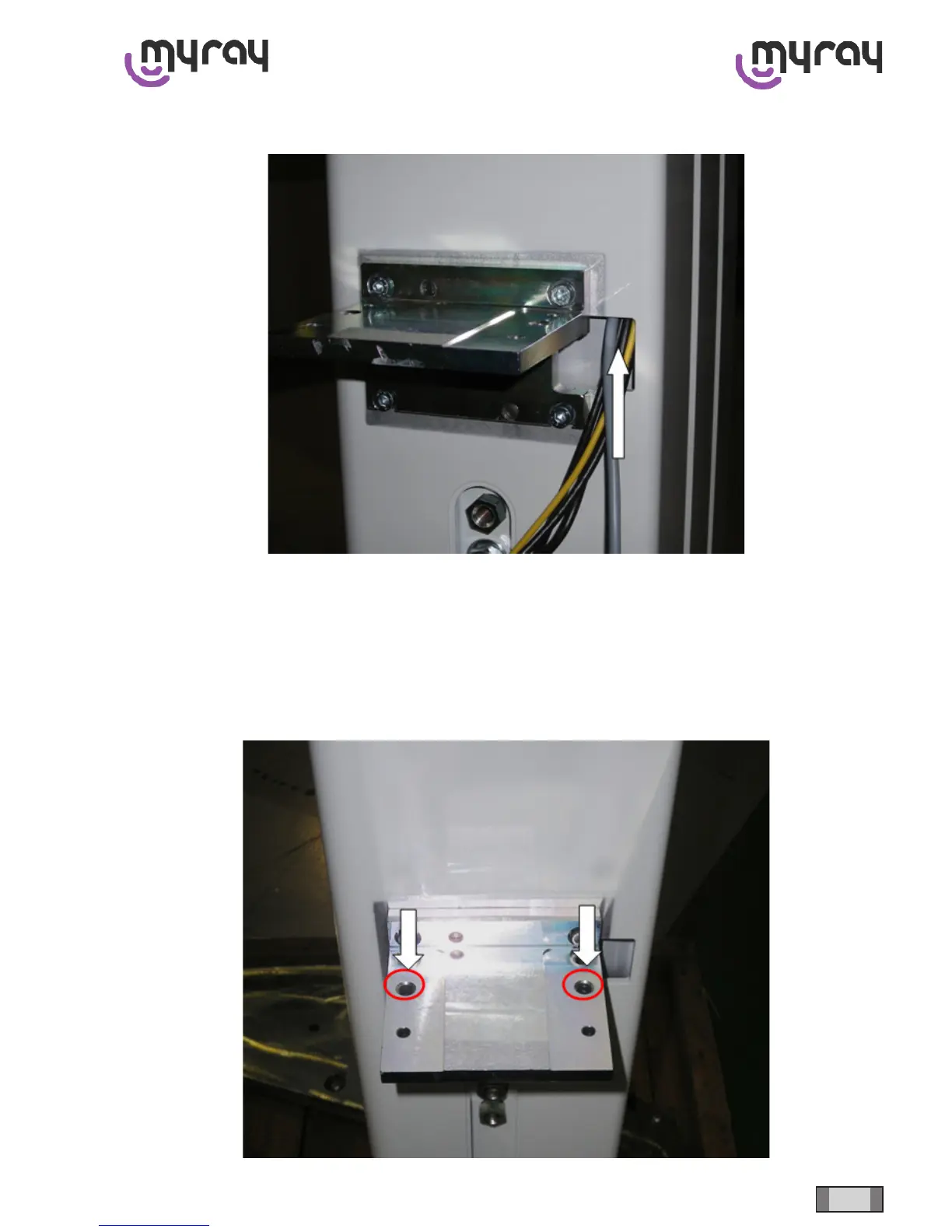

Pass the cables in the apposite hole next to the shelf and push them to the upper edge of the column.
The arm must be aligned cautiously to the shelf on the column side. Inside the arm there are two cylindrical pins that
are going to match the holes highlighted here below once the arm is correctly aligned.
WARNING:thepinscannotcarrytheweightofthearm,soitisnecessarytomanuallyholdthearmuntilitisxedwith
the appropriate screws.
