hyperion - TECHNICAL MANUAL

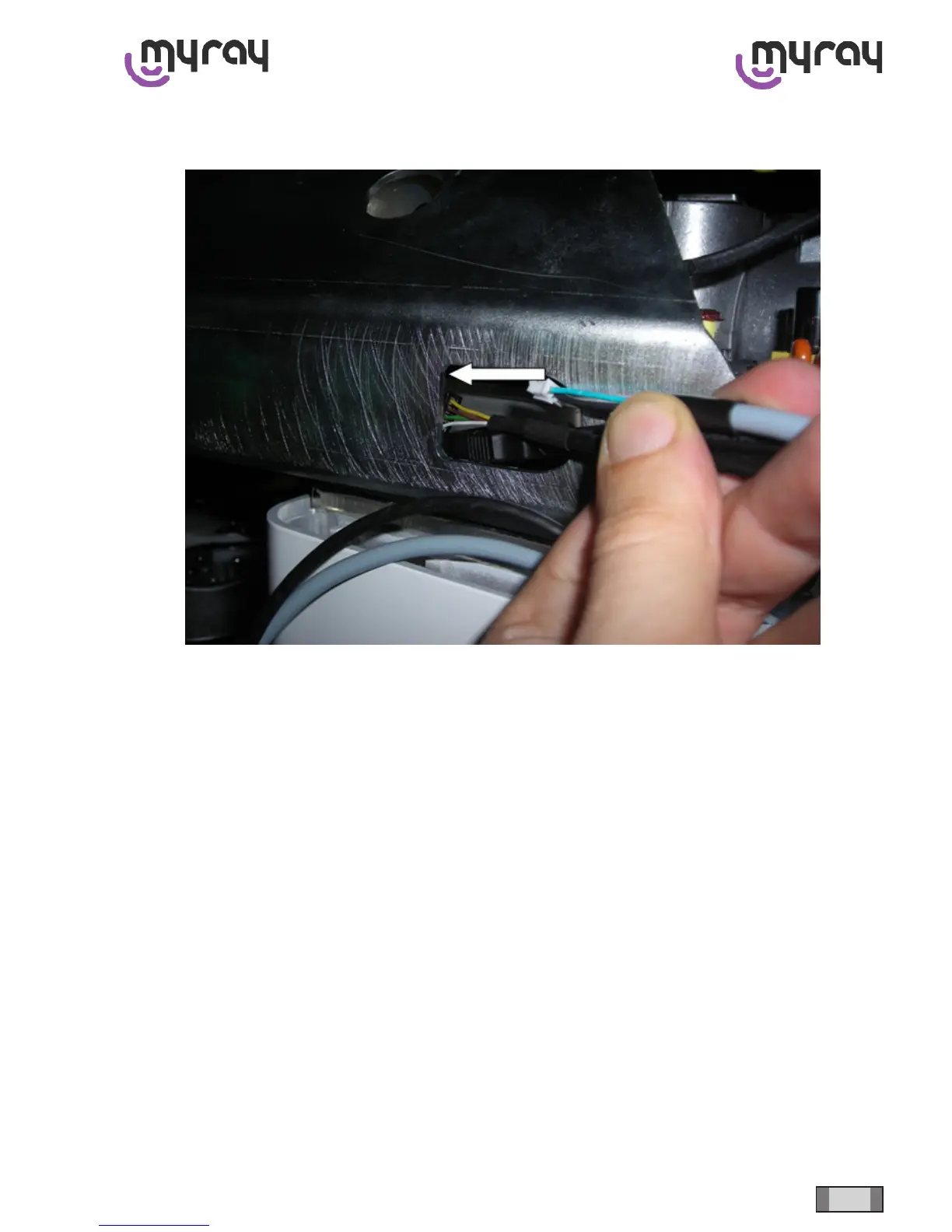

Pass all the other cables in the lateral hole of the overhead slot and connect them to the main board.
Connections from patient arm to Main board:
- Console board power supply (K39 connector)
- Console board CAN-bus (KCB3 connector)
- USB cable (K19 connector)
WARNING: Pay special attention in positioning excess cable in order to avoid contact with the moving cable harness
during cinematic group movements for exams or reset.
