22
EN
hyperion - TECHNICAL MANUAL
In the subsequent assembly stage the presence of a second person will be necessary to support the arm while the
wiring is arranged inside the column.

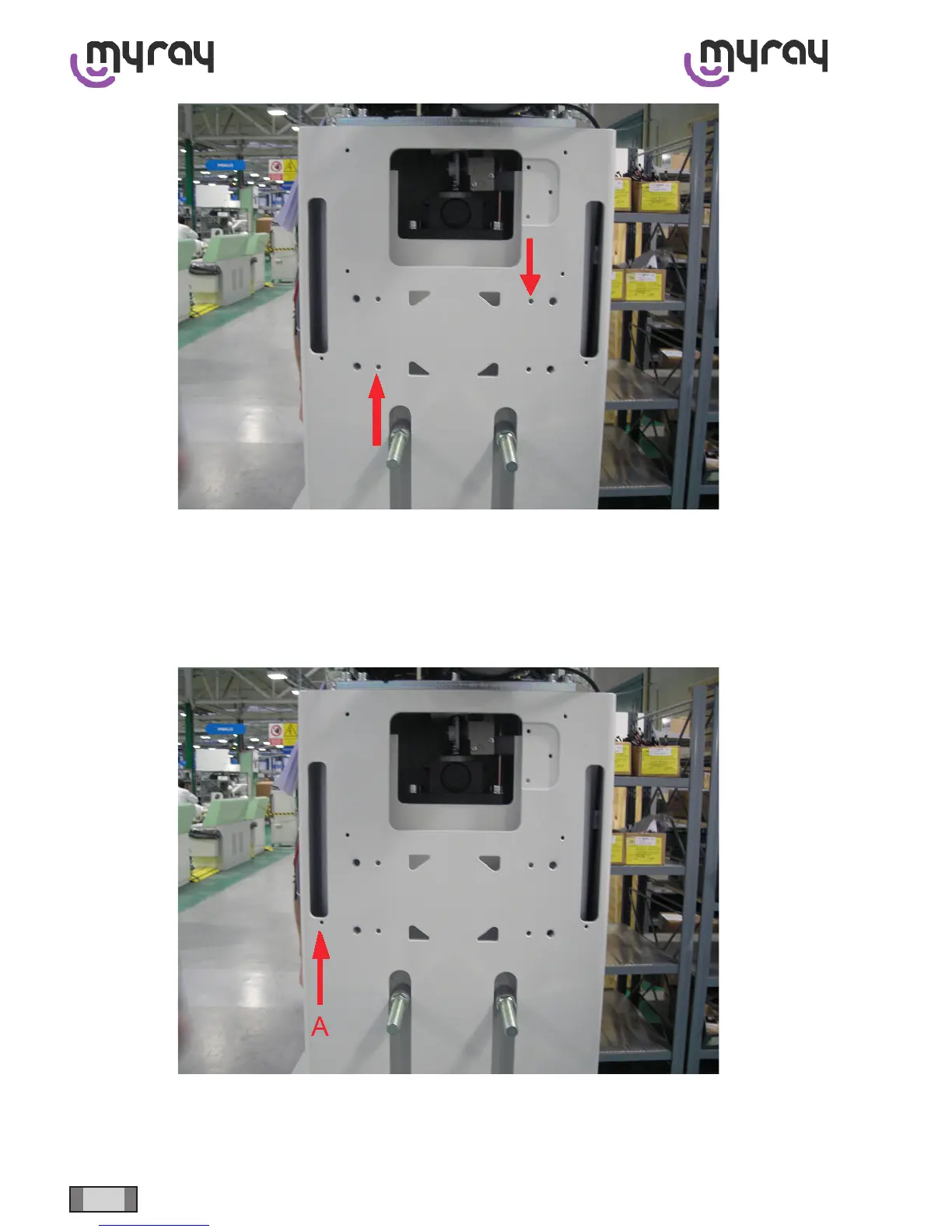

Liftthearmandpassthewiringthroughtheslit(A)onthecolumn;rstinsertthewidestleads/wires(K15-Greenand
KCB3-Grey) then insert the four remaining wires (labels K13/K37/K23/K26) in the same slit.
Whenallthewireshavereachedtheupperextremityofthecolumn,usethepreviouslyttedplugstopositionthearm
andsecureittothecolumnwiththefourxingscrews.
