Pass wires K13/K37/K23 behind the column motor and then inside the side-member until the mainboard on the side
opposite the patient arm is reached.
Connect the cephalometry arm leads to the corresponding connectors on the mainboard (97660604). Use the labels on
the leads as a reference to position the connectors correctly.
Connect the earth lead on the appropriate area to the side of the column motor.
Important: be particularly careful when laying the wires in the area around the mainboard. Use cable ties to secure the
wires/leads on the holes in the metallic side member so that any excess loose wiring does not interfere with the mobile
chain (A) during rotation/transfer of the mobile part. Also pay special attention to the LVDS (K15) lead and secure it with

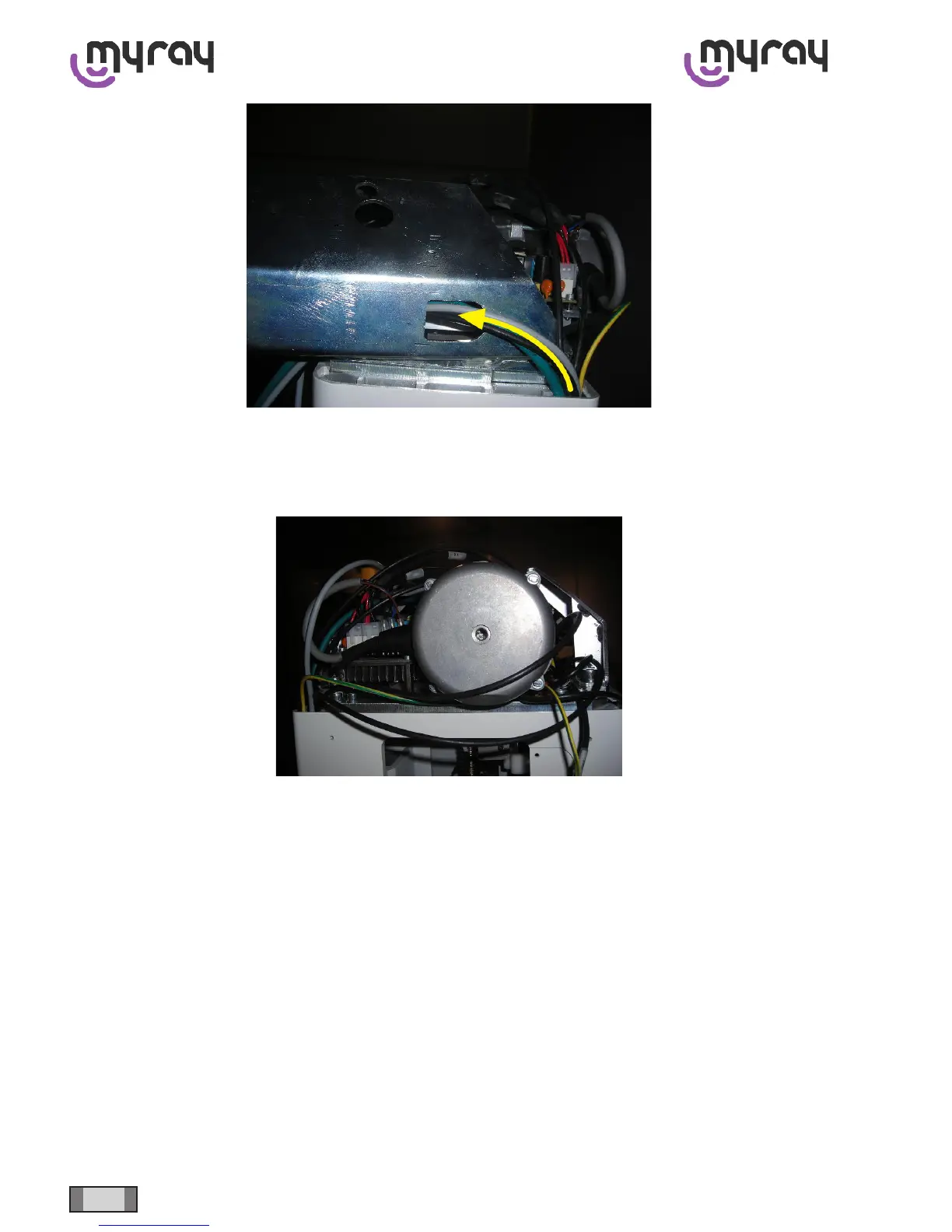

cable ties to keep it away from any moving parts. For recommended K15 lead anchoring points see the image below.
