7197 Series II Owner’s Guide Chapter 6: Commands
August 2011
105
Defines and enters downloaded characters into RAM or Flash. The command may be used
to overwrite single characters. User-defined characters are available until power is turned
off or the Initialize Printer command (1B 40) is received.
Any invalid byte (s, c1, c2, n1) aborts the command.

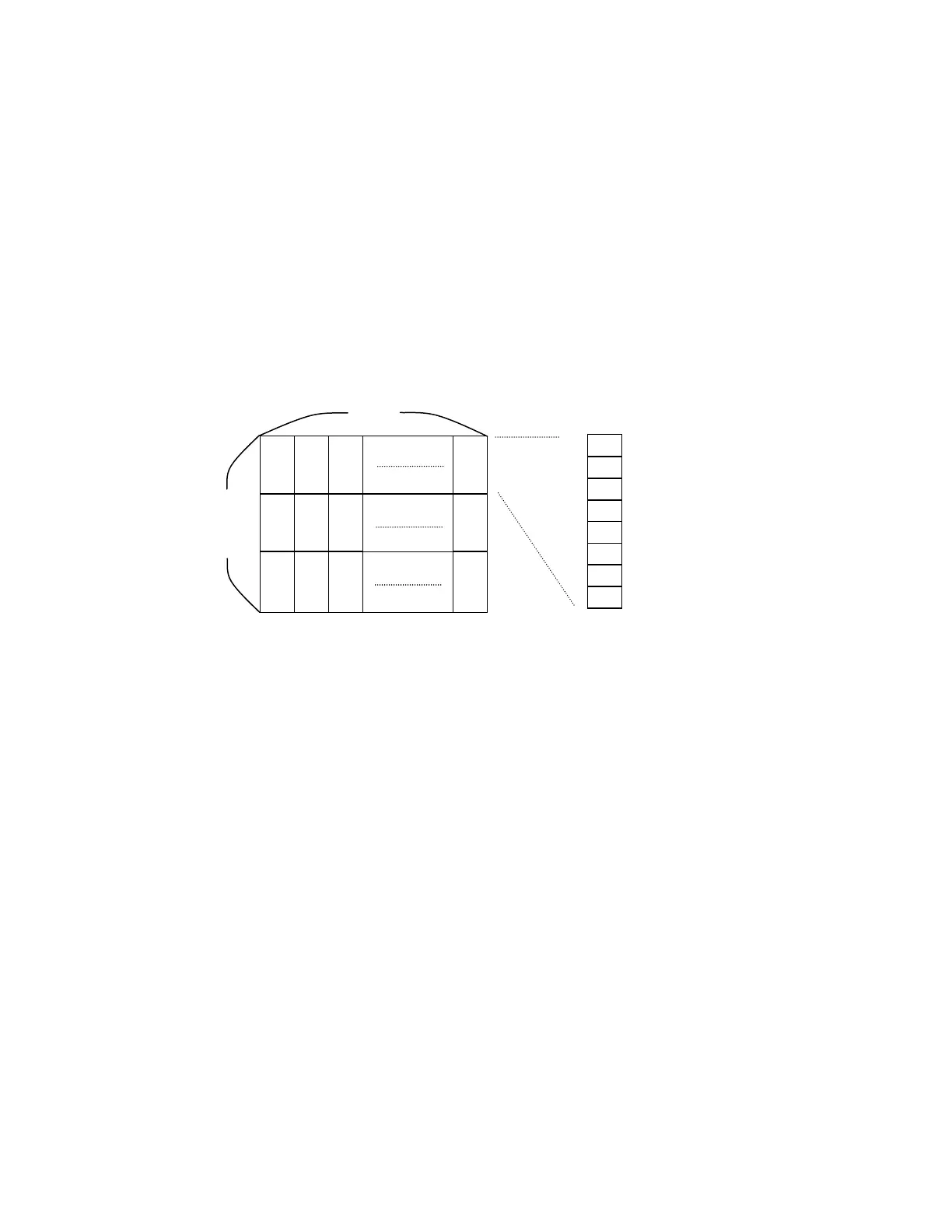

The command clears bit image logo data from RAM. The illustration below provides a
sample of a character cell.
Defining User-Defined Characters
Defines and enters downloaded characters into RAM.
Values and Ranges:
c = the ASCII codes of the first (c1) and last (c2) characters respectively
c1 = Hex 20-FF (Hex 20 is always printed as a space)
c2 = Hex 20-FF (Hex 20 is always printed as a space)
To define only one character, use the same code for both c1 and c2.
n = the number of dot columns for the nth character as specified by n1 ... nn
n = 1-10 (standard pitch), 12 and less accepted but ignored
n = 1-8 (compressed pitch), 12 and less accepted but ignored
d = the column data for the nth character as specified by d1 ... dn
The number of bytes for a particular character cell is 3 x n1.
The bytes are printed down and across each cell.
Related Information:
See 1D 22 n (Select Memory Type Where to Save User-Defined Fonts.)
d1 d4 d7
d2 d5
d8
d3 d6 d9
MSB
LSB
d
n
x
24 dots
(8 x 3)
To Next Page
