7197 Series II Owner’s Guide Appendix B: Print Characteristics

220 Februrary 2012

Appendix D: Print Characteristics

Character Size

This section shows the dot pattern for characters printed on the receipt station.

Receipt Station

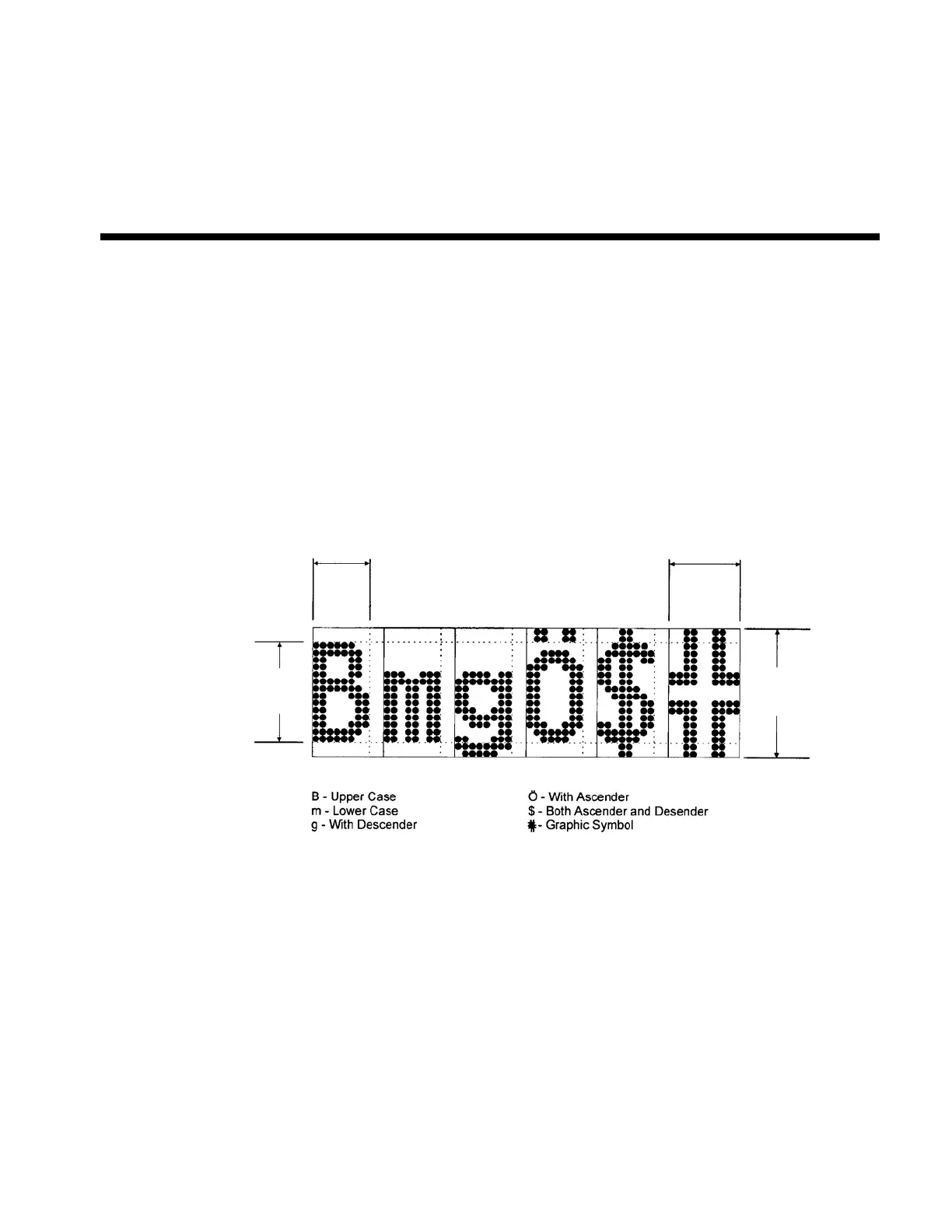

The following two illustrations show the dot patterns of sample characters for standard

pitch (15.6 CPI) and compressed pitch (20.3 CPI). Note that compressed pitch uses fewer

dots horizontally than standard pitch.

Standard Pitch

11 Dots

1.38 mm

.054 in.

19 Dots

2.38 mm

.094 i

13 Dots

1.63 mm

.064 in.

24 Dots

3.00 mm

.118 in.

203 DPI, 15.6 CPI Pitch (Standard)
