7197 Series II Owner’s Manual Chapter 2: Setting Up and Using the Printer
32 September 2011

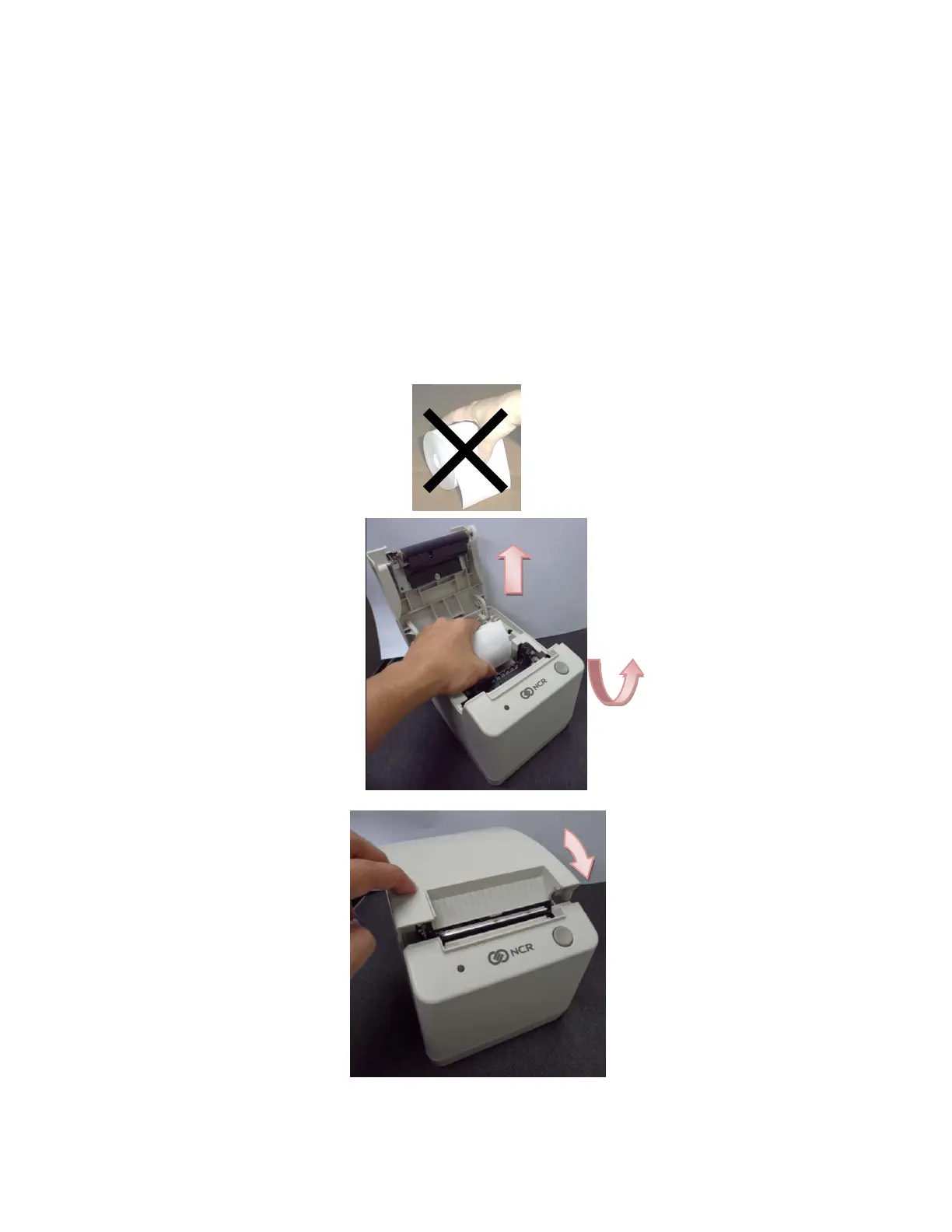

Loading the Paper Roll
Note: Tear off the end of the new roll so that the edge is loose.
1. Place the new roll in the bin with a little extra paper extending over the front.
Be sure the paper unrolls from the bottom of the roll. Otherwise the paper will not
be printed on because the thermal coating will be on the wrong side.
2. Close the receipt cover.
3. Remove the excess paper by tearing it against the tear-off blade.
1
2

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NCR 7197 II SERIES and is the answer not in the manual?

NCR 7197 II SERIES Specifications

General IconGeneral
Print TechnologyThermal
Print MethodDirect Thermal
Print Resolution203 dpi
Paper Roll Diameter83 mm
Power Supply24V DC
Resolution203 dpi
Paper Width80 mm
InterfaceUSB, Serial
