7197 Series II Owner’s Guide Appendix B: Print Characteristics
222 Februrary 2012
For 58 mm Paper
The receipt station centers characters (standard pitch and compressed pitch) and graphics
on an 58 mm wide (2.28 inches) receipt.
Standard pitch: 13 x 24 dots in character cell, 32 characters (columns) per line
Compressed pitch: 10 x 24 dots in character cell, 42 characters (columns) per line
Double byte character: 24 x 24 dots in character cell, 17 characters (columns) per line
Graphics: 424 addressable bits
The minimum print line height is 24 dots for characters and 24 dots for graphics. The
standard print line height is 27 dots (3.38 mm, .133 inches) for characters (with three extra

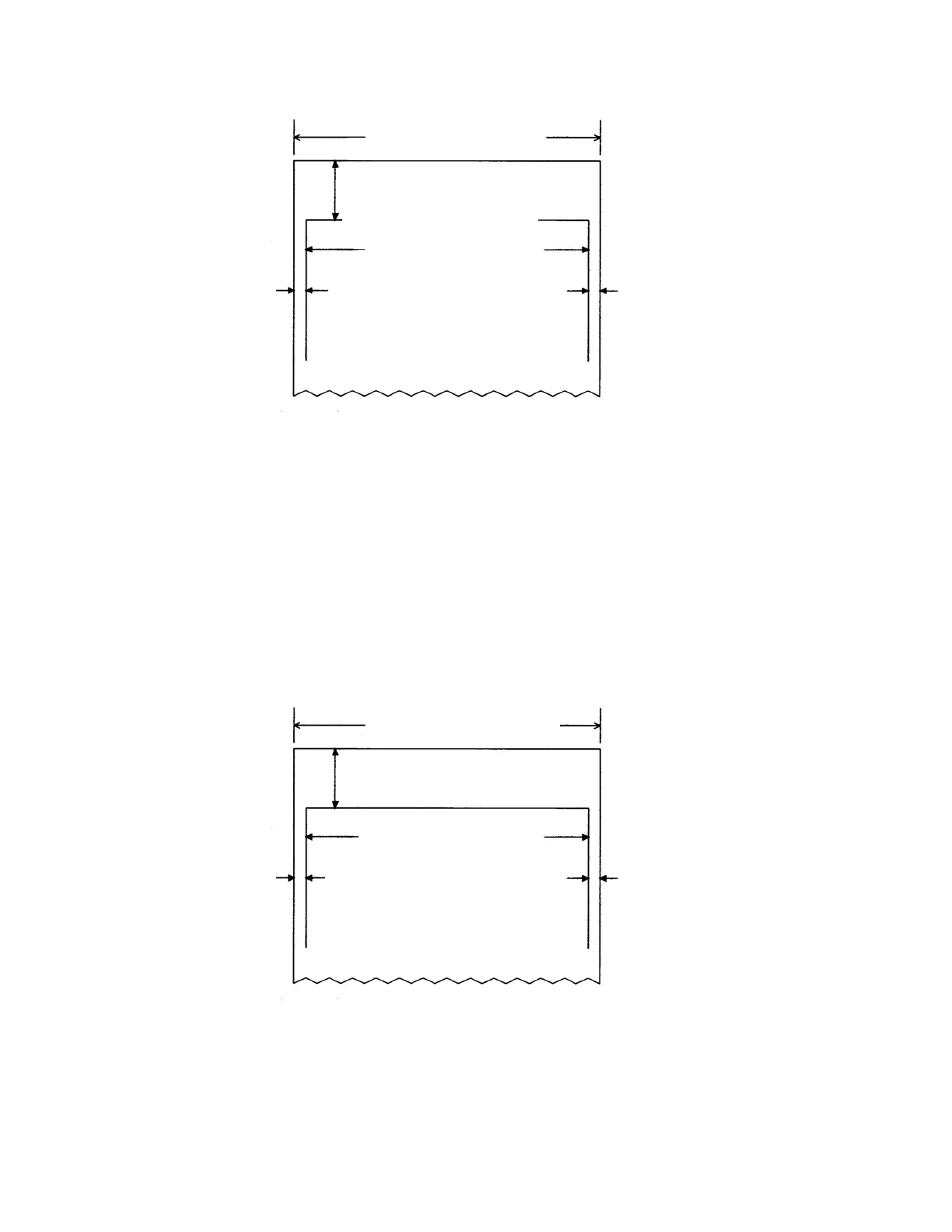

dot rows). See the following illustration (not to scale).
Top Margin, 17.5 mm (.69 in.)
Minimum
Print Zone, 72.10 mm (2.84 in.)
576 Dots
Left and Right Margins, 3.95 mm (.16 in.)
Paper Width = 80 mm (3.15 inc.)
Top Margin, 17.5 mm (.69 in.)
Minimum
Print Zone, 53.05 mm (2.09 in.)
424 Dots
Left and Right Margins, 2.47 mm (.10 in.)
Paper Width = 58 mm (2.28 inc.)
